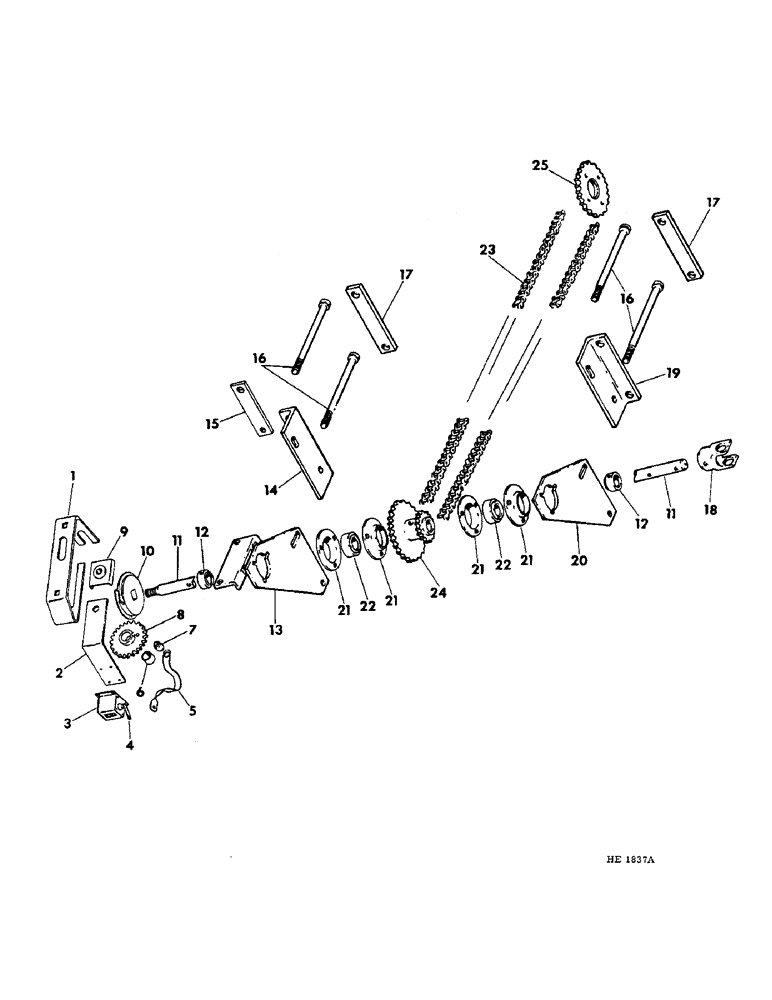

Запчасти Case IH 300 (52) - TWO SPEED SEEDING DRIVE, BUILT 1974

1

596933R1

BRACKET

land measure

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 hex-lock

2шт.

2

599560R1

BRACKET

SUPPORT, land measure counter

1шт.

3

609535R91

COUNTER

land measure, Includes 1, 816878C1 arm w/screw

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

1/8 x 7/16 brs b-hd small

4шт.

4

816878C1

ARM

W/SCREW LAND MEASURE COUNTER

1шт.

5

598970R1

SPRING

land measure counter

1шт.

17058R1

PIN, 3/32 x 3/8 cotter

1шт.

6

599705R1

SPACER

land measure gear

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 hex-hd

1шт.

611346R1

WASHER

.406 x .875 x .054

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

609534R2

SPACER

counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

no. 10 x 1-1/4 slt-rd-hd

1шт.

607893R1

WASHER

.203 x .500 x .054

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

816099C1

GEAR

22T land measure, 12 ft. machine

1шт.

8

815185C1

GEAR

34T land measure, 16 ft. machine

1шт.

9

596936R1

SUPPORT

land measure gear

1шт.

10

604420R1

GEAR

WORM, land measure gear 12 ft. machine

1шт.

10

596914R1

GEAR

WORM, land measure gear 16 ft. machine

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

811529C1

SHAFT

two speed drive, For service order 1, 813133C1 shaft and relocate land measure to feed shaft

1шт.

12

455102R11

COLLAR

ASSY., bearing locking, Includes 1, 102569 screw

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup-pt-hdls set

2шт.

13

811474C1

SUPPORT ASSY., drive front for service order 1, 811437C1 support and relocate land measure to feed shaft

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

811448C1

ANGLE

drive support RH

1шт.

15

812533C3

BAR, throwout cam stop

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8-16 x 2-1/2 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

1/2-13 x 7-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

17

811451C1

BAR

support clamping

2шт.

18

597147R1

YOKE

universal

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

19

811447C1

ANGLE

drive support LH

1шт.

20

811437C1

PLATE, drive rear support

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3/8 x 1-1/2 hex-hd

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20601R1

WASHER

.531 x 1.250 x .090

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21

462360R1

FLANGED BEARING

RETAINER, bearing flangette

4шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg

6шт.

134238R1

WASHER

.344 x 1.000 x .054

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, drive shaft

2шт.

23

CHAIN ASSY., use 23 links of 1-1/4 inch roller chain from a 10 ft. roll 569089R91 and add one offset link 456929R91 and one connecting link 456980R91. Assemble in sequence of two regular links, One offset link, 21 regular links and one connecting link

1шт.

24

811459C1

SPROCKET ASSY.

two speed drive

1шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

25

811466C1

SPROCKET ASSY.

SPROCKET, 24T driven, For service parts refer to grain drive clutch

1шт.
