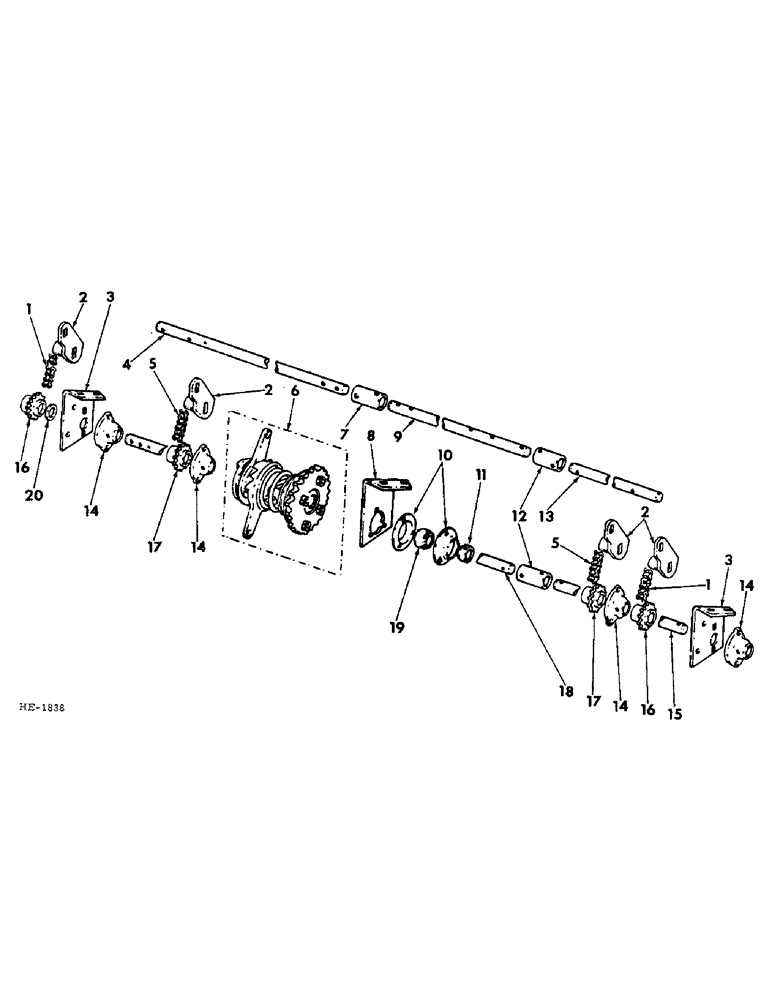

Запчасти Case IH 300 (50) - MAIN DRIVE SHAFT

1

CHAIN ASSY., grain drive, Use 19 links of 1 inch roller chain from a 10 ft. roll 569088R91 and add one connecting link 457113R91 and two offset links 457114R91

2шт.

2

596954R1

TIGHTENER, grain fertilizer drive chain

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

596939R1

SUPPORT, drive shaft hanger

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

619856R1

WASHER

.406 x 1.000 x .054

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

596946R1

SHAFT, 16 ft. machine main drive front

1шт.

5

CHAIN ASSY., fertilizer drive, Use 25 links of 1 inch roller chain from a 10 ft. roll 569088R91 and add one connecting link 457113R91 and one offset link 457114R91

2шт.

6

CLUTCH ASSY., grain drive, For service parts refer to grain drive clutch

1шт.

7

596951R1

COUPLING

16 ft. machine main drive shaft

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 std hd dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

8

812632C1

SUPPORT, main drive shaft

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

811570C2

SHAFT

16 ft. machine main drive intermediate

1шт.

10

462360R1

FLANGED BEARING

RETAINER, bearing flangette

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

134238R1

WASHER

.344 x 1.000 x .054

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

455102R11

COLLAR

ASSY., bearing locking, Includes 1, 102569 screw

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup pt hdls set

1шт.

12

596951R1

COUPLING

clutch shaft

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 std-hd-dld

2шт.

12

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

13

596948R1

SHAFT, 16 ft. machine main drive rear

1шт.

14

596943R2

BEARING, 12 ft. machine main drive shaft

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 x 7/8 hex hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

97865H

WASHER

.281 x .875 x .054

4шт.

14

596943R92

BEARING ASSY,25.45mm ID

BEARING, 16 ft. machine main drive shaft

6шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 x 7/8 hex-hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

97865H

WASHER

.281 x .875 x .054

4шт.

15

596945R1

SHAFT

12 ft. machine main drive rear

1шт.

16

596952R1

SPROCKET ASSY.

SPROCKET, 8T grain drive

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

17

596952R1

SPROCKET ASSY.

SPROCKET, 8T fertilizer drive

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

591715R1

WASHER

1.031 x 1.500 x .054

2шт.

18

811570C2

SHAFT

12 ft. machine main drive front

1шт.

19

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING, drive shaft

1шт.

20

591715R1

WASHER

1.031 x 1.500 x .054

2шт.
