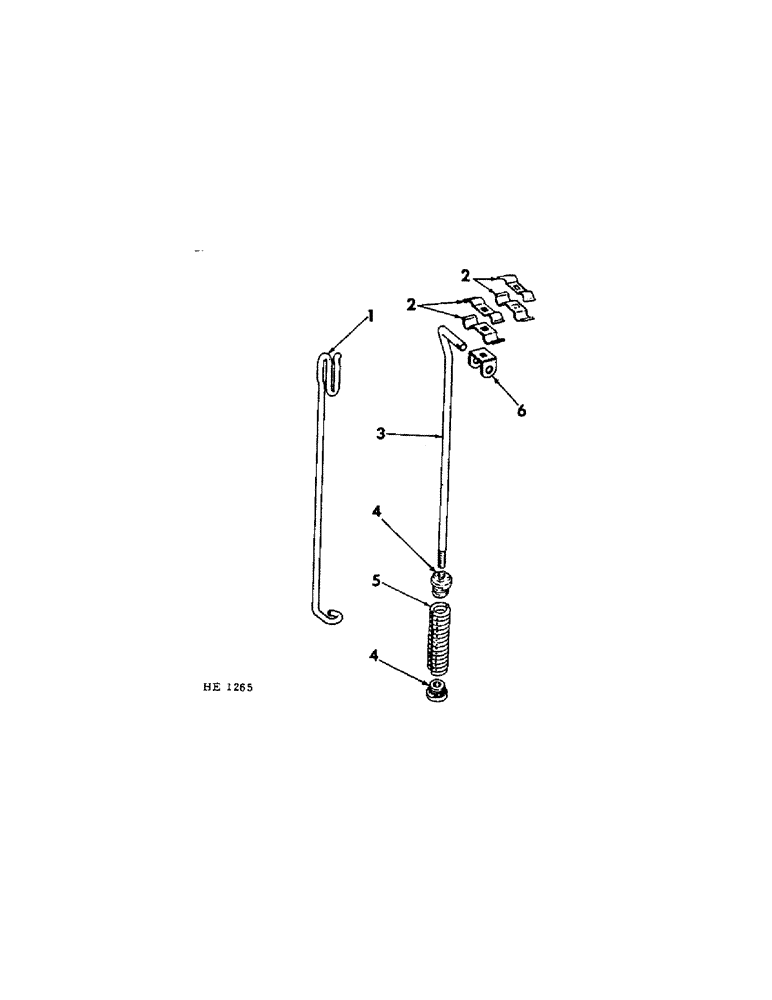

Запчасти Case IH 300 (49) - HYDRAULIC HOSE SUPPORT, FOR USE ON TWO AND FOUR HOSE

1

651793R1

SUPPORT

flexible hose, For use on machines built 1967 season

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex hd

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

2

515030R1

CLAMP

hose support, For use on machines built 1967 season & since

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8-16 x 1-3/4 crg

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

515028R1

ROD

hose support, For use on machines built 1967 season & since

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

SA1378A

PLUG

hose support spring, For use on machines built 1967 season and since

2шт.

5

515031R11

SPRING

ASSY., hose support, Includes 2, SA1378A plug, For use on machines built 1967 season & since

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

515029R1

BRACKET

hose clamp, For use on machines built 1967 season & since

1шт.
