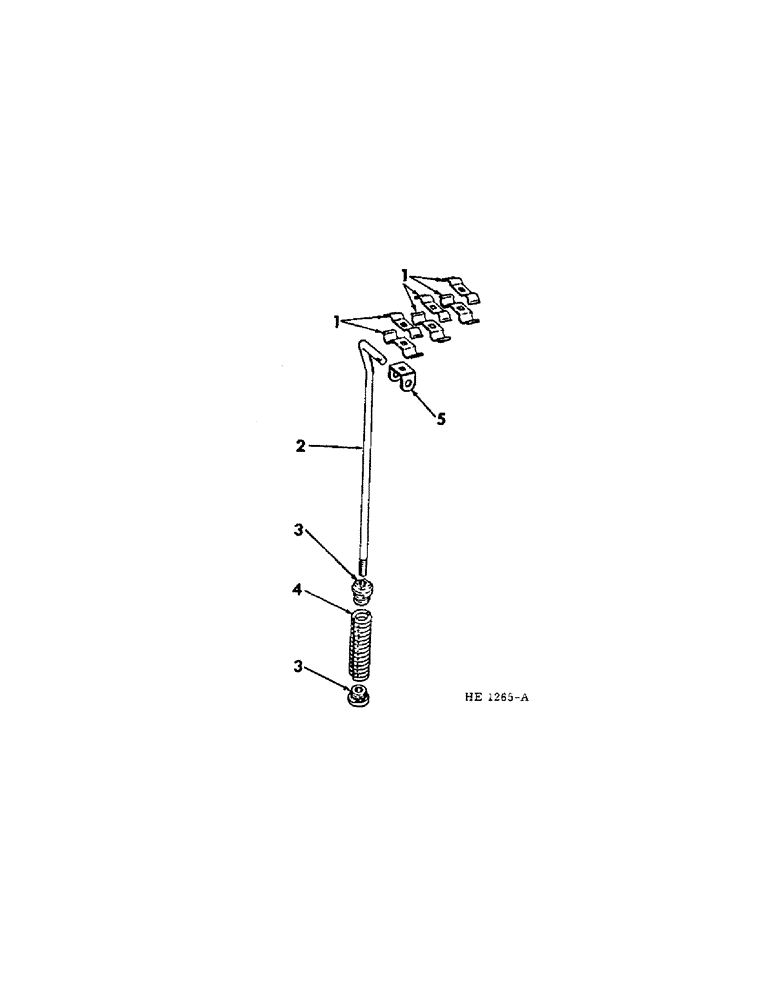

Запчасти Case IH 300 (49[A]) - HYDRAULIC HOSE SUPPORT, FOR USE ON SIX HOSE CONNECTING

1

515030R1

CLAMP

hose

6шт.

27124R1

BOLT,Short NK, 3/8"-16 x 4", G5

3/8-16 x 4 crg, Front

1шт.

27453R1

BOLT,Short NK, 3/8"-16 x 3", G5

3/8-16 x 3 crg, Front machine rear

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

515028R1

ROD

hose support

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

3

811338C1

PLUG

support spring

2шт.

4

813706C1

SPRING

hose support

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

5

515029R1

BRACKET

hose clamp

1шт.
