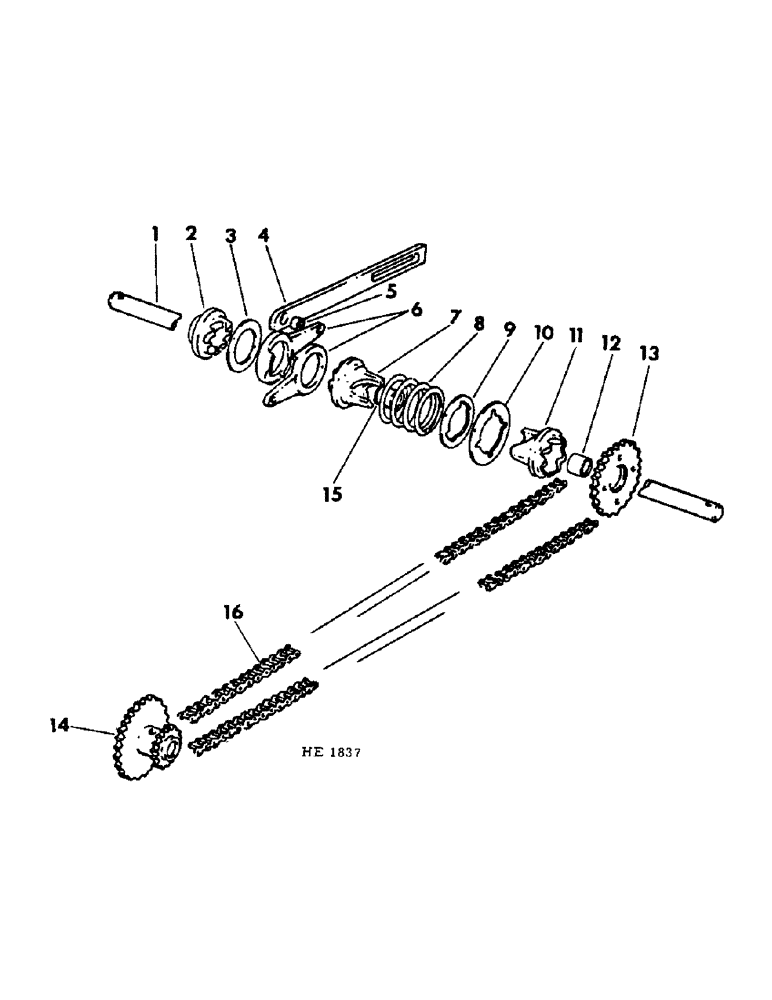

Запчасти Case IH 300 (48) - GRAIN DRIVE CLUTCH

1

SHAFT, main drive, Refer to main drive shaft

1шт.

2

816028C1

CLUTCH

driver

1шт.

N32207

HEADED PIN,3/8" x 3 3/4"

PIN, 3/8 x 3-3/4 std hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

816029C1

WASHER,60.45mm ID x 86.36mm OD x 1.9mm Thk

clutch spring

1шт.

4

811439C1

BAR, clutch cam control

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 hex hd

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 x 1-1/4 hex hd

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

3шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21793R1

WASHER

.656 x 1.250 x .164

2шт.

5

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

control bar pipe

1шт.

6

816030C1

CAM

clutch throwout

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

816027C11

CLUTCH

ASSY., driver, Includes 1, 298401R1 bushing

1шт.

8

816026C1

SPRING

clutch

1шт.

9

816025C1

WASHER

clutch cam

1шт.

10

812616C1

WASHER

sprocket clamping

1шт.

11

816033C11

DRIVE SPROCKET

SPROCKET ASSY., 8T clutch, Includes 1, 289587R1 bushing

1шт.

591715R1

WASHER

1.031 x 1.500 x.054

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

12

289587R1

BUSHING

sprocket

1шт.

13

811466C1

SPROCKET ASSY.

SPROCKET, 24T driven

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

811459C1

SPROCKET ASSY.

two speed drive, For service refer to two speed seeding drive

1шт.

15

298401R1

BUSHING

clutch

1шт.

CHAIN ASSY., 2 speed drive, Use 23 links of 1-1/4 inch roller chain from a 10 ft. roll 569089R91 and add one offset link 456929R91 and one connecting link 456980R91. Assemble in sequence of two regular links, one offset link, 21 regular links and one connecting link

1шт.
