Запчасти Case IH 300 (45) - GANG DISK BEARING HOUSING

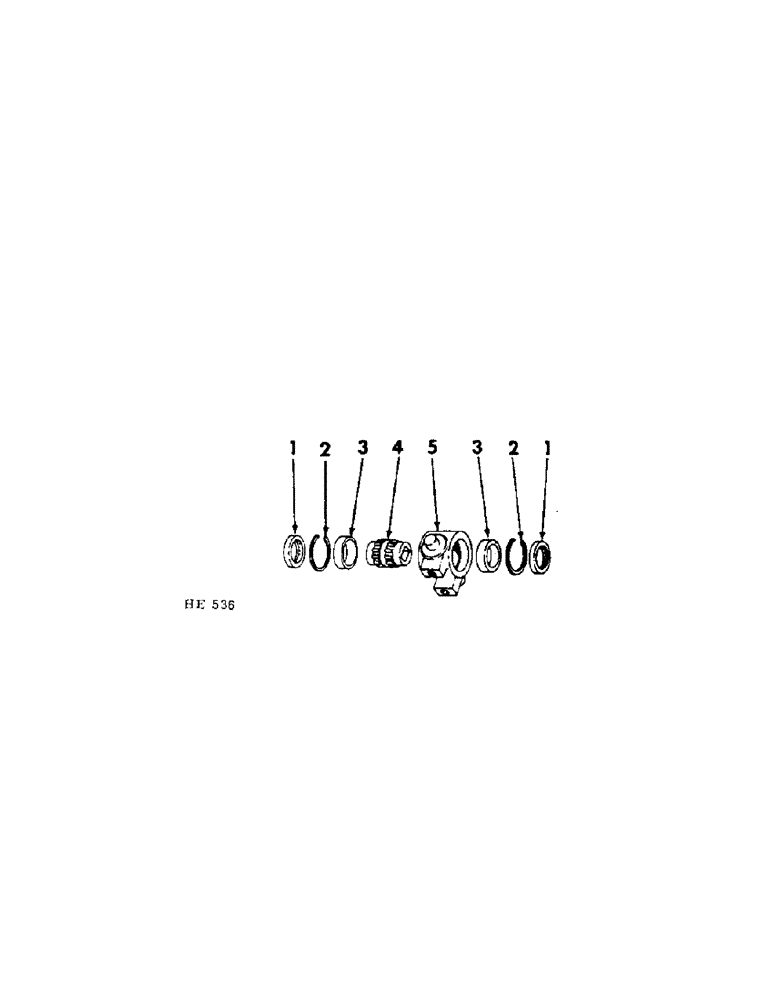

Схема запчастей Case IH 300 - (45) - GANG DISK BEARING HOUSING
1
2
5
2
3
1
4
3

Артикул

Название

Примечание

Количество

596774R11

HOUSING

ASSY., rear, Center & front gang brg, Includes all parts listed, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

1

597546R91

SEAL

gang brg housing oil, 8 used 8 ft. machine, 12 used 12 ft. machine, 16 used 16 ft. machine

1шт.

2

597793R1

SNAP RING,#268, 2.868", Int

RING, gang brg retaining, 8 used 8 ft. machine, 12 used 12 ft. machine, 16 used 16 ft. machine

1шт.

3

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP, gang brg, 8 used 8 ft. machine, 12 used 12 ft. machine, 16 used 16 ft. machine

1шт.

4

469834R91

BEARING ASSY,29.36mm ID x 69.01mm OD x 41.27mm W

CONE, gang brg, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

5

HOUSING, rear, Center & front, Not serviced separately order 596774R11 housing assy.

1шт.

18425R91

LUBE NIPPLE,1/8"-27 NPT x .83" lg

FITTING, 1/8 lub, 1 per housing, Not part of housing assy.

1шт.

Выбрано товаров: 7
