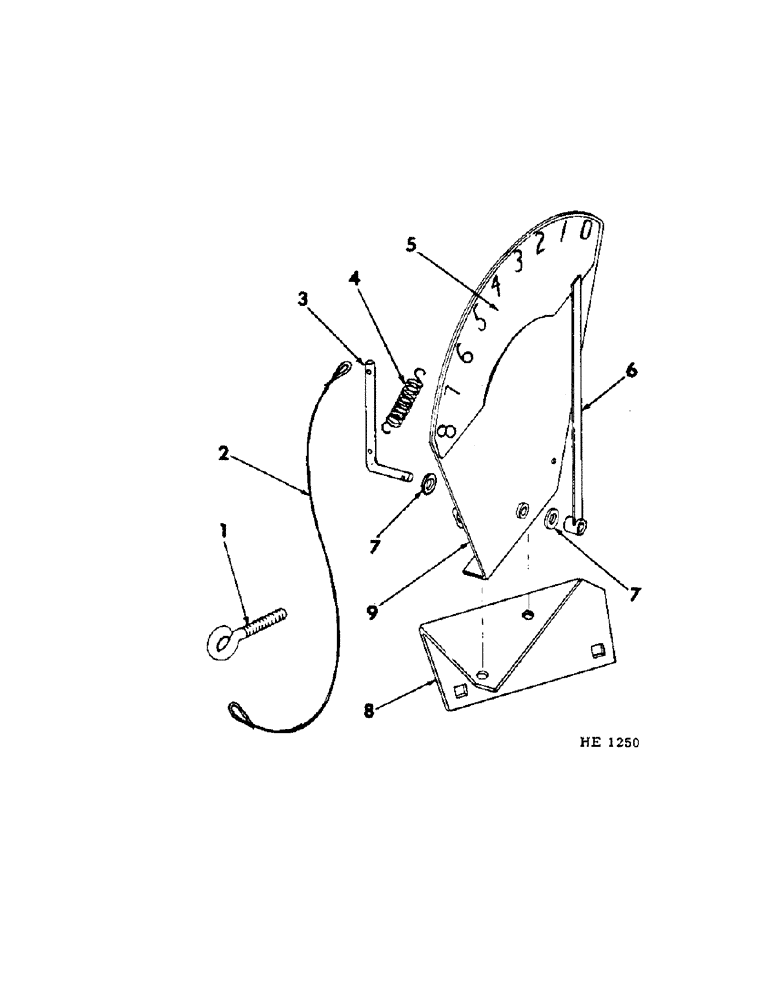

Запчасти Case IH 300 (45[A]) - DEPTH GAUGE ATTACHMENT

1

598991R1

BOLT

rope eye

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

812153C1

ROPE

depth gauge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

598984R1

ROD

gauge spring

1шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

124444R1

SPRING, gauge rod

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

598980R1

PRODUCT GRAPHIC

indicator

1шт.

6

598985R1

STRAP

dial indicator

1шт.

454521

SCREW, 10-24 x 3/16 hdls slt set

1шт.

7

21801R1

WASHER

9/32 x 3/4 x 16 ga

2шт.

8

598978R1

PLATE

BRACKET, depth gauge mounting

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

598979R91

PLATE

depth gauge, Includes 1, 598980R1 product graphic

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 x 1/2 hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
