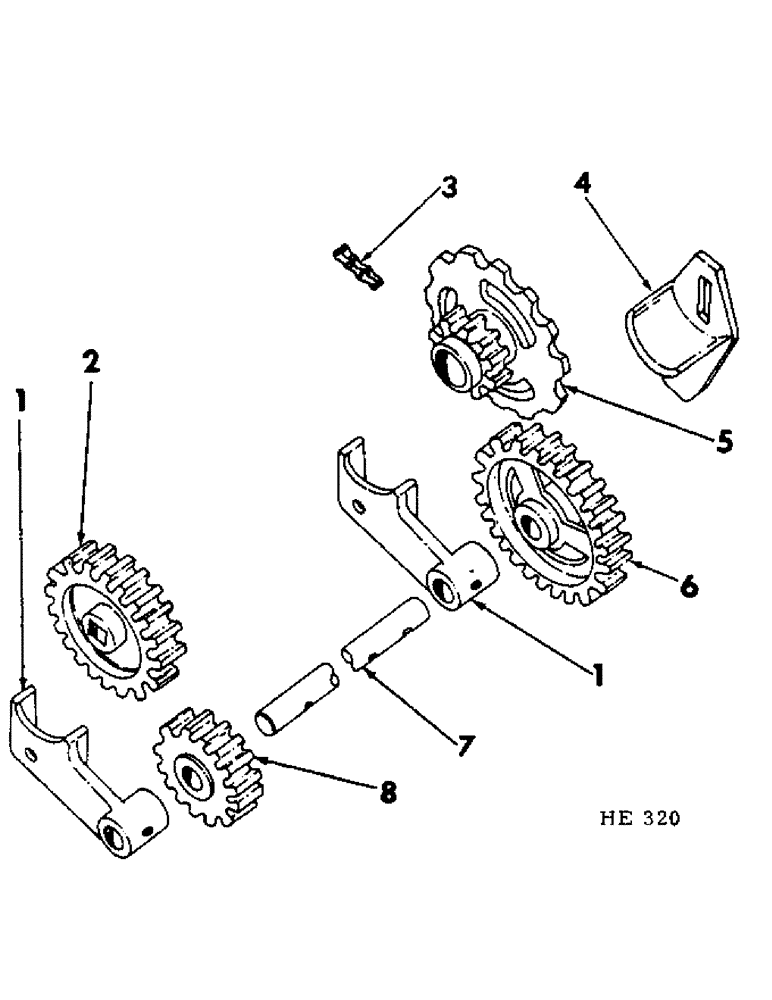

Запчасти Case IH 300 (44) - FERTILIZER SEEDING DRIVE

1

597005R1

BEARING HOUSING,0.755" ID x 1.25" OD x 1.25"

fertilizer drive counter shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8-16 x 1-1/4 no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

603465R2

GEAR

20T feed shaft, For use on machines built prior to March 1969 season

1шт.

2

598996R1

GEAR

16T feed shaft, For use on machines built March 1969 season and since, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW, 5/16-18 x 3/4 hex-soc cup pt set, 1 used per gear

1шт.

3

CHAIN, 1 inch pitch standard fertilizer drive, For service order 1, 569088R91 10 ft. chain, Reduce to 25 links, Add 1, 457113R91 connecting link and 1, 457114R91 offset link

1шт.

4

596954R1

TIGHTENER, drive chain

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

596999R1

GEAR

10T & 15T feed shaft spur

1шт.

271293

PULLEY

FITTING, 5/16-32 str lub

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

21/32 sq hole x 1-1/4 x 16 ga

1шт.

6

603460R1

GEAR

24T fertilizer drive spur

1шт.

U5348

PIN

1/4 x 1-1/2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

597004R1

SHAFT

fertilizer drive counter

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

8

603464R1

GEAR

14T fertilizer drive pinion, For use on machines built prior to March 1969 season

1шт.

8

598997R1

GEAR

18T drive pinion, For use on machines built March 1969 season and since

1шт.

U5348

PIN

1/4 x 1-1/2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
