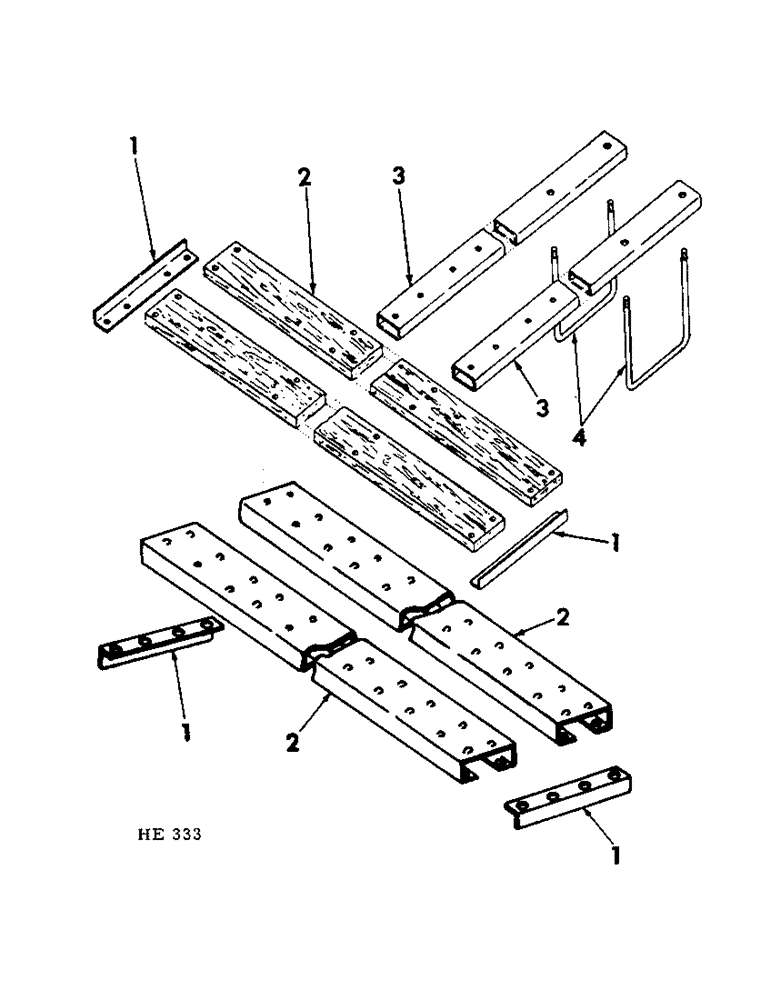

Запчасти Case IH 300 (43) - FOOTBOARD ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
597111R1
ANGLE
foot board end reinforcement
2шт.
18676R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2
BOLT, 5/16-18 x 2-1/4 crg, For use w/wood board
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16-18 x 3/4 hex-hd, For steel
8шт.
120376
NUT,5/16"-18, G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
2
598091R1
BOARD, foot, 8 ft. machine
2шт.
18477R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2
BOLT, 5/16-18 x 3-1/2 type 1 crg
8шт.
120376
NUT,5/16"-18, G5
8шт.
134238R1
WASHER
11/32 x 1 x 16 ga
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
2
597010R1
BOARD
foot, 12 ft. machine, For service order 815973C2 steel
2шт.
18477R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2
BOLT, 5/16-18 x 3-1/2 type 1 crg
8шт.
120376
NUT,5/16"-18, G5
8шт.
134238R1
WASHER
11/32 x 1 x 16 ga
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
2
815973C2
ASSEMBLY
STEEL, foot, 12 ft. machine
2шт.
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
5/16-18 x 2 hex hd
8шт.
120376
NUT,5/16"-18, G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
2
597011R2
BOARD
foot, 16 ft. machine, For service order 815108C2 steel
2шт.
18477R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2
BOLT, 5/16-18 x 3-1/2 type 1 crg
12шт.
120376
NUT,5/16"-18, G5
12шт.
134238R1
WASHER
11/32 x 1 x 16 ga
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
2
815108C2
BOARD
STEEL, foot, 16 ft. machine
2шт.
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
5/16-18 x 2 hex-hd
12шт.
120376
NUT,5/16"-18, G5
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
3
597008R1
TUBE
foot mounting, 2 used 8 & 12 ft. machine, 3 used 16 ft. machine
1шт.
4
597009R1
BOLT
U-BOLT, mounting tube clamping, 2 used 8 & 12 ft. machine, 3 used 16 ft. machine
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 2 used per bolt 1/2"-13, G5
1шт.
460908R1
WASHER
17/32 x 1-1/2 x 11 ga, 2 used per bolt
1шт.
120384
WASHER,1/2"
LOCK, , 2 per bolt 1/2"
1шт.
Выбрано товаров: 33
