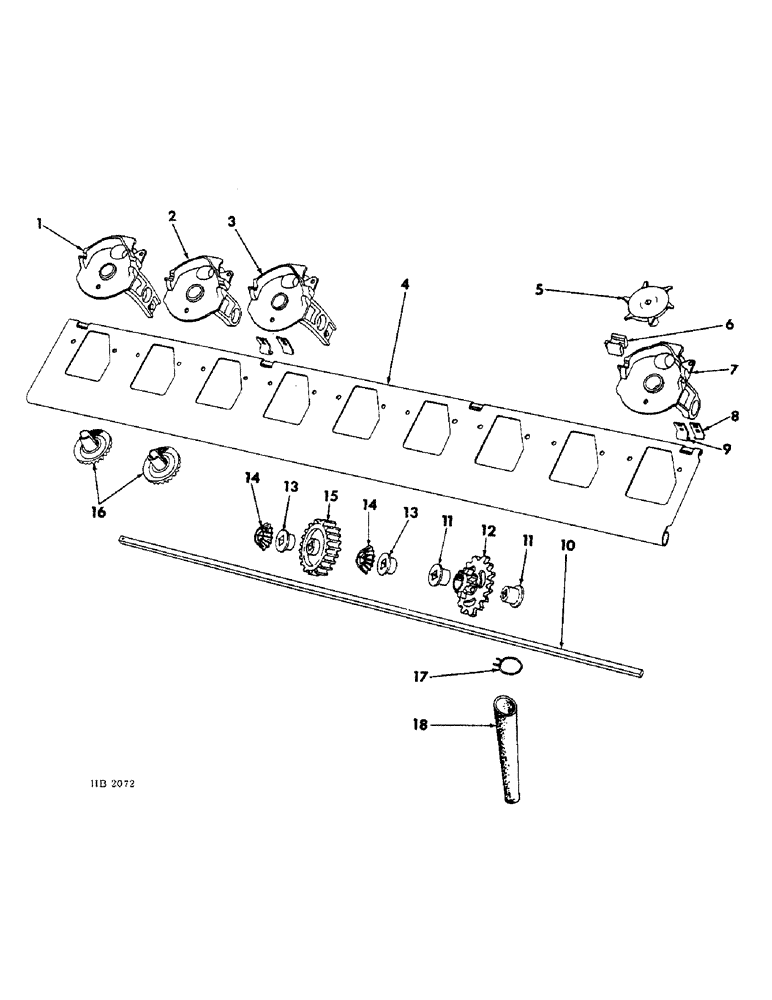

Запчасти Case IH 300 (40) - FERTILIZER FEEDSHAFT
№
Артикул
Название
Примечание
Количество
1
603451R2
PLATE
drop bottom end LH, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
1/4-20 x 5/8 hex-hd, 2 per plate
1шт.
120585
SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"
Slotted Flat Hd, 1/4"-20 x 5/8", 1 per plate
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3 per plate 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , 3 per plate 1/4"
1шт.
2
603454R1
PLATE
W/HANGER, drop bottom, 2 used 8 ft. machine, 4 used 12 & 16 ft. machine
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
1/4-20 x 5/8 hex-hd, 2 used per plate
1шт.
120585
SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"
Slotted Flat Hd, 1/4"-20 x 5/8", 1 per plate
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1 used per bolt 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , 1 used per bolt 1/4"
1шт.
3
603453R2
PLATE
drop bottom intermediate, 12 used 8 ft. machine, 16 used 12 ft. machine, 24 used 16 ft. machine
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
1/4-20 x 5/8 hex-hd, 2 per plate
1шт.
120585
SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"
Slotted Flat Hd, 1/4"-20 x 5/8", 1 per plate
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3 per plate 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , 3 per plate 1/4"
1шт.
4
596993R1
BOTTOM, drop, 8 ft. machine
1шт.
4
604191R11
BOTTOM ASSY., fert hopper front drop, 12 ft. machine
1шт.
4
604192R11
BOTTOM ASSY., fert hopper rear drop, 12 ft. machine
1шт.
4
596993R1
BOTTOM, drop, 16 ft. machine
2шт.
5
602554R11
DRIVE SPROCKET
WHEEL ASSY., fertilizer feed, Includes 1, N62414 pin, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine
1шт.
N62414
PIN,3.96mm OD x 28mm L
wheel shear, 1 per wheel
1шт.
6
603457R1
SPACER
bottom plate, 5 used 8 ft. machine, 12 used 12 ft. machine, 10 used 16 ft. machine
1шт.
6
604130R1
PLATE
SPACER, bottom plate, 10 used 8 & 12 ft. machine, 20 used 16 ft. machine
1шт.
7
603452R2
PLATE
drop bottom end RH, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
1/4-20 x 5/8 hex-hd, 2 per plate
1шт.
120585
SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"
Slotted Flat Hd, 1/4"-20 x 5/8", 1 per plate
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3 per plate 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , 3 per plate 1/4"
1шт.
8
603403R1
STOP, drop bottom hinge front, 6 used 8 ft. machine, 10 used 12 ft. machine, 12 used 16 ft. machine
1шт.
598795R1
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
BOLT, 1/4-20 x 3/4 crg, 1 per stop
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1 per bolt 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , 1 per bolt 1/4"
1шт.
9
604404R1
CLAMP
STOP, drop bottom hinge rear, 6 used 8 ft. machine, 10 used 12 ft. machine, 12 used 16 ft. machine
1шт.
598795R1
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
BOLT, 1/4-20 x 3/4 crg, 1 per stop
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1 per bolt 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , 1 per bolt 1/4"
1шт.
10
596996R1
BAR
fertilizer feed shaft, 8 ft. machine
1шт.
10
596997R1
BAR, fertilizer feed shaft, 12 ft. machine
2шт.
10
596996R1
BAR
fertilizer feed shaft, 16 ft. machine
2шт.
112050
PIN,4.76mm OD x 22.23mm L
3/16 x 7/8 sq end, 1 per bar
1шт.
21867R1
SQ HOLE WASHER,19/32" x 1" x .060", Sq Hole
19/32 sq hole x 1 x 16 ga plain
2шт.
11
596998R1
TRUNNION
spur gear, 2 used 8 ft. machine, 4 used 12 & 16 ft. machine
1шт.
12
596999R1
GEAR
10T & 15T spur, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine
1шт.
219-28
LUBE NIPPLE,5/16" - 32
FITTING, 5/16-32 lub, 1 per gear
1шт.
22810R1
SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole
21/32 sq hole x 1-1/4 x 16 ga, 1 per gear
1шт.
13
603462R1
TRUNNION
bevel pinion, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine
1шт.
14
603463R2
GEAR
PINION, 12T bevel, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine
1шт.
15
603465R2
GEAR
20T feed shaft, For use on machines built prior to March 1969 season, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine
1шт.
83-1316
SET SCREW,Hex Soc, 5/16"-18 x 3/8"
SCREW, 5/16-18 x 3/8 cup-pt-set, 1 used per gear
1шт.
15
598996R1
GEAR
16T feed shaft, For use on machines built March 1969 season and since, 1 used 8 ft. machine, 2 used 12 & 16 ft. machine
1шт.
83-1316
SET SCREW,Hex Soc, 5/16"-18 x 3/8"
SCREW, 5/16-18 x 3/8 cup-pt set, 1 used per gear
1шт.
16
F282C
GEAR
feed shaft bevel, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine
1шт.
17
603591R1
SPRING
delivery tube, 1 per tube
1шт.
18
597000R1
TUBE
fertilizer delivery, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine
1шт.
