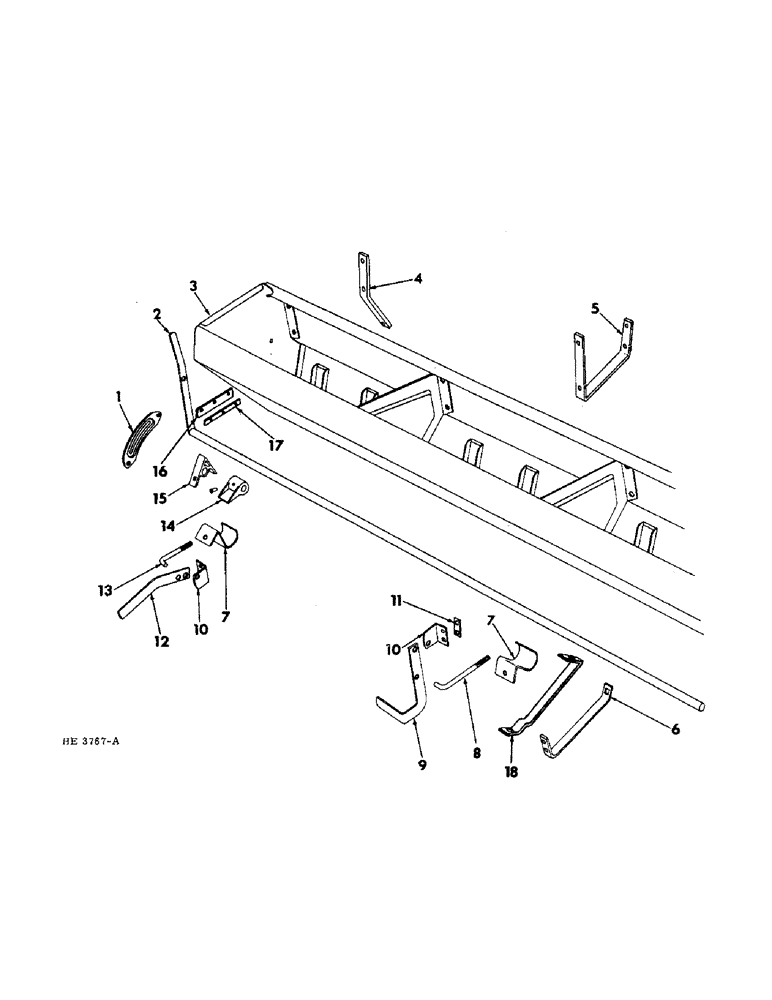

Запчасти Case IH 300 (38) - FERTILIZER HOPPER

1

604129R1

INDICATOR

PLATE, fertilizer indicator, 1 used 8 ft., 2 used 16 ft. machine

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 per plate Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

1

604128R1

INDICATOR

PLATE, indicator LH 12 ft. machine

1шт.

1

604129R1

INDICATOR

PLATE, indicator RH 12 ft. machine

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

597001R1

ROD, fertilizer gate, 8 ft. machine

1шт.

2

604136R1

ROD, fertilizer gate, 12 ft. machine

2шт.

2

597001R1

ROD, fertilizer gate, 16 ft. machine

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg, 1 per rod

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing, 1 per rod

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per rod 5/16"

1шт.

3

596980R2

HOPPER, 16 x 7, 8 ft. machine

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 crg

4шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 x 1/2 hex hd

2шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 1/2 hex hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

3

596986R2

HOPPER, 24 x 7, 12 ft. machine

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 1/2 hex-hd

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

3

596980R2

HOPPER, 16 x 7, 16 ft. machine

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 hex hd

4шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 1/2 hex-hd

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 x 1-1/2 hex-hd

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

4

604146R1

SUPPORT, spacer LH, 1 used 8 & 12 ft. machine, 2 used 16 ft. machine

1шт.

4

604147R1

SUPPORT, spacer RH, 1 used 8 & 12 ft. machine, 2 used 16 ft. machine

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd, 3 per support

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

5

604150R1

BRACE, hopper main inner, 2 used 8 & 12 ft. machine, 4 used 16 ft. machine

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, 2 per brace

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

6

603594R1

BRACE, hopper inner, 2 used 8 ft. machine, 3 used 12 ft. machine prior to 1967, For service use 2, 603594R1 brace, 4 used 16 ft. machine

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg, 2 used 12 ft. & 4 used 16 ft.

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8-16 x 3/4 crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg, 1 per brace

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

7

603497R1

CATCH

drop bottom lever rod, 5 used 8 ft. machine, 9 used 12 ft. machine, 10 used 16 ft. machine

1шт.

8

603470R1

BOLT,3/8" - 16 x 5.1", Steel

drop bottom lever long, 2 used 8 & 12 ft. machine, 4 used 16 ft. machine

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per rod 3/8"-16, G5

1шт.

9

603501R1

LEVER

drop bottom long, 2 used 8 & 12 ft. machine, 4 used 16 ft. machine

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/16 x 9/16 f-hd small solid, 1 per lever

1шт.

10

603498R1

ANGLE

BRACKET, drop bottom lever, 5 used 8 ft. machine, 9 used 12 ft. machine, 10 used 16 ft. machine

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/6-18 x 3/4 crg, 6 used 8 ft., 12 used 12 & 16 ft. machine

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg, 4 used 8 ft., 6 used 12 ft., 8 used 16 ft. machine

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

11

603587R1

BAR

STRIP, drop bottom lever bracket backing, 2 used 8 ft. machine, 1 used 12 ft. machine, 4 used 16 ft. machine

1шт.

12

603500R1

LEVER

drop bottom short, 3 used 8 ft. machine, 7 used 12 ft. machine, 6 used 16 ft. machine

1шт.

118059

RIVET,FH, 3/8" x 9/16"

3/16 x 9/16 small f-hd solid, 1 per lever

1шт.

13

603469R1

BOLT,3/8" - 16 x 3.3", Steel

drop bottom lever short, 3 used 8 ft. machine, 7 used 12 ft. machine, 6 used 16 ft. machine

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per rod 3/8"-16, G5

1шт.

14

603456R1

PANEL

GATE, fertilizer, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine, For service order 1, 816736C1 gate 1, 180018 bolt and 1, 252552C1 nut

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 sq-hd-cup-pt set, 1 used per gate

1шт.

14

816736C1

GATE ASSY

GATE, fertilizer, 16 used 8 ft. machine, 24 used 12 ft. machine, 32 used 16 ft. machine

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/2-20 x 5/8 hex-hd, 1 per gate

1шт.

252552C1

NUT

1/4-20 hex, 1 per bolt

1шт.

15

607276R2

SUPPORT

BEARING, gate rod, 5 used 8 ft. machine, 8 used 12 ft. machine, 10 used 16 ft. machine

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 crg, 5 used 8 ft. machine, 8 used 12 ft. machine, 10 used 16 ft. machine

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 hex-hd, 4 used 8 ft. machine, 8 used 12 & 16 ft. machine

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd, 1 used 8 ft., 2 used 16 ft. machine

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per bolt 1/4"-20, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per bolt 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

15

603455R1

LEVER GUIDE

BEARING, gate rod center, 12 ft. machine

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 crg, 1 per brg

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

598975R1

STRIP, fertilizer hopper head rain, 2 used 8 & 12 ft. machine, 4 used 16 ft. machine, For use on machines built March 1969 and since

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 crg, 6 used 8 & 12 ft. machine, 12 used 16 ft. machine

1шт.

17

598976R1

STRIP, hopper head weather, 2 used 8 & 12 ft. machine, 4 used 16 ft. machine, For use on machines built March 1969 season and since

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 crg, 6 used 8 & 12 ft. machine, 12 used 16 ft. machine

1шт.

18

603538R1

BRACKET

BRACE, 12 ft. hopper center, 1976 and since

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT, 1/4-20 x 3/4 crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
