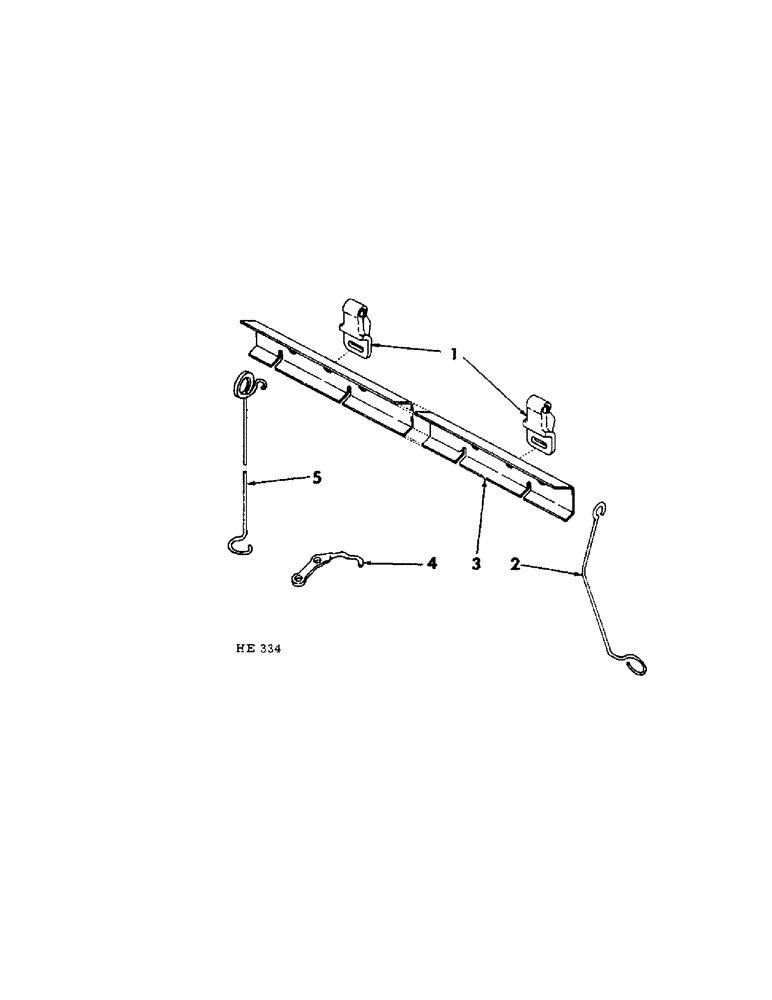

Запчасти Case IH 300 (37[1]) - GRAIN SEEDING TUBE HOLDER

1

596927R1

BRACKET

tube holder channel, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

C351

AXLE PIN

PIN, 1/2 x 2-3/8 std-hd-dld, 1 per bracket

1шт.

432-1216

COTTER PIN,3/16" x 1"

PIN, 1/8 x 3/4 cotter, 1 per pin

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd, 1 per bracket

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

(1 per bolt) Jam, 3/8"-16, G5

1шт.

2

604978R1

HOLDER

front grain tube

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

596928R1

CHANNEL

tube holder front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

596929R1

CHANNEL

tube holder center

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

619855R1

WASHER

.406 x 1.000 x .056

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

596930R1

CHANNEL, tube holder rear, 1 used 12 ft. machine, 2 used 16 ft. machine

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 2 per channel

1шт.

619856R1

WASHER

.406 x 1.000 x .056, 1 per bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

4

596932R2

GUIDE,0.375" Diameter, 2.6, 1.9" Length

grain tube, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

5

596931R2

HOLDER

grain tube, 11 used 8 ft. machine, 17 used 12 ft. machine, 23 used 16 ft. machine

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, 1 per holder

1шт.

619856R1

WASHER

.406 x 1.000 x .056, 1 per bolt

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.
