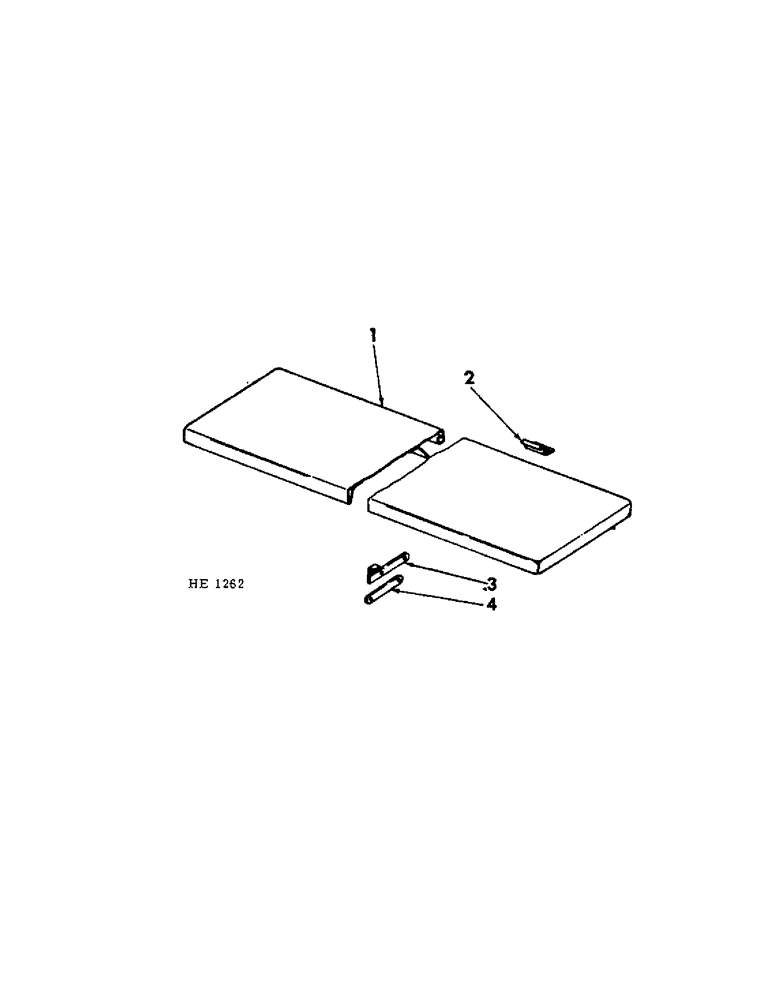

Запчасти Case IH 300 (36) - GRAIN HOPPER LID

1

596902R1

COVER, grain hopper, 12 ft. machine

1шт.

1

596899R1

COVER, grain hopper, 1 used 8 ft. machine, 2 used 16 ft. machine

1шт.

2

603213R1

HINGE, grain hopper lid, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 slt-pan-hd, 2 per hinge

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 per screw 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 per screw 1/4"

1шт.

3

603176R11

STRAP, cover upper hinge, 1 used 8 & 12 ft. machines, 2 used 16 ft. machine

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per strap 3/16" x 1"

1шт.

4

603177R1

STRAP, cover lower hinge, 1 used 8 & 12 ft. machine, 2 used 16 ft. machine

1шт.

104068

RIVET, 3/16 x 5/8 small b-hd, 1 used per strap But Hd, 3/16" x 5/8"

1шт.

615002R1

WASHER

.203 x .500 x .054, 2 used per rivet

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 used per strap 3/16" x 1"

1шт.
