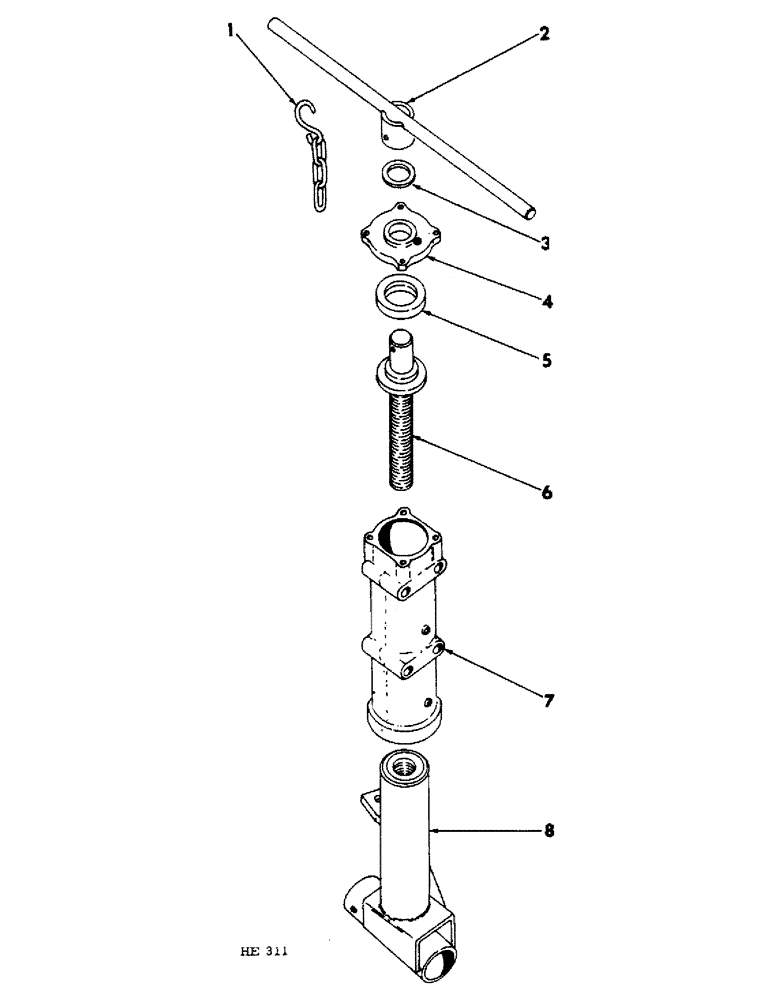

Запчасти Case IH 300 (03) - FRONT FURROW WHEEL ADJUSTING

1

604704R91

HOOK

CHAIN ASSY., locking hook

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex hd

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga

1шт.

2

604690R11

CRANK

ASSY., adjusting

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

3

21290R1

WASHER

1-11/32 x 2 x 16 ga

1шт.

4

596830R1

CAP

adj post

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex hd

3шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga

1шт.

5

596829R91

BEARING ASSY,2.014" ID x 2.9475" OD x 0.635"

thrust

1шт.

6

596827R1

ADJUSTMENT SCREW

ASSY., wheel adjusting

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

21290R1

WASHER

1-11/32 x 2 x 16 ga

1шт.

7

596820R2

POST

front furrow wheel adj

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8-11 x 5-1/2 hex hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

8

596821R1

PIVOT, front furrow wheel, For use on machines w/identification plate 300 C 1111 and 300 C 1112

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27, 90 deg lub

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std hd dld

1шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.

8

811432C1

PIVOT

front furrow wheel, For use on machines w/identification plate 300 C 1113

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 degreee lub

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std hd dld

1шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.
