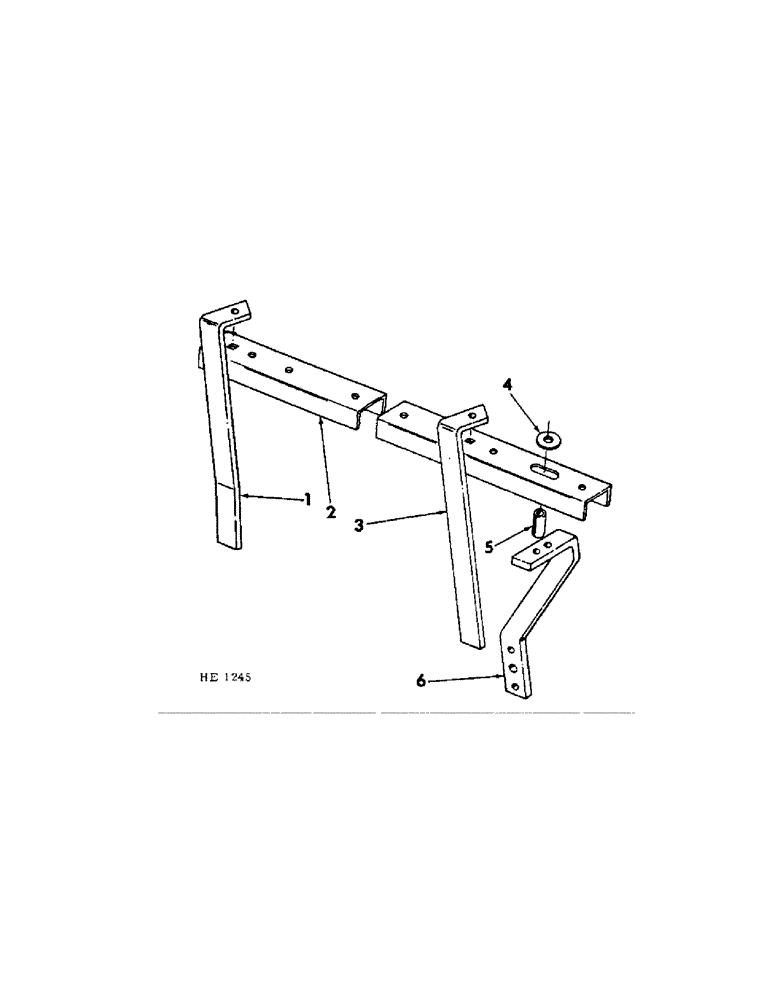

Запчасти Case IH 300 (29[A]) - TRASH BAR ATTACHMENT

1

598994R1

BAR

flex conn trash

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

597013R2

CHANNEL

trash bar support

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex hd

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

1шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

598993R1

BAR

spool trash

5шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

4

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

1шт.

5

363830R1

SPACER,1/2" X-Strng Pipe x 1 1/2"

1/2 x 1-1/2 extra strong pipe

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 hex-hd

1шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

597014R1

BRACE

channel support

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
