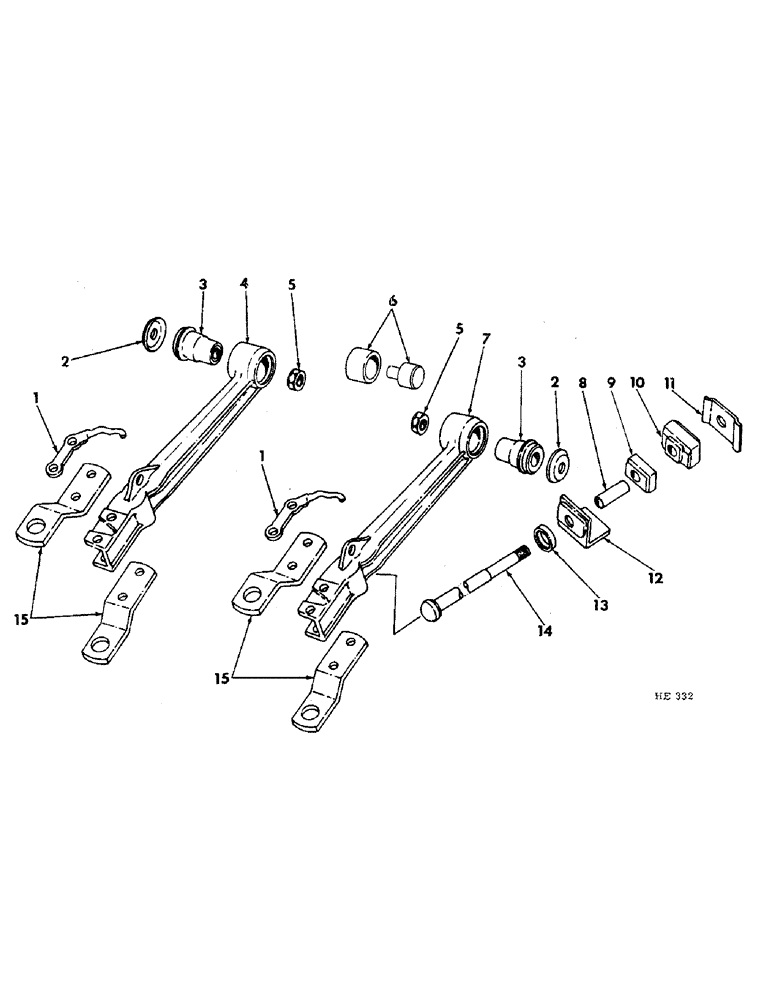

Запчасти Case IH 300 (28) - DISK GANG DRAG LINK

1

596932R2

GUIDE,0.375" Diameter, 2.6, 1.9" Length

grain tube, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

2

596784R1

WASHER

drag link bushing, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

3

596781R1

BUSHING,15.95mm ID x 52.32mm OD x 65.02mm L

drag link, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

4

596780R11

LINK

gang drag front, Includes 1, 596781R1 bushing, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

5

596785R1

BUSHING

BAR, drag link front bushing, 4 used 8 ft. machine, 6 used 12 ft. machine, 8 used 16 ft. machine

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

5/8-11 x 4-1/2 hex, 1 per bar

1шт.

318790C1

NUT

5/8-11 hex lock, 1 per bolt

1шт.

6

597182R91

TOOL KIT

KIT, gang drag link service tool

1шт.

7

596782R11

LINK

gang drag rear, Includes 596781R1 & 596783R1 bushings, 2 used 8 ft. machine, 3 used 12 ft. machine, 3 used 16 ft. machine

1шт.

8

596787R1

BUSHING

thrust rod, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

9

421595C1

BUSHING

thrust rod rear, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

10

596788R1

THRUST RING

BUSHING, thrust rod front, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

11

596789R1

THRUST WASHER

thrust rod front bushing, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

12

596790R1

THRUST WASHER

thrust rod rear bushing, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

13

596783R1

BUSHING

thrust rod head seat, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

14

596786R1

ROD

gang thrust, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

272334

SLOTTED NUT,3/4"-16, G5, Thk

NUT, 3/4-16 hex-sltd, 1 per rod

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1 per rod 3/16" x 1 1/2"

1шт.

15

596868R1

BRACE

drag link, 8 used 8 ft. machine, 12 used 12 ft. machine, 16 used 16 ft. machine

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 x 4 hex-hd, 1 per brace

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.
