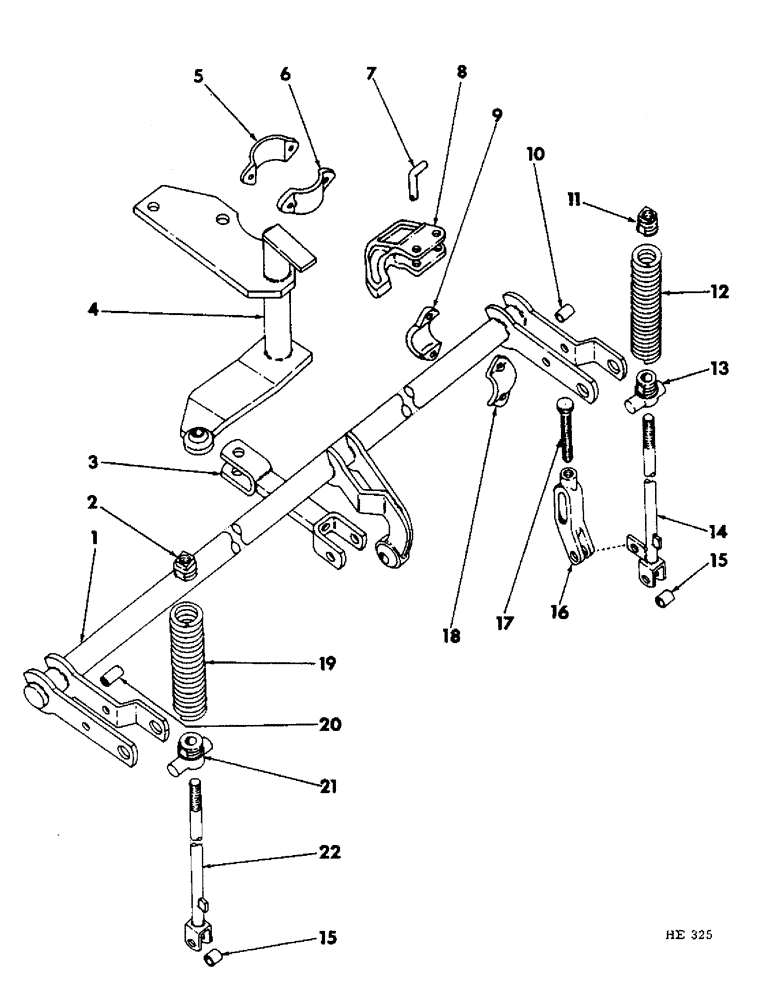

Запчасти Case IH 300 (26) - ROCKSHAFT

1

598086R91

ROCKSHAFT ASSY., 8 ft. machine, Consists of

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT

2шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

596755R1

PLUG

2шт.

596756R1

PLUG

1шт.

ROCKSHAFT (NSS)

1шт.

619225R1

SPACER

2шт.

552920R2

SPACER,3/4" Tube x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

1

596747R92

ROCKSHAFT

ASSY., 12 ft. machine, Consists of

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT

3шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

576755R1

PLUG

3шт.

596756R1

PLUG

1шт.

ROCKSHAFT (NSS)

1шт.

568217R1

BUSHING,3/4" Tube x 1 1/4"

SPACER

3шт.

552920R2

SPACER,3/4" Tube x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

1

596757R92

SHAFT

ROCKSHAFT ASSY., 16 ft. machine, Consists of

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT

4шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

596755R1

PLUG

4шт.

596756R1

PLUG

1шт.

ROCKSHAFT (NSS)

1шт.

568217R1

BUSHING,3/4" Tube x 1 1/4"

SPACER

4шт.

552920R2

SPACER,3/4" Tube x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

2

596794R1

PLUG

gang lift extension spg rear

1шт.

3

596766R1

BAR

ASSY., lift connecting

1шт.

22095R1

PIN

3/4 x 3 type 5 std hd dld

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

596761R1

LEVER

ASSY., rockshaft lift

1шт.

5

597977R1

CAP

lift lever bearing outer

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

6

597976R1

CAP

lift lever bearing inner

2шт.

7

602801R1

PIN

retainer locking

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

8

604564R2

RETAINER

lift cyl.

1шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2-1/8 std hd dld

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

280954

NUT,3/4"-10, G5

1 per rod 3/4"-10, G5

1шт.

9

597976R1

CAP

rockshaft bearing inner, 4 used 8 ft. machine, 5 used 12 ft. machine, 6 used 16 ft. machine

1шт.

10

568217R1

BUSHING,3/4" Tube x 1 1/4"

SPACER, rockshaft arm, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT, 1/2-13 x 2-3/4 crg, One used per spacer

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used per bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

11

596793R1

PLUG

gang lift extension spg, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

12

596791R1

SPRING

gang lift extension, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

13

596755R1

PLUG

rockshaft arm spg, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

14

596795R1

ROD

ASSY., gang lift spring front

1шт.

280954

NUT,3/4"-10, G5

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

596799R1

BUSHING

spg rod connecting, 3 used 8 ft. machine, 4 used 12 ft. machine, 5 used 16 ft. machine

1шт.

16

596801R1

CLEVIS

front gang stop

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 std hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

17

596802R1

BOLT,Hex, 5/8" - 18 x 4 1/4", Gr 2

front gang stop

1шт.

425-110

5/8-18 hex

1шт.

18

597977R1

CAP

rockshaft bearing outer, 4 used 8 ft. machine, 5 used 12 ft. machine, 6 used 16 ft. machine

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , 1 used per cap 1/8"-27 x .66 lg

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex, 2 per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11, 1 per bolt

1шт.

19

596792R1

SPRING

gang lift rear extension

1шт.

20

552920R2

SPACER,3/4" Tube x 1 1/2"

rockshaft arm rear

1шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2-13 x 3 crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

596756R1

PLUG

rockshaft arm rear spring

1шт.

22

596800R1

ROD

gang lift spring, 2 used 8 ft. machine, 3 used 12 ft. machine, 4 used 16 ft. machine

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex-hd, 1 per rod

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.
