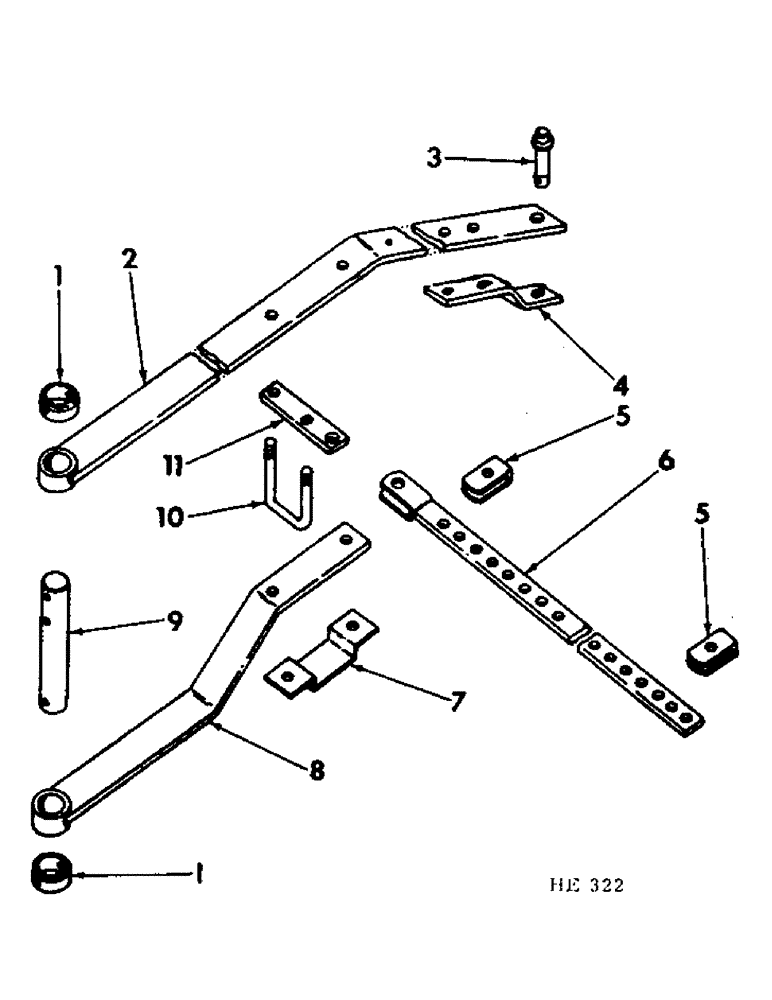

Запчасти Case IH 300 (25) - DUPLEX AND TRIPLEX HITCH STABILIZER

1

604738R1

BUSHING

SPACER, pivot bar

2шт.

Q846

PIN,7/16" x 3 3/8"

7/16 x 3-3/8 std-hd-dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

597087R1

BAR

ASSY., hitch connection upper

1шт.

3

597094R1

PIN

ASSY., hitch connection

1шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

4

597093R1

BRACE

hitch connection

1шт.

271858

SUPPORT

BOLT, 1-8 x 2-3/4 hex hd

2шт.

9849633

NUT,1"-8, G5

2шт.

5

597168R1

YOKE

adj. bar stop

2шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 1-1/8 std hd dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

6

597085R1

BAR

ASSY., stabilizer adjusting

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 x 2-1/4 std hd dld ht

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

597092R1

CHANNEL

hitch bar clamping

1шт.

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

1-8 x 3-1/2 hex hd

2шт.

9849633

NUT,1"-8, G5

2шт.

8

597090R1

BAR

ASSY., hitch connection lower

1шт.

9

597096R1

BAR

rear furrow wheel beam pivot, 12 & 16 ft. machine

1шт.

9

597097R1

BAR

rear wheel beam pivot, 20, 24, 28, 32, 36 & 48 ft. machines

1шт.

Q846

PIN,7/16" x 3 3/8"

7/16 x 3-3/8 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

597023R1

BOLT,U, 5/8" - 11 x 7.50"

U-BOLT, stabilizer bar

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

597084R1

BAR

connection stabilizer

1шт.
