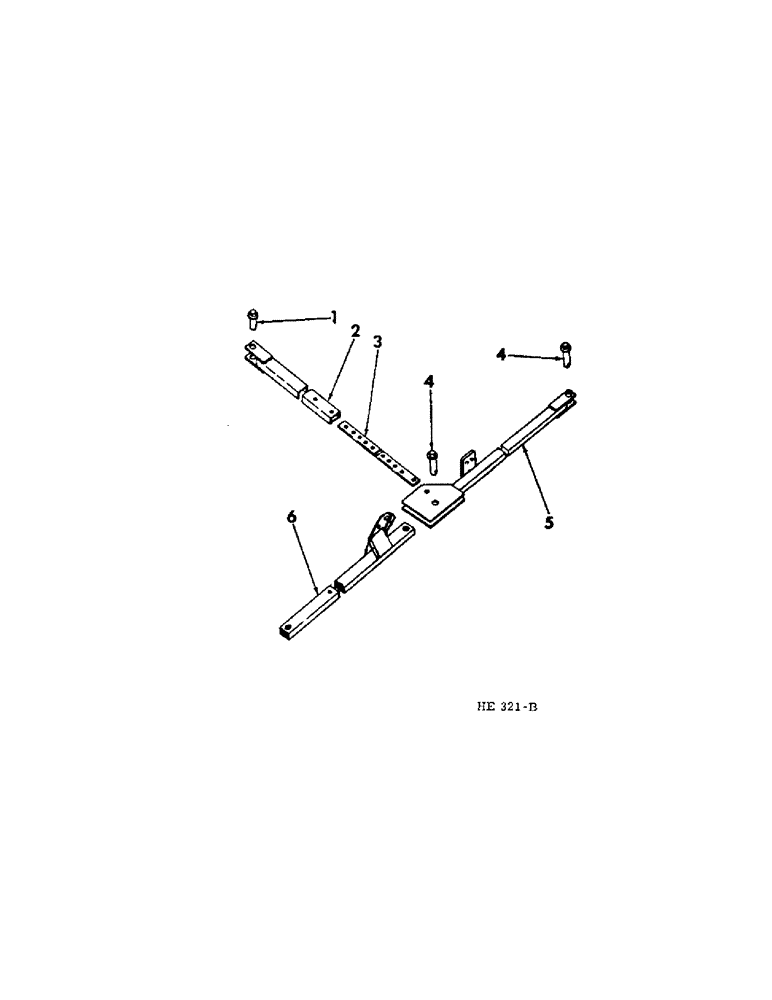

Запчасти Case IH 300 (24[1]) - MACHINE HITCH, FOR USE ON 16 FT. FRONT TRIPLEXED MACHINE W/TRACTOR REAR WHEEL ON THE LAND OPERATION

1

597043R1

PIN

ASSY., hitch stabilizer

1шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

2

813712C1

STABILIZER

hitch 16 ft. machine 78.35 in length

1шт.

3

597059R1

BAR

hitch stabilizer adj., 48.3 in length

1шт.

597061R2

PIN

5/8 x 2 std-hd-dld

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

23313R1

HEADED PIN,7/8" x 3 1/2"

PIN, HEADED, 7/8" x 3 1/2"

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-3/4 cotter

1шт.

4

813707C1

PIN

hitch beam & arm

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

4шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

PIN, 1/4 x 1-1/4 cotter

4шт.

5

813700C1

BEAM

ASSY., hitch, 177.61 in length

1шт.

6

813716C1

ARM

hitch steering, 56.5 in length

1шт.
