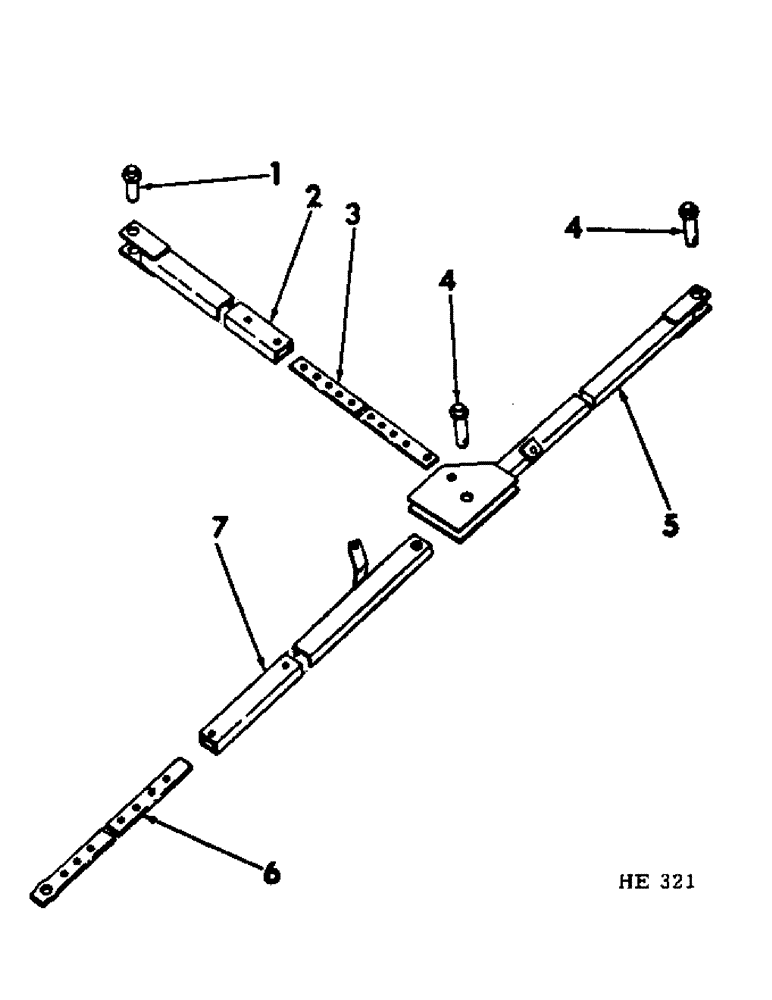

Запчасти Case IH 300 (21) - FRONT DUPLEX MACHINE HITCH

1

597054R1

PIN

stabilizer

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

2

597048R1

STABILIZER

hitch, 32.06 in length 8 ft. machine

1шт.

2

597050R1

STABILIZER

hitch, 38.05 in length 12 ft. machine w/tractor in the furrow operation

1шт.

2

597052R1

STABILIZER

hitch, 51.05 in length 12 ft. machine w/tractor on the land operation, 16 ft. machine

1шт.

3

597057R1

BAR

hitch stabilizer adj. 28.8 in length, 8 ft. machine

1шт.

3

597058R1

BAR

hitch stabilizer adj., 37.8 in length, 12 ft. machine w/tractor in the furrow operation

1шт.

3

597059R1

BAR

hitch stabilizer adj., 48.3 in length, 12 ft. machine w/tractor on the land operation, 16 ft. machine w/tractor in the furrow operation

1шт.

3

597060R1

BAR

hitch stabilizer adj., 68.3 in length, 16 ft. machine w/tractor on the land operation

1шт.

597061R2

PIN

5/8 x 2 std-hd-dld

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

CP15696

PIN, 7/8 x 3-1/4 std-hd-dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

4

597043R1

PIN

steering arm & hitch beam

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

5

597039R2

BEAM, hitch, 122.06 in length 12 ft. machine

1шт.

5

597041R2

BEAM, hitch, 177.61 in length 16 ft. machine

1шт.

5

597034R2

BEAM

hitch, 102.21 in length 8 ft. machine

1шт.

6

597069R2

BAR

extension, 47 in length

1шт.

597061R2

PIN

5/8 x 2 std-hd-dld

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

7

597062R2

ARM, hitch steering, 26 in length 8 ft. machine

1шт.

7

597066R2

ARM, hitch steering, 60.5 in length 12 ft. & 16 ft. machine

1шт.
