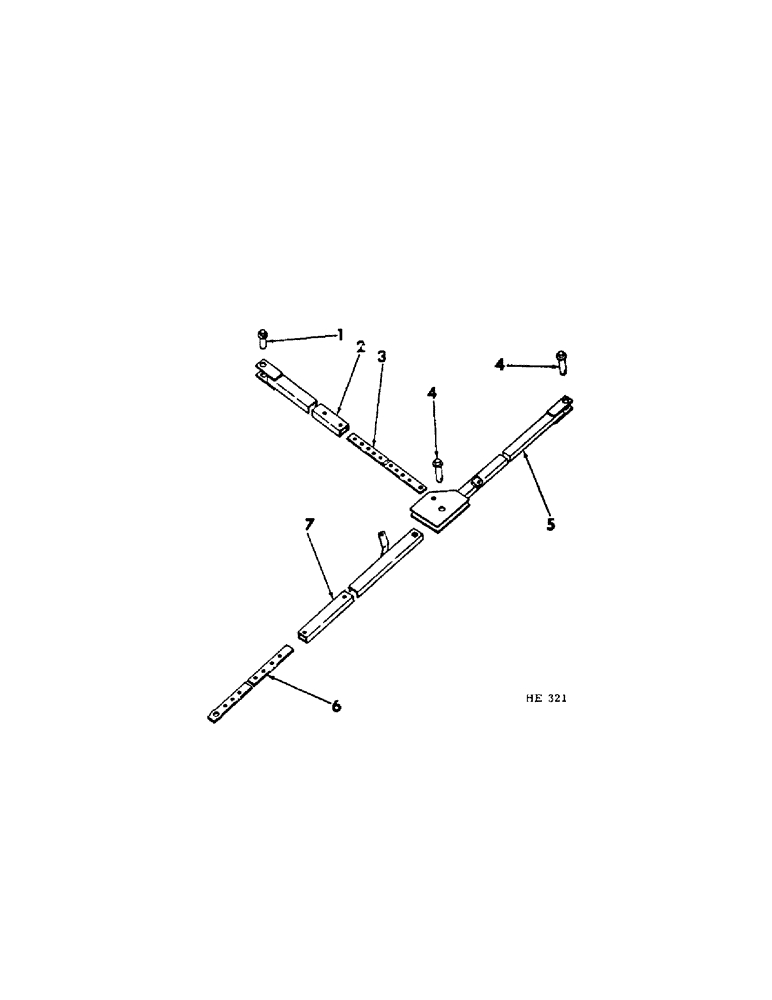

Запчасти Case IH 300 (20) - SINGLE MACHINE HITCH AND REAR DUPLEX MACHINE HITCH

1

597054R1

PIN

ASSY., hitch stabilizer

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

2

597048R1

STABILIZER

hitch 16 ft. machine 32.06 in length

1шт.

2

597045R1

STABILIZER

hitch 12 ft. machine 25.05 in length

1шт.

3

597057R1

BAR

hitch stabilizer adj, 28.8 in length

1шт.

597061R2

PIN

5/8 x 2 std-hd-dld

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

CP15696

PIN, 7/8 x 3-1/4 std hd dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

4

597043R1

PIN

ASSY., hitch beam & steering arm

2шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

2шт.

5

597034R2

BEAM

ASSY., hitch, 102.21 in length

1шт.

6

597069R2

BAR

extension, 47 in length

1шт.

597061R2

PIN

5/8 x 2 std-hd-dld

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

3шт.

7

597062R2

ARM, hitch steering, 26 in length

1шт.
