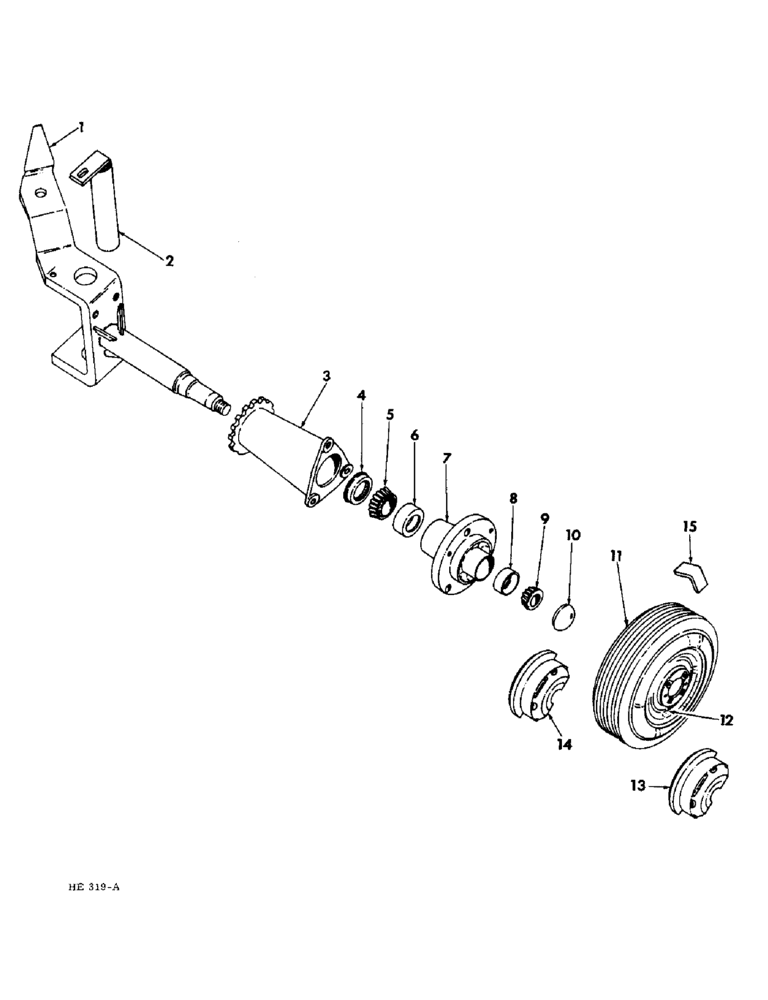

Запчасти Case IH 300 (16) - LAND WHEEL

1

596843R1

AXLE

ASSY., land wheel

1шт.

.

619373R1

WASHER

29/32 x 2 x 7 ga pln

1шт.

.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt jam nut

1шт.

.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

596848R1

PIN

ASSY., land wheel axle

1шт.

.

22188R1

WASHER

2-9/32 x 3 x 14 ga

1шт.

.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

1шт.

3

596971R1

SPROCKET ASSY.

SPROCKET, 13T wheel drive

1шт.

.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-20 x 2-1/4 hex hd

3шт.

4

606556R91

OIL SEAL

SEAL, wheel hub oil

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing

1шт.

6

663558R1

BEARING CUP

CUP, wheel hub inner bearing

1шт.

7

596851R21

HUB

land wheel, Includes 651817R1 and 663558R1 cups

1шт.

8

651817R1

BEARING CUP

CUP, wheel hub outer bearing

1шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing

1шт.

10

663906R1

CAP

wheel hub

1шт.

11

TIRE & TUBE, 9.5-14 6 ply rib tread code I-1 for use w/481344R91 wheel

1шт.

11

TIRE & TUBE, 11.L-15 6 ply rib tread code I-1 for use w/598999R1 wheel

1шт.

12

481344R91

WHEEL

14 x 8 kb land

1шт.

12

598999R1

RIM

WHEEL, 15 x 10 lb land

1шт.

.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

3шт.

.

181702

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

1/2-20 x 1-3/4 hex hd

3шт.

.

U18588

NUT

wheel

3шт.

13

597020R1

WEIGHT, 14 inch wheel outer

1шт.

.

189315

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1/2-13 x 6-1/2 hex-hd

2шт.

.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

14

597020R1

WEIGHT, 1/4 inch wheel inner

2шт.

.

21526R1

BOLT, 1/2-13 x 11 hex-hd

4шт.

.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

15

811382C1

PACKAGE

tire valve guard service, Consists of

1шт.

.

GUARDS (NSS)

12шт.

.

INSTRUCTION (NSS)

1шт.
