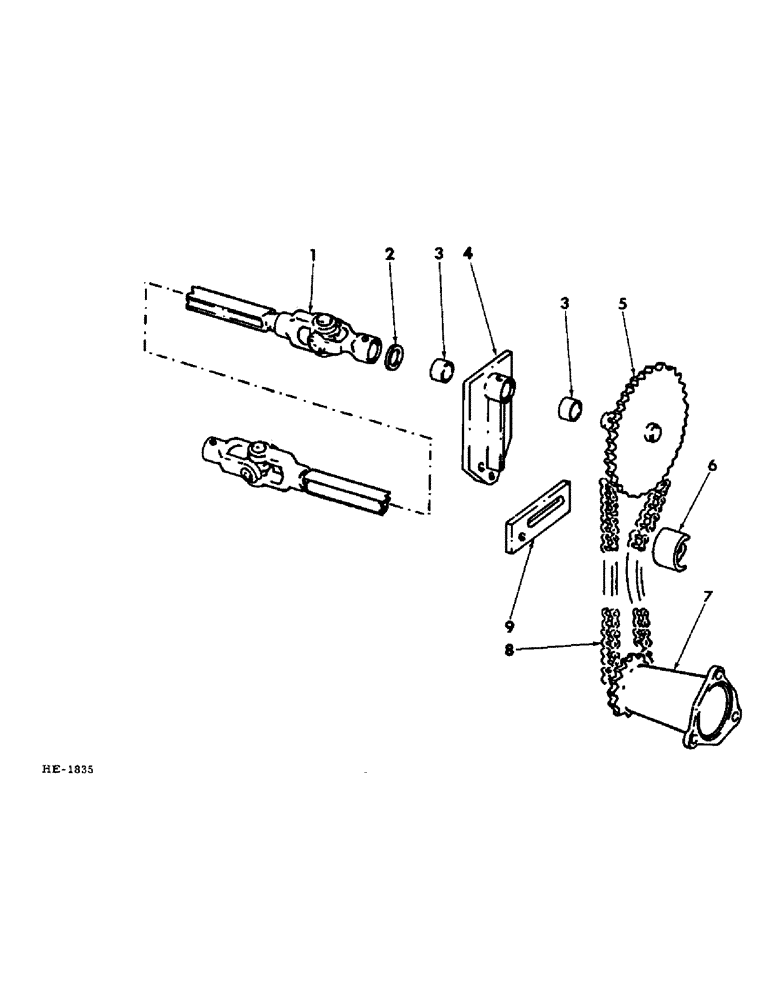

Запчасти Case IH 300 (15) - LAND WHEEL GRAIN DRIVE

1

JOINT ASSY., wheel drive universal, For service parts refer to wheel drive universal

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 std-hd-dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

3

811579C1

BUSHING

drive sprocket

2шт.

4

811575C1

SUPPORT ASSY., land wheel drive shaft, Includes 2, 811579C1 bushing

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 str drive lub

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

3шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

5

811456C1

SPROCKET ASSY., 55T wheel driven

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

583620R1

BLOCK

chain tightener

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

120376

NUT,5/16"-18, G5

1шт.

7

596971R1

SPROCKET ASSY.

SPROCKET, 13T land wheel

1шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-20 x 2-1/4 hex-hd

3шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

8

CHAIN, land wheel drive, Use 39 links of 1-1/4 inch roller chain from a 10 ft. roll 569089R91 and add one connecting link 456980R91 and one offset link 456929R91

1шт.

9

811580C1

BAR, chain tightener

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex hd

1шт.
