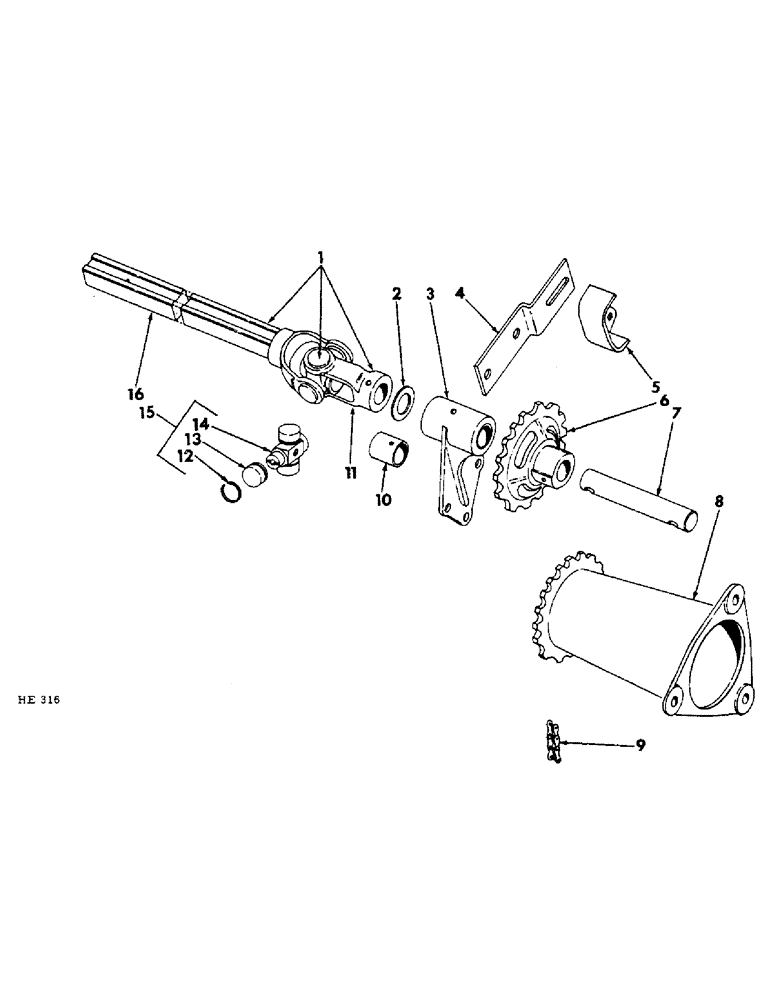

Запчасти Case IH 300 (14) - LAND WHEEL GRAIN DRIVE AND UNIVERSAL

1

596977R91

UNIVERSAL, land wheel drive, Consists of

1шт.

208959R91

KIT

CROSS ASSY.

1шт.

597148R1

YOKE & SHAFT

1шт.

597147R1

YOKE

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2 std hd dld ht c-z

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

3

596974R11

BRACKET, land wheel drive shaft, Includes 2, 594978R1 bushings

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 -16 x 1-1/2 hex-hd

3шт.

4

596973R1

BRACE, land wheel chain tightener

1шт.

5

583619R1

BLOCK

land wheel chain tightener

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

596976R1

SPROCKET ASSY.

SPROCKET, 12T wheel drive driven

1шт.

Q850

PIN

3/8 x 1-7/8 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

596975R1

SHAFT, land wheel drive

1шт.

8

596971R1

SPROCKET ASSY.

SPROCKET, 13T wheel drive

1шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-20 x 2-1/4 hex-hd

3шт.

9

CHAIN, land wheel drive 1-1/4 inch pitch standard, For service order 1, 569089R91 10 ft. chain, Reduce to 23 links, Add 1, 456980R91 connecting link and 1-456929R91 offset link..

1шт.

10

594978R1

BUSHING

bracket

2шт.

11

597147R1

YOKE

universal joint

1шт.

12

975666R1

RING

snap

4шт.

13

BEARING, center cross, Not serviced separately order 1, 208959R91 cross assy.

1шт.

14

CROSS, center, Not serviced separately order 1, 208959R91 cross assy.

1шт.

17238R1

FITTING, 1/4-NF 65 degree lub

1шт.

15

208959R91

KIT

CROSS ASSY., centre, Consists of

1шт.

CROSS (NSS)

1шт.

BEARING

4шт.

975666R1

RING

4шт.

17238R1

FITTING

1шт.

16

597148R1

YOKE AND SHAFT, universal joint

1шт.
