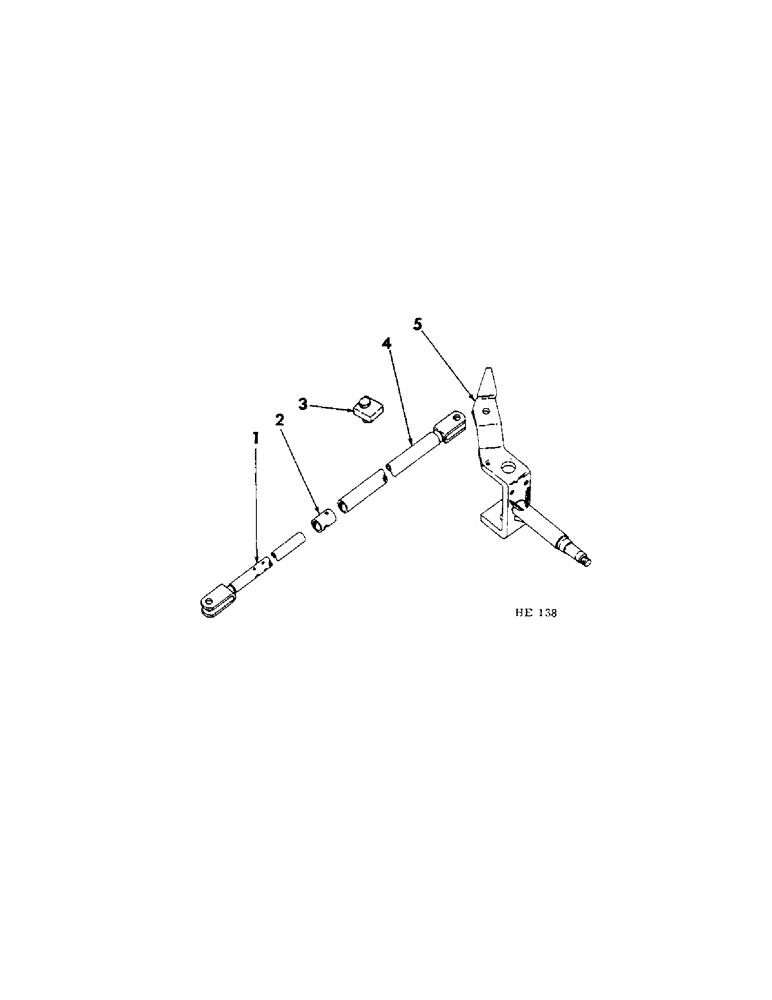

Запчасти Case IH 300 (12) - LAND WHEEL STEERING

1

596853R1

TUBE

ASSY., land wheel front steering

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 x 2-1/4 std hd dld ht

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

596856R1

SPACER

collar

1шт.

513497R1

PIN, 5/8 x 2-3/8 std hd dld ht

1шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.

3

597973R2

STOP

ASSY., land wheel

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

598088R1

TUBE, land wheel steering rear 8 ft.

1шт.

4

596857R1

TUBE,43.5" Length

land wheel steering rear 12 ft.

1шт.

4

596860R1

TUBE

land wheel steering rear 16 ft.

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 x 2-1/4 std hd dld ht

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

5

596843R1

AXLE

land wheel, For service refer to land wheel

1шт.
