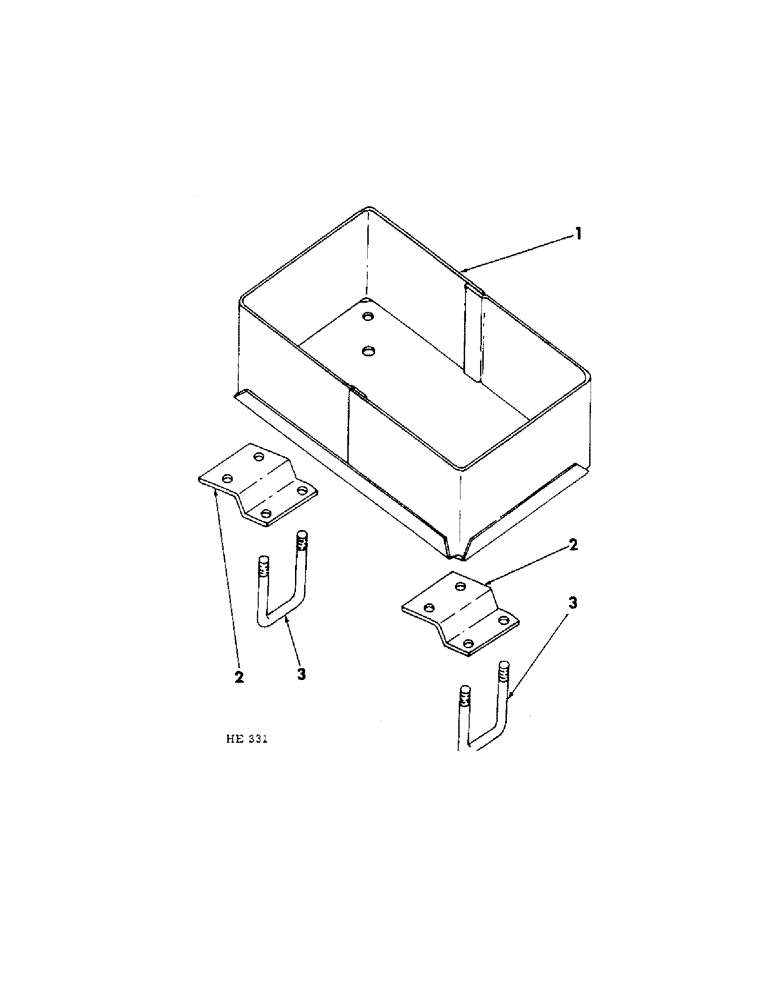

Запчасти Case IH 300 (12[1]) - REAR BEAM WEIGHT BOX, SPECIAL

1

604769R91

BOX

ASSY., weight

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd

4шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

597022R1

BRACKET

weight box support

2шт.

3

597023R1

BOLT,U, 5/8" - 11 x 7.50"

U-BOLT, weight box support bracket

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
