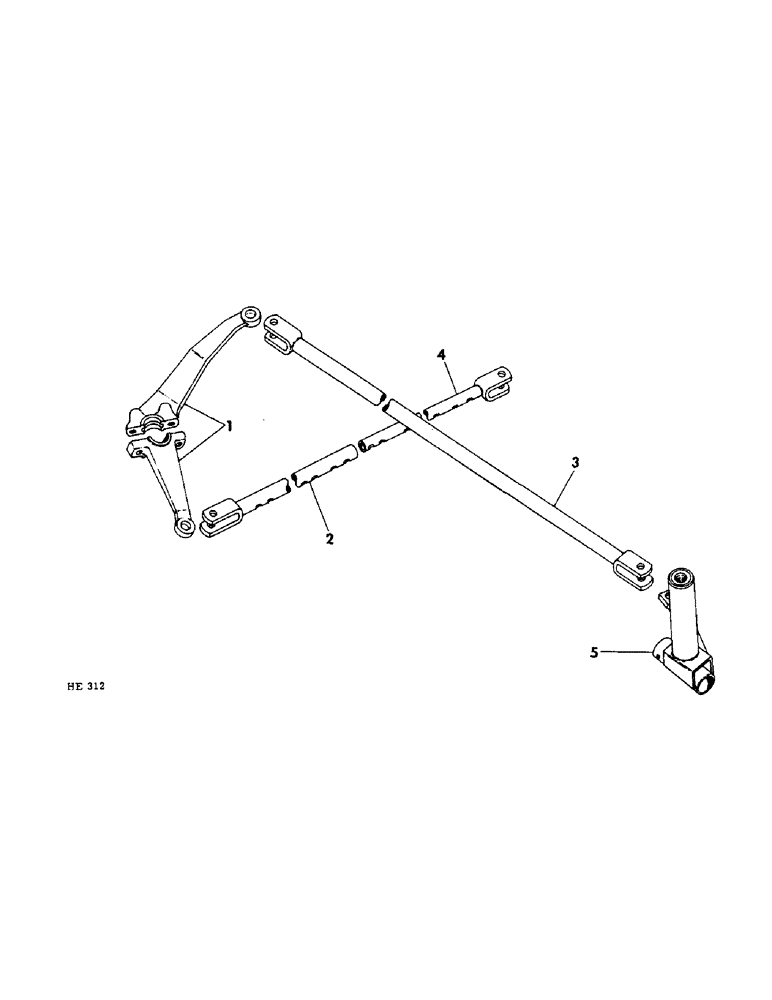

Запчасти Case IH 300 (09) - FRONT FURROW WHEEL STEERING

1

597081R94

LEVER

hitch steering, Includes 2, 271725 bolts

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8-11 x 2-1/2 hex-hd

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

597072R1

TUBE

hitch steering, 45.5 in length

1шт.

22095R1

PIN

3/4 x 3 type 5 std hd dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

3

597070R1

ROD

front wheel furrow tire, 75.2 in. length

1шт.

22095R1

PIN

3/4 x 3 type 5 std hd dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

597076R1

ROD

hitch steering, 46.1 in length

1шт.

597078R1

PIN

3/4 x 2-1/4 std-hd dld

2шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick-attachable cotter

2шт.

22095R1

PIN

3/4 x 3 type 5 std hd dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

5

596821R1

PIVOT, front furrow wheel, For use on machines w/identification plate 300C1111 or 300C1112

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 degree lub

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std-hd-dld

1шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.

5

811432C1

PIVOT

front furrow wheel, For use on machines w/identification plate 300C1113

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 degree lub

1шт.

Q838

HEADED PIN,5/8" x 3 1/4"

PIN, 5/8 x 3-1/4 std-hd-dld

1шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.
