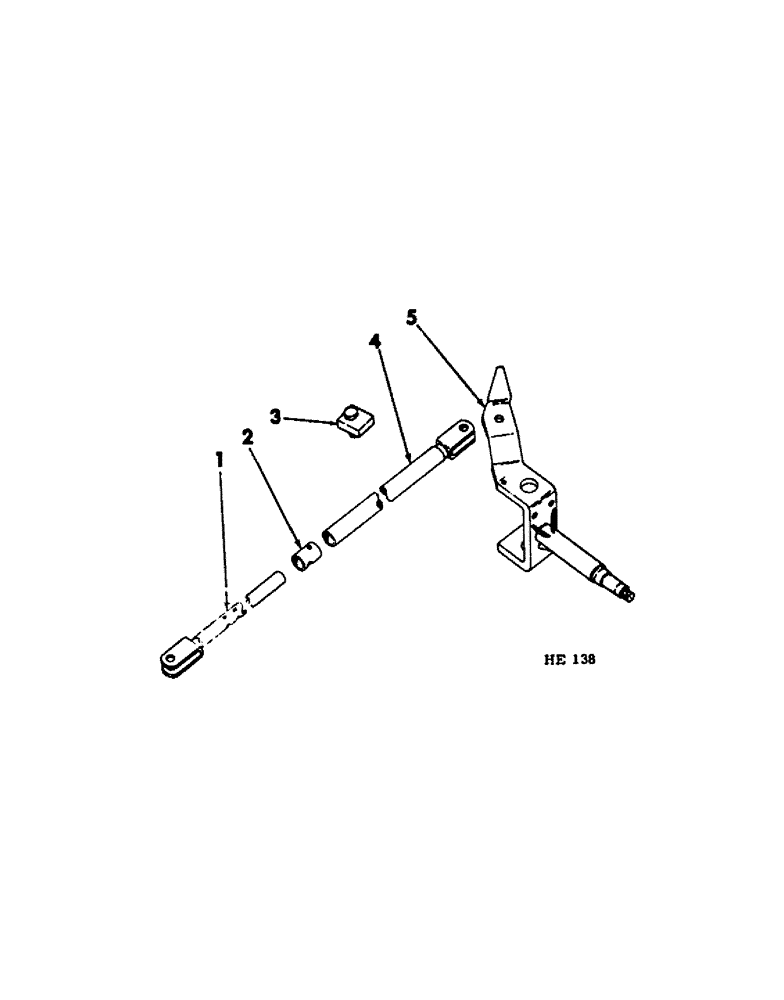

Запчасти Case IH 300 (10-05[A]) - LAND WHEEL STEERING

1

596853R1

TUBE

land wheel front steering

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

2

596856R1

SPACER

collar

1шт.

513497R1

5/8 X 2-3/8" STD-HD-DLD PIN

1шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.

3

597973R2

STOP

land wheel

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

508088R1

TUBE, land weel steering rear (8 ft machine)

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

4

596857R1

TUBE,43.5" Length

land wheel steering rear (12 ft machine)

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

4

596860R1

TUBE

land wheel steering rear (16 ft machine)

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

5

596843R1

AXLE

land wheel (Also refer to "land-wheel" in section 10 of this catalog)

1шт.
