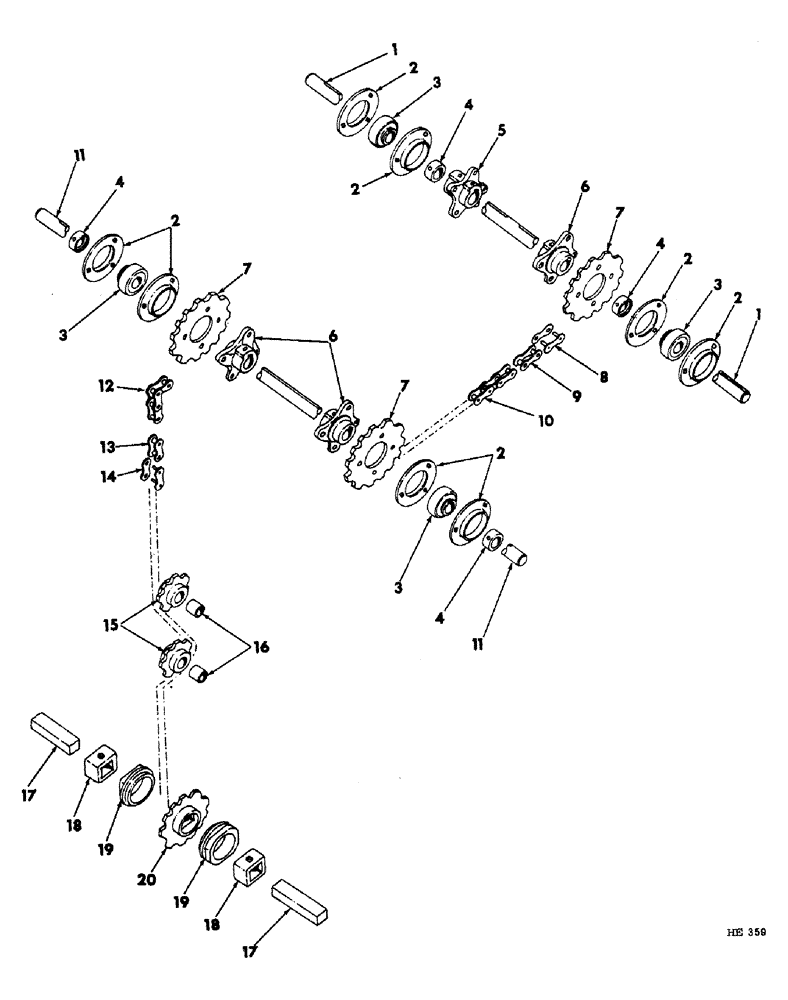

Запчасти Case IH 300 (11-04) - WEEDER ROD DRIVE

1

594720R1

AXLE, drive wheel

1шт.

2

462360R1

FLANGED BEARING

RETAINER, bearing

8шт.

16897R11

BOLT (SPREADER)

5/16 X 3/4" CD-PLTD CRG BOLT W/NUT

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

3

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

axle and boot drive

4шт.

4

455102R11

COLLAR

W/SET SCREW, bearing locking

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4" HDLS CUP-PT SET SCREW

4шт.

5

594721R1

HUB, drive wheel

1шт.

T14185

1/4 SQ X 2-3/4" PARALLEL KEY 1/4" Sq x 2 3/4", Par

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8" HDLS CUP-PT SET SCREW

2шт.

6

594722R1

HUB, drive sprocket

3шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4 SQ X 2-1/8" PARALLEL KEY

3шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8" HDLS CUP-PT SET SCREW

3шт.

7

605197R1

SPROCKET ASSY.

SPROCKET, 13T ground drive

3шт.

18795R11

BOLT

7/16 X 1-1/4" CD-PLTD BOLT W/NUT

12шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

8

456980R91

CHAIN LINK

LINK, main drive chain connecting

1шт.

1751D

PACKAGE

1/4 LB PKG C-PIN

1шт.

9

456929R91

CHAIN LINK

LINK, main drive chain offset

1шт.

1360D

OFFSET LINK PIN

1шт.

1751D

PACKAGE

1/4 LB PKG C-PIN

1шт.

10

CHAIN, 1-1/4" extended pitch roller type agricultural main drive (Order 2 - 569089R91, 10 ft lengths, reduce to 113 links and add 1 - 456929R91 offset link and 1 - 456980R91 connecting link)

1шт.

11

594728R1

SHAFT, boot drive

1шт.

12

CHAIN, 1-1/4" extended pitch bushing type agricultural boot drive (Order 1 - 605972R91, 10 ft length, reduce to 63 links, add 2 - 602803R91 offset links and 1 - 602804R91 connecting link)

1шт.

13

602803R91

LINK, boot drive chain offset

2шт.

14

602804R91

LINK, boot drive chain connecting

1шт.

15

602453R2

SPROCKET ASSY.

SPROCKET, 7T boot drive idler & tightener

2шт.

16

605252R1

BUSHING

SPACER, sprocket

2шт.

17550R11

BOLT

1/2 X 2-1/4" BOLT W/NUT

2шт.

12026R1

WASHER

17/32 X 1-1/4 X 16 GA TIGHTENER SPROCKET WASHER

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

594699R1

BAR, weeder rod 11 ft

1шт.

17

607452R1

BAR, weeder rod 14 ft

1шт.

17

594700R1

BAR, weeder rod 18 ft

1шт.

18

607453R21

COLLAR W/SET SCREW, weeder rod

2шт.

102593

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

3/8 X 1/2" HDLS CUP-PT SET SCREW

4шт.

19

607456R1

BUSHING

boot driven sprocket

2шт.

20

607455R2

SPROCKET ASSY.

SPROCKET, 11T boot driven

1шт.
