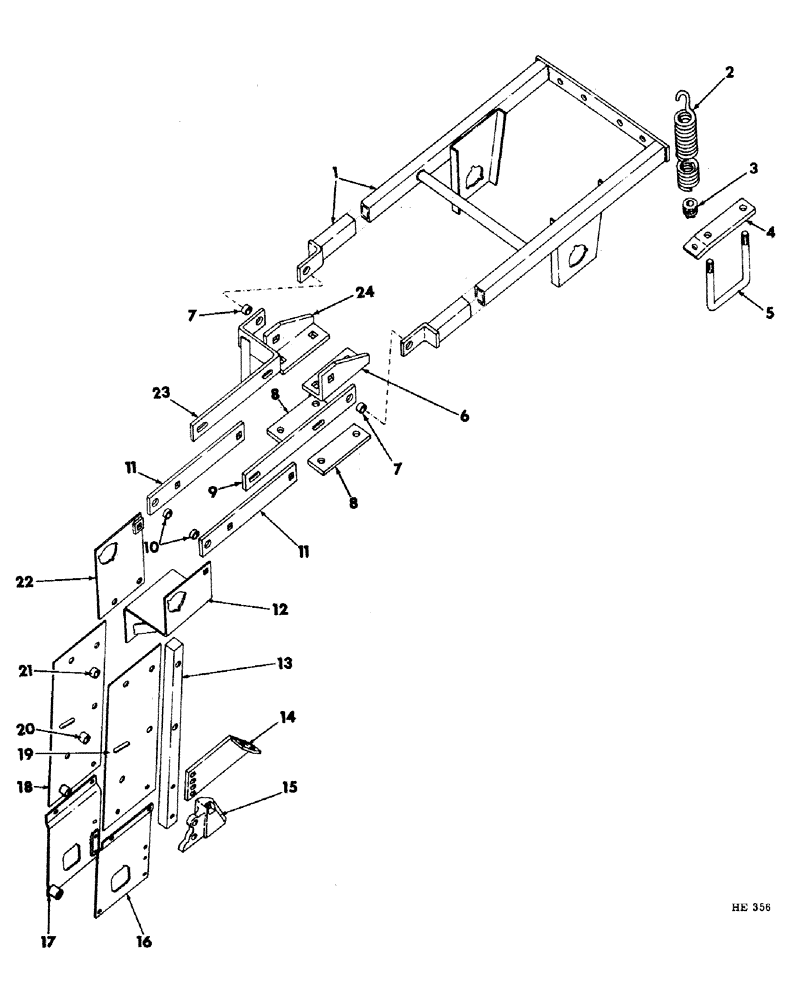

Запчасти Case IH 300 (11-02) - DRIVE FRAME AND CENTER BOOT

1

594709R91

FRAME, drive wheel support

1шт.

2

612435R2

SPRING

front tension

2шт.

3

PO2315

PLUG

front tension spring

2шт.

Q990

1/2 X 3-1/2" SPECIAL BOLT

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

4

594716R1

SUPPORT, front tension spring

2шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

support clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" CD-PLTD NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

594718R1

ANGLE, rear pivot support right

1шт.

18721R11

BOLT

5/8 X 2-1/4" CD-PLTD CRG BOLT W/NUT

1шт.

18728R11

BOLT

5/8 X 6" CD-PLTD CRG BOLT W/NUT

2шт.

608701R1

WASHER

21/32 X 1-1/4 X 16 GA CD-PLTD WASHER

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

7

596622R1

SPACER, adjusting support and bar

2шт.

8

594719R1

BAR, support angle clamping

2шт.

9

594726R1

BAR, main drive chain adjusting

1шт.

10

527216R1

BUSHING

SPACER, inner bar

2шт.

11

594727R1

BAR, chain adjusting inner

2шт.

12686R11

1/2 X 1-1/2" CD-PLTD CRG BOLT W/NUT

4шт.

607895R1

WASHER

17/32 X 1 X 11 GA CD-PLTD WASHER

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

12

594732R11

BRACKET, boot drive shaft outer (RH drive - illustrated)

1шт.

12

594733R11

BRACKET, boot drive shaft outer (LH drive - not illustrated)

1шт.

18476R11

1/2 X 2-1/2" CD-PLTD BOLT W/NUT

2шт.

18719R11

BOLT

5/8 X 1-3/4" CD-PLTD CRG BOLT W/NUT

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

608630R1

BAR

boot

1шт.

14

594739R91

BRACE, boot connecting

1шт.

20180R11

1/2 X 2" CD-PLTD BOLT W/NUT

1шт.

19064R11

BOLT

1/2 X 2-1/2" CD-PLTD NO. 3 PLOW BOLT W/NUT

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

15

594738R2

NOSE, boot

1шт.

16

607458R11

REINFORCEMENT

PLATE, boot lower side RH

1шт.

602700R1

SCREW

7/16 X 1-1/4" - 80 DEGREE F-CSK-HD CAP SCREW

1шт.

605275R1

HEX SOC SCREW,Flat Hd, 7/16"-14 x 1 3/8"

7/16 X 1-3/8" - 80 DEGREE F-CSK-HD CAP SCREW

2шт.

605263R1

SCREW

3/8 X 5/8" B-HD CAP SCREW

1шт.

605264R1

SCREW

3/8 X 3/4" B-HD CAP SCREW

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

3/8" EXT-T LK-WASHER

3шт.

114619

7/16" EXT-T LK-WASHER

3шт.

17

607457R11

PLATE

boot lower side LH

1шт.

605263R1

SCREW

3/8 X 5/8" B-HD CAP SCREW

1шт.

605264R1

SCREW

3/8 X 3/4" B-HD CAP SCREW

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

3/8" EXT-T LK-WASHER

3шт.

18

594737R11

PLATE, boot upper LH

1шт.

19

594737R1

PLATE, boot upper RH

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 X 2-1/4" C-Z TYPE 2 BOLT

1шт.

17550R11

BOLT

1/2 X 2-1/4" BOLT W/NUT

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

12026R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

605252R1

BUSHING

SPACER, sprocket

2шт.

21

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

drive shaft bracket

1шт.

22

594730R91

BRACKET, boot drive shaft inner (RH drive - illustrated)

1шт.

22

594731R91

BRACKET, boot drive shaft inner (LH drive - not illustrated)

1шт.

18719R11

BOLT

5/8 X 1-3/4" CD-PLTD CRG BOLT W/NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

594724R11

SUPPORT, main drive chain adjusting

1шт.

24

594717R1

ANGLE, rear pivot support LH

1шт.

18719R11

BOLT

5/8 X 1-3/4" CD-PLTD CRG BOLT W/NUT

1шт.

18728R11

BOLT

5/8 X 6" CD-PLTD CRG BOLT W/NUT

2шт.

608701R1

WASHER

21/32 X 1-1/4 X 16 GA CD-PLTD WASHER

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.
