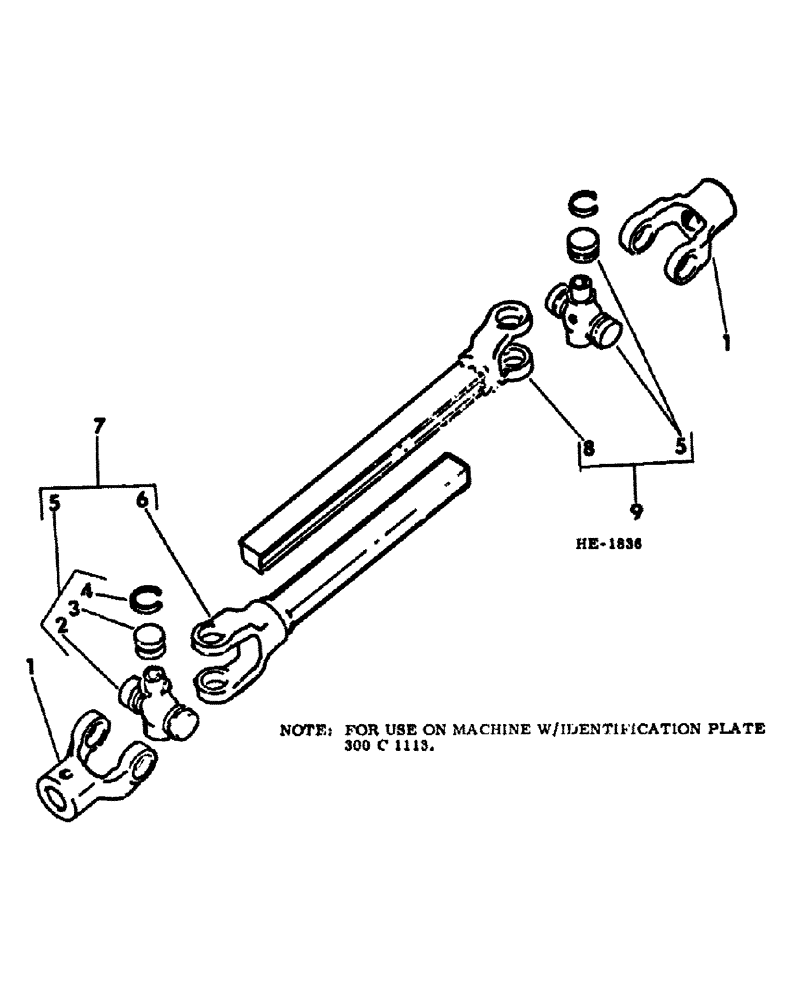

Запчасти Case IH 300 (10-46) - WHEEL DRIVE UNIVERSAL

1

597147R1

YOKE

universal

2шт.

2

CROSS, center, Not serviced separately, For service order 1 - 208959R91, cross assy

2шт.

17238R1

FITTING, 1/4-28 65 deg lub

2шт.

3

BEARING, center cross, Not service separately, For service order 1 - 208959R91, cross assy

1шт.

4

975666R1

RING

snap

8шт.

5

208959R91

KIT

CROSS ASSY, center, Composed of

2шт.

975666R1

RING

4шт.

17238R1

FITTING (NSS)

1шт.

NSS

NOT SOLD SEPARAT

CROSS

1шт.

6

812663C1

YOKE

W/TUBE, half universal

1шт.

7

812612C91

JOINT

ASSY, half universal, Composed of

1шт.

812663C1

YOKE

W/TUBE

1шт.

208959R91

KIT

CROSS

1шт.

8

613472

YOKE W/SHAFT, half universal

1шт.

9

812611C91

JOINT

ASSY, half universal, Composed of

1шт.

613472R91

YOKE

W/SHAFT

1шт.

208959R91

KIT

CROSS

1шт.

126449A1

SHAFT ASSY.

drive, complete

1шт.
