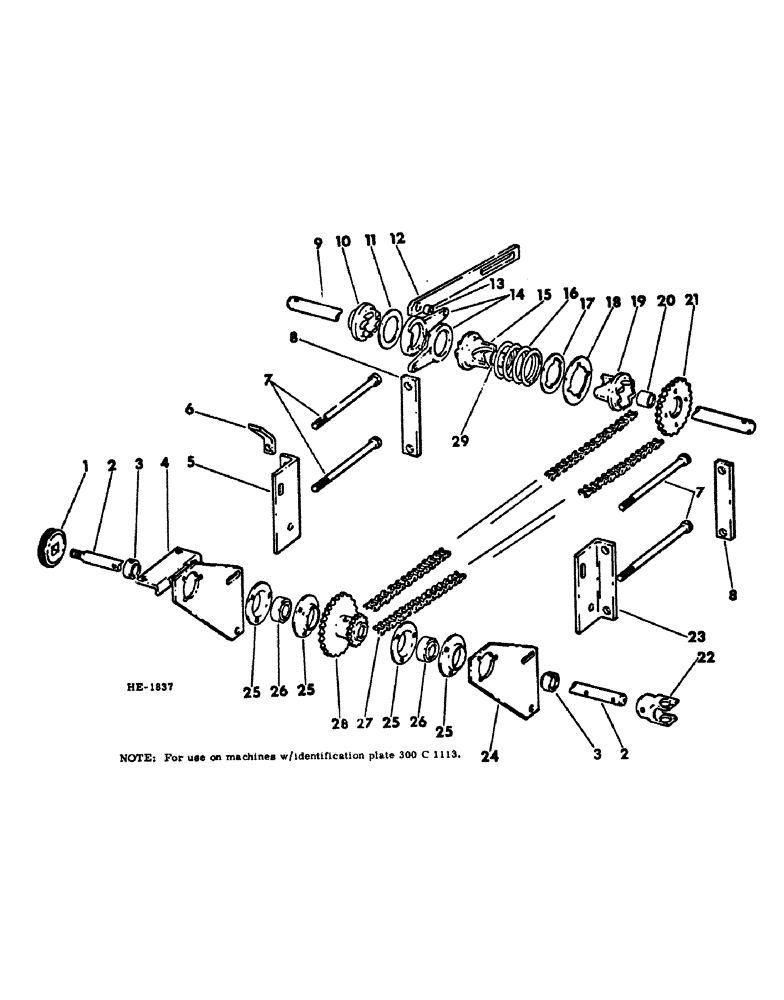

Запчасти Case IH 300 (10-44) - TWO SPEED SEEDING DRIVE

1

604420R1

GEAR

land measure worm

1шт.

2

811529C1

SHAFT

two speed drive

1шт.

3

455102R11

COLLAR

ASSY, bearing locking - includes 1 - 102569, screw

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup-pt hdls set

2шт.

4

811474C1

SUPPORT ASSY, drive front

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

811448C1

ANGLE

drive support RH

1шт.

6

812533C1

SUPPORT, throwout cam stop

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

464323R1

WASHER, .656 x 1.500 x .105

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

7

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

1/2-13 x 7-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

811451C1

BAR

support clamping

2шт.

9

SHAFT, main drive (Refer to "Main drive shaft")

1шт.

10

816028C1

CLUTCH

driver

1шт.

N32207

HEADED PIN,3/8" x 3 3/4"

PIN, 3/8 x 3-3/4 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

816029C1

WASHER,60.45mm ID x 86.36mm OD x 1.9mm Thk

clutch spring

1шт.

12

811439C1

BAR, clutch cam control

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

pipe

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

control bar pipe

1шт.

14

816030C1

CAM

clutch throwout

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

15

816027C11

CLUTCH

ASSY, drive, Includes 1 - 298401R1, bushing

1шт.

16

16026C1

SPRING, clutch

1шт.

17

816025C1

WASHER

clutch cam

1шт.

18

812616C1

WASHER

sprocket clamping

1шт.

19

816033C11

DRIVE SPROCKET

SPROCKET ASSY, 8T clutch, Includes 1 - 289587R1, bushing

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

20

289587R1

BUSHING

sprocket

1шт.

21

811466C1

SPROCKET ASSY.

SPROCKET, 24T driven

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22

597147R1

YOKE

universal

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2" std-hd-dld-spcl

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

23

811447C1

ANGLE

drive support LH

1шт.

24

811437C1

PLATE, drive rear support

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

20601R1

WASHER

.531 x 1.250 x .090

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

25

462360R1

FLANGED BEARING

RETAINER, bearing flangette

4шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 crg

5шт.

134238R1

WASHER

.344 x 1.000 x .054

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

drive shaft

2шт.

CHAIN ASSY, drive, Use 23 links of 1-1/4 inch roller chain from a 10 ft roll 569089R91 and add one offset link 456929R91 and one connecting link 456980R91. Assemble in sequence of two regular links, one offset link, 21 regular links and one connecting link

1шт.

28

811459C1

SPROCKET ASSY.

SPROCKET ASSY, two speed drive

1шт.

Q1331

HEADED PIN,3/8" x 2"

PIN, 3/8 x 2 std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

29

298401R1

BUSHING

drive clutch

1шт.
