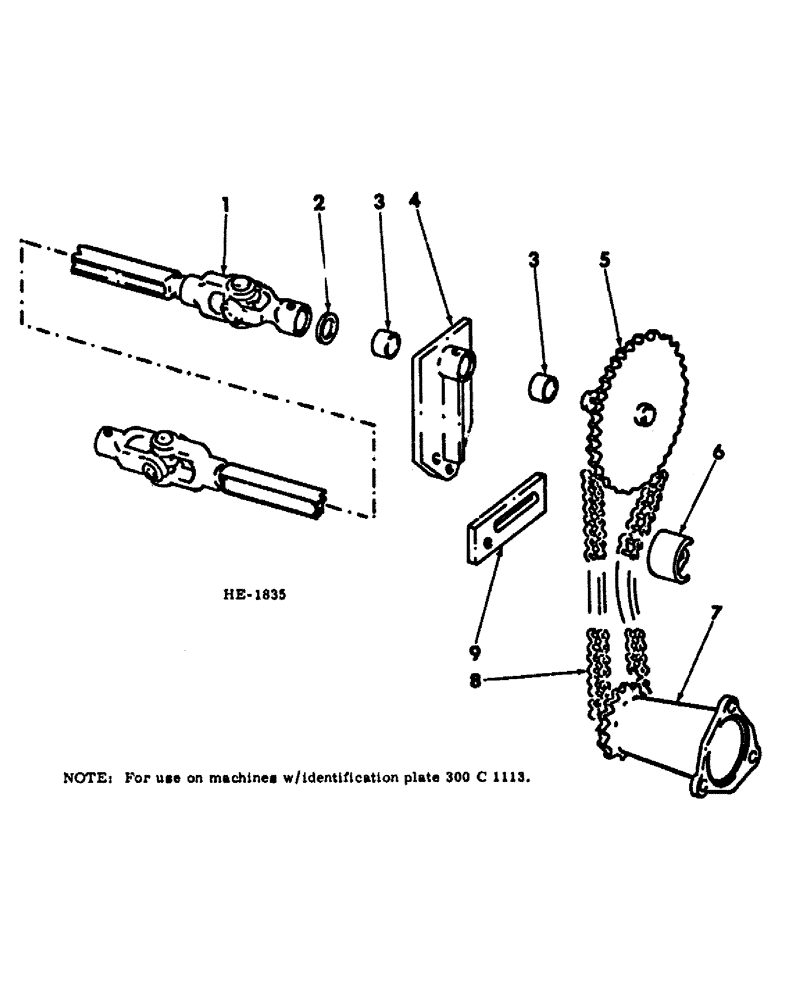

Запчасти Case IH 300 (10-41) - LAND WHEEL GRAIN DRIVE

1

JOINT ASSY, wheel drive universal - for component parts refer to "wheel drive universal"

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2" std-hd-dld-spcl

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

3

811579C1

BUSHING

drive sprocket

2шт.

4

811575C1

SUPPORT, land wheel drive shaft, Includes 2 - 811579C1, bushing

1шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 str drive lub

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" hex-hd

3шт.

5

811456C1

SPROCKET ASSY, 55T wheel driven

1шт.

379990R1

HEADED PIN

PIN, 3/8 x 2" std-hd-dld-spcl

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

583620R1

BLOCK

chain tightener

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16-18 X 1" CRG BOLT

1шт.

134238R1

WASHER

.344 X 1.000 X .054 WASHER

1шт.

120376

NUT,5/16"-18, G5

1шт.

7

596971R1

SPROCKET ASSY.

SPROCKET, 13T land wheel

1шт.

181707

BOLT,Hex, 1/2" - 20 x 2 1/4", Gr 5

1/2-NF X 2-1/4" BOLT

3шт.

591715R1

WASHER

1.031 X 1.500 X .054 WASHER

1шт.

8

CHAIN, land wheel drive - use 39 links of 1-1/4 inch roller chain from a 10 foot roll 569089R91 and add one connecting link 456980R91 and one offset link 456929R91

1шт.

9

811580C1

BAR, chain tightener

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4" HEX-HD BOLT

1шт.
