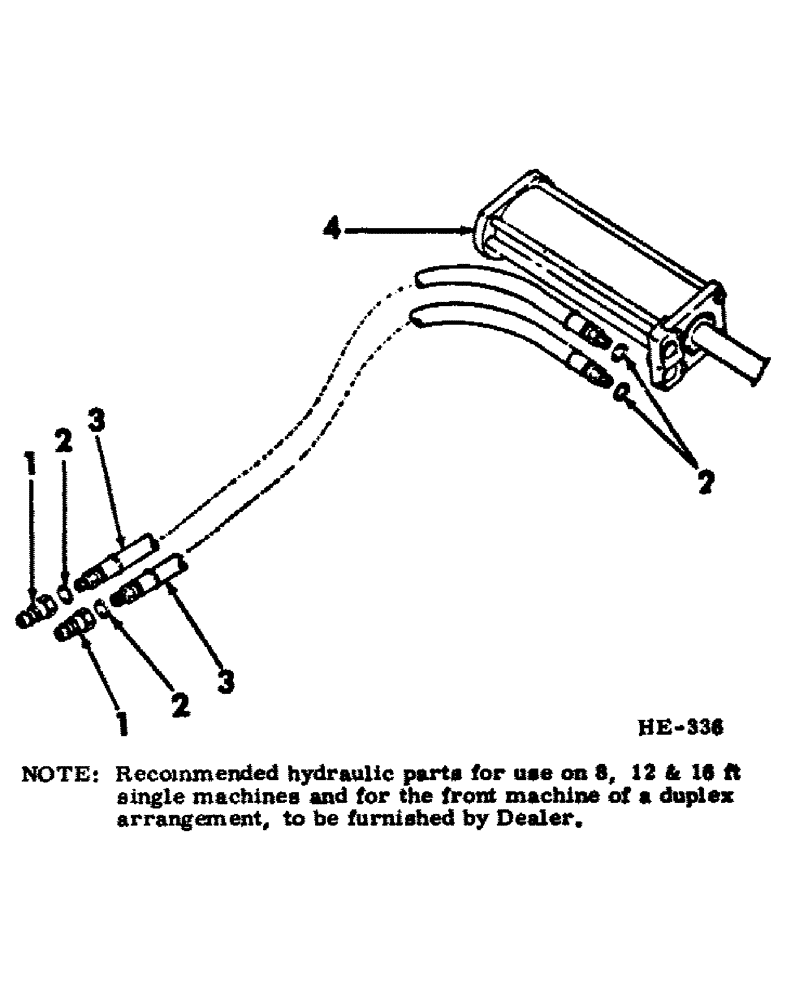

Запчасти Case IH 300 (10-39) - HYDRAULIC CONNECTIONS, (TRACTOR TO REMOTE CONTROL HYDRAULIC

1

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hyd hose

4шт.

3

372437R91

HOSE

1/2 x 112" long hyd (For single machine arrangement)

2шт.

3

478706R91

HOSE ASSY.

HOSE, 1/2 x 175" long hyd (For the front machine of a duplex machine arrangement)

2шт.

4

371292R93

CYLINDER

3-1/2" x 8" remote control hyd (For use w/tractors equipped w/1500 PSI hyd system & lower) (For component parts of this assembly, refer to "remote control hydraulic cylinder" in section 10 of this catalog)

1шт.

4

403842R91

CYLINDER, 3-1/2" x 8" remote control hyd (For use w/tractors equipped w/2000 PSI hyd system & higher) (For component parts of this assembly, refer to "remote control hydraulic cylinder" in section 10 of this catalog)

1шт.

4

546719R91

CYLINDER

3-1/2 x 8" D.A. remote control w/o hyd stroke control (For use w/tractors w/hyd systems rated up to 2500 PSI) (For component parts of this assembly refer to "remote control hydraulic cylinder" in section 10 of this catalog)

1шт.
