Запчасти Case IH 300 (10-38) - DUPLEX HYDRAULIC CONNECTION

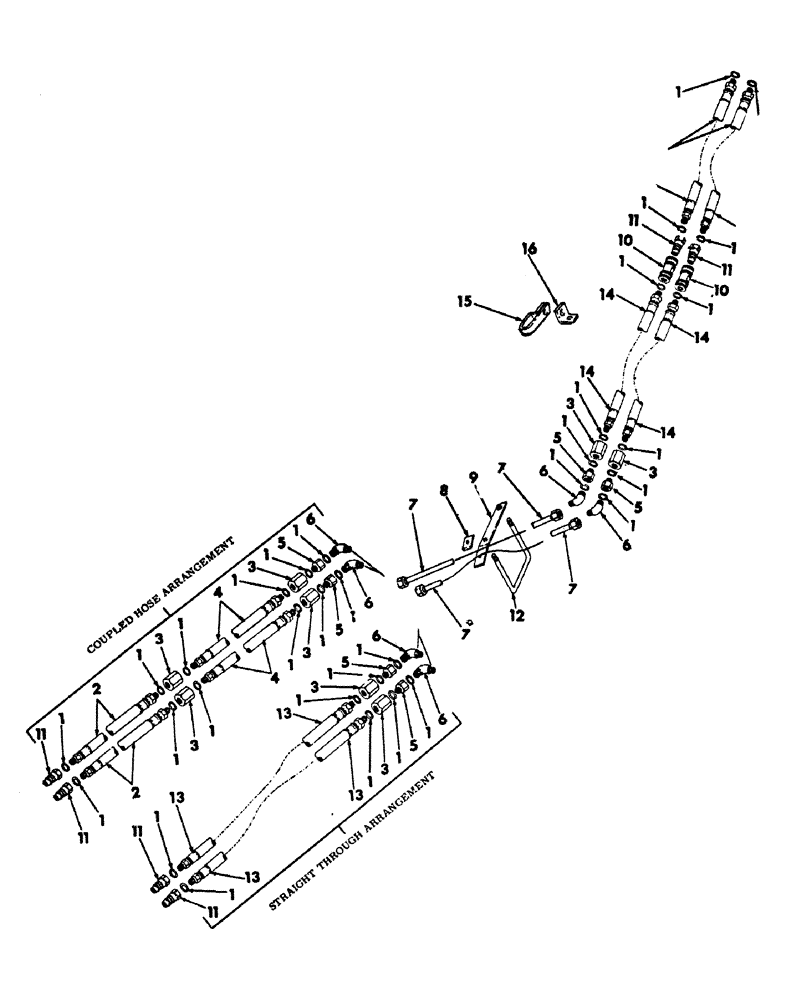

Схема запчастей Case IH 300 - (10-38) - DUPLEX HYDRAULIC CONNECTION

Артикул

Название

Примечание

Количество

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, hyd hose & reducer

8шт.

2

372437R91

HOSE

1/2 x 112" hyd

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

HOSE O-RING

4шт.

3

584802R1

CONNECTOR, ELEC

UNION, hyd hose adaptor

4шт.

4

461165R91

HOSE, 1/2 x 66" hyd

2шт.

5

407045R1

FITTING

UNION, hyd tube reducer

4шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

REDUCER UNION "O" RING

4шт.

6

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

45 degree hyd

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

ELBOW "O" RING

4шт.

7

597135R1

TUBE, hyd connecting (12 & 16 ft front machine) 1" OD, 114" Length

2шт.

7

597136R1

TUBE,1" OD, 54.7" Length

hyd connecting extension (8 ft & 16 ft front machine)

2шт.

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

HYD TUBE EXTENSION UNION (16 & front machine)

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

TUBE UNION "O" RING (16 ft front machine)

4шт.

8

614323R2

CLAMP

hyd connecting tube (2 used - 8 ft) (3 used - 12 & 16 ft front machine, for use on machines w/identification plate 300C1111 or 300C1112) (2 used 12 & 16 ft machines w/identification plate 300C1113)

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

(1 per clamp) Hex, 1/4"-20 x 1 1/2", G5

1шт.

97865H

WASHER

9/32 X 7/8 X 16 GA WASHER (1 per clamp)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per clamp) 1/4"-20, G5

1шт.

9

597137R1

BAR

SUPPORT, hyd connecting tube (2 used - 8 ft) (3 used - 12 & 16 ft front machine for use on machines w/identification plate 300C1111 or 300C1112) (2 used 12 & 16 ft machines w/identification plate 300C1113)

1шт.

10

395150R91

COUPLING, QUICK, FEM

COUPLER, hyd hose female

2шт.

11

395149R1

QUICK MALE COUPLING

COUPLER, hyd hose male

1шт.

12

596905R1

BOLT,U, 5/8" - 11 x 9.63"

"U" BOLT, tube support clamping (2 used 8 ft; 3 used 12 & 16 ft front machine for use on machines w/identification plate 300C1111 or 300C1112) (2 used 12 & 16 ft machines w/identification plate 300C1113)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (2 per U bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (2 per u bolt) 5/8"

1шт.

13

478706R91

HOSE ASSY.

HOSE, 1/2 x 175" hyd

1шт.

14

461165R91

HOSE, 1/2 x 66" hyd rear machine

4шт.

15

126262H1

CLAMP, hyd tube (1 used 12 ft, 2 used 16 ft machine w/identification plate 300C1113)

1шт.

16

598489R1

ANGLE

clamp support (For use on machine w/identification plate 300C1113)

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

97865H

WASHER

.281 x .875 x .054

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

Выбрано товаров: 30
