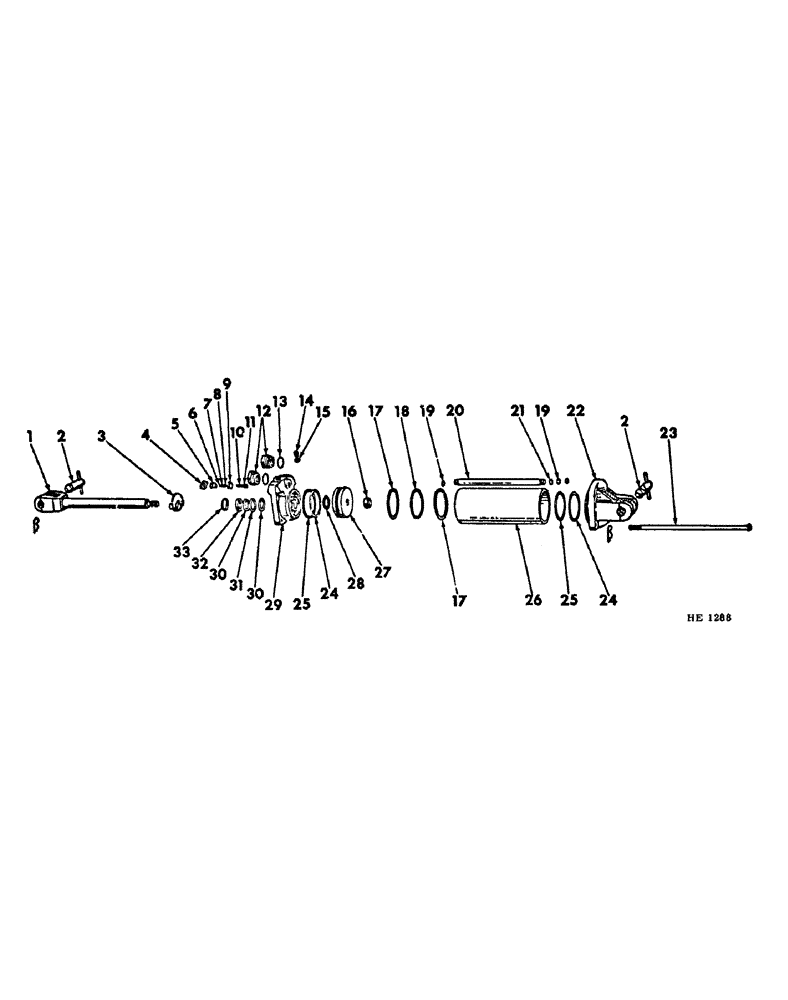

Запчасти Case IH 300 (10-36) - REMOTE CONTROL HYDRAULIC CYLINDER

403842R92

CYLINDER, remote control hyd (Composed of all parts listed below)

1шт.

1

547661R1

ROD

hyd cyl piston

1шт.

2

547659R1

PIN

hyd cyl pivot

2шт.

547660R1

RETAINER

SPRING

4шт.

3

404034R1

CLAMP

stroke limit (Includes 1 - 181595, screw)

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-NF X 3/4" CAP SCREW

1шт.

4

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4 X 9/16" CAP SCREW

2шт.

5

404024R91

HOUSING

limit stop valve, Composed of:

1шт.

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

404027R1

RETAINER

1шт.

404026R1

BACK-UP RING

1шт.

HOUSING (NSS)

1шт.

6

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

3/16 x 5/16 x 1/16" limit stop valve housing

1шт.

7

404026R1

BACK-UP RING

o-ring back-up

1шт.

8

404027R1

RETAINER

limit stop valve o-ring

1шт.

9

404028R1

BACK-UP RING

valve housing o-ring back-up

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32" limit stop valve housing

1шт.

11

404029R1

LOCK VALVE

VALVE, limit stop

1шт.

12

9410360

PLUG

7/8" o-ring boss

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 X 15/16 X 3/32" O-RING

2шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32" boss plug

2шт.

14

404033R1

PLUG

hyd cyl front hd

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

2шт.

16

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8"-NF lk

1шт.

17

375936R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

18

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 1/8" piston

1шт.

19

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back-up

2шт.

20

404023R1

TUBE

hyd cyl return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32" return tube

2шт.

22

547662R1

HEAD

hyd cyl rear

1шт.

23

404022R1

ROD,5/8" - 11 x 14"

hyd cyl tie

4шт.

120639

5/8" NUT

8шт.

24

404015R1

BACK-UP RING

WASHER, o-ring back-up

2шт.

25

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8" front & rear head

2шт.

26

404021R1

SLEEVE, hyd cyl

1шт.

27

404019R1

PISTON

hyd cyl

1шт.

28

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8" piston rod

1шт.

29

404014R1

HEAD

hyd cyl front

1шт.

30

403622R1

BACK-UP RING

WASHER, piston rod quad ring back-up

2шт.

31

400744R1

RING

piston rod quad

1шт.

32

383770R1

WASHER

WIPER, piston rod

1шт.

33

383771R1

SEALING WASHER

RETAINER, piston rod wiper

1шт.

527324R91

STRIPPER PACKAGE

PACKAGE, hyd cyl o-ring & seal service, Composed of:

1шт.

343940R1

O-RING,3.234" ID x 0.139" Width

2шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

RING

1шт.

400744R1

RING

1шт.

404015R1

BACK-UP RING

WASHER

2шт.

375936R1

BACK-UP RING

WASHER

2шт.

403622R1

BACK-UP RING

WASHER

1шт.

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

2шт.

404026R1

BACK-UP RING

1шт.

404028R1

BACK-UP RING

1шт.

383770R1

WASHER

WIPER

1шт.
