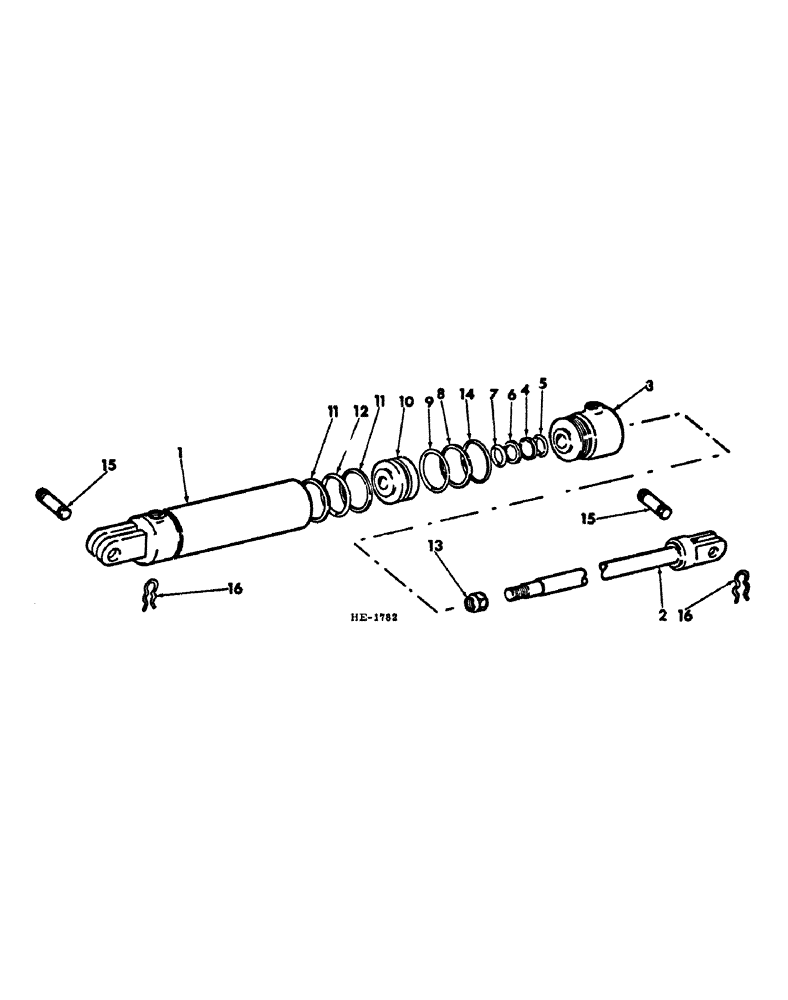

Запчасти Case IH 300 (10-35) - REMOTE CONTROL HYDRAULIC CYLINDER

546719R91

CYLINDER

ASSY, remote control hydraulic - opt to use 1 - 371292R94, cylinder or 1 - 403842R92, cylinder - includes parts listed below

1шт.

1

547711R1

BODY ASSY, hyd cyl

1шт.

2

547719R1

ROD

ASSY, piston

1шт.

3

547722R1

HEAD

hyd cyl front

1шт.

4

386421R1

WASHER

wiper felt

1шт.

5

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

retainer

1шт.

6

546279R1

WASHER

back-up

1шт.

7

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1-1/4 x 1-1/2 x 1/8 piston seal

1шт.

8

404015R1

BACK-UP RING

WASHER, back-up

1шт.

9

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8 front head

1шт.

10

547724R1

PISTON

hyd cyl

1шт.

11

375936R1

BACK-UP RING

WASHER, back-up

2шт.

12

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16

1шт.

13

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

14

405002R1

RING

RETAINER, front head

1шт.

15

547659R1

PIN

cyl pivot

2шт.

16

547660R1

RETAINER

spring

4шт.

547725R91

SEAL KIT

PACKAGE, hyd cyl seal ring, Composed of:

1шт.

9413974

LOCK NUT,7/8"-14, GB

NUT

1шт.

343940R1

O-RING,3.234" ID x 0.139" Width

1шт.

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

405002R1

RING

RETAINER

1шт.

386421R1

WASHER

1шт.

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

1шт.

404015R1

BACK-UP RING

WASHER

1шт.

546279R1

WASHER

1шт.

375936R1

BACK-UP RING

WASHER

2шт.
