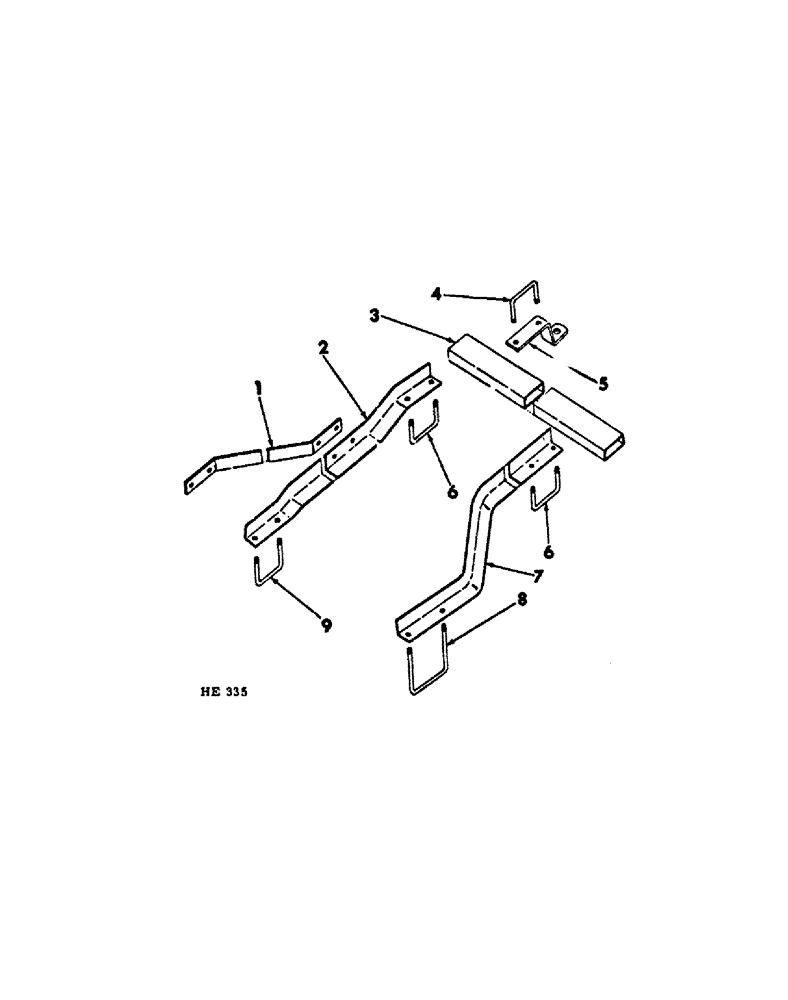

Запчасти Case IH 300 (10-33) - PACKER HITCH ATTACHMENT

1

597141R1

BRACE

front support

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

5/8 X 1-1/2" BOLT

2шт.

21136R1

5/8 X 6-1/4" BOLT Hex, 5/8"-11 x 6 1/4", G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

597140R1

SUPPORT

hitch tube front

1шт.

3

598092R1

TUBE, 8 ft machine packer hitch

1шт.

3

597143R1

TUBE

12 ft machine packer hitch

1шт.

3

597144R1

TUBE

16 ft machine packer hitch

1шт.

4

597145R1

BOLT,U, 1/2" - 13 x 3 1/8"

U-BOLT, hitch brace clamping (1 used per brace)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (2 per bolt) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per bolt 1/2"

1шт.

5

597146R1

BRACE

packer hitch (2 used 8 ft; 3 used 12 ft; 4 used 16 ft machine)

1шт.

6

597145R1

BOLT,U, 1/2" - 13 x 3 1/8"

U-BOLT, hitch tube clamping (2 used 8 & 12 ft; 3 used 16 ft machine)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (2 per bolt) 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per bolt 1/2"

1шт.

7

597142R1

SUPPORT

hitch tube rear (1 used 8 & 12 ft; 2 used 16 ft machine)

1шт.

8

596905R1

BOLT,U, 5/8" - 11 x 9.63"

U-BOLT, support clamping (1 used 8 & 12 ft; 2 used 16 ft machine)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT (2 per bolt)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (2 per bolt) 5/8"

1шт.

9

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

support clamping

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
