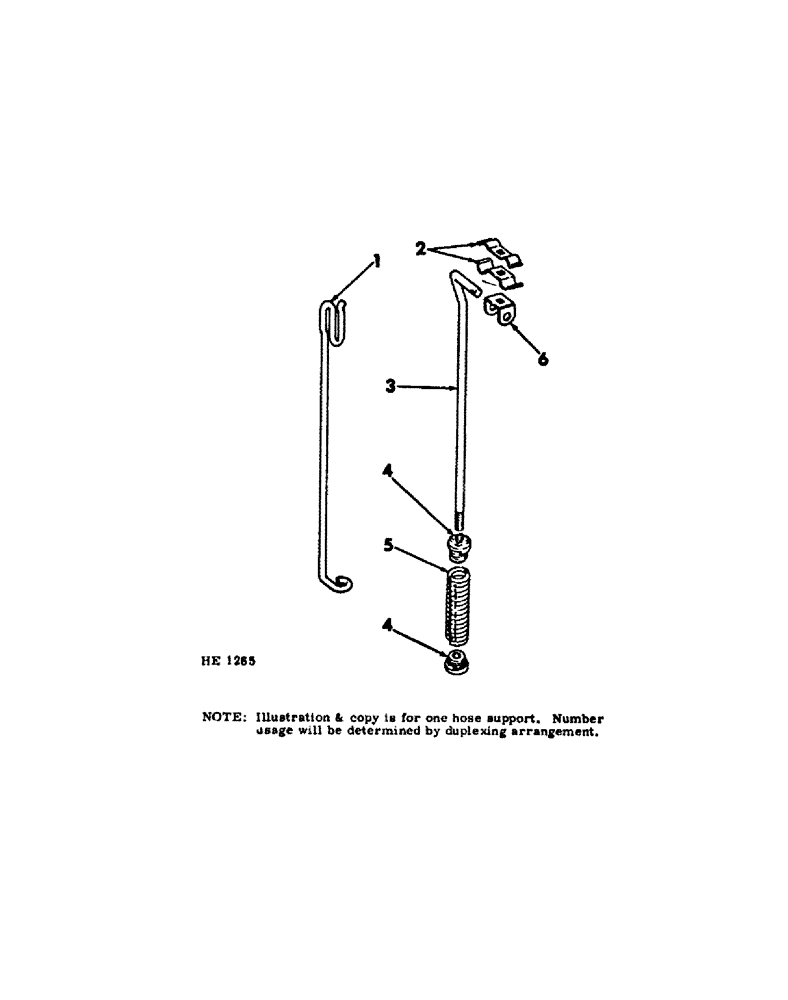

Запчасти Case IH 300 (10-33[A]) - HYDRAULIC HOSE SUPPORT

1

651793R1

SUPPORT

flexible hyd hose (For use on machines built 1967 season)

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8 X 2-1/4" BOLT

1шт.

464623

SPACER

21/32 X 1-1/2 X 11 GA WASHER

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

1шт.

2

515030R1

CLAMP

hose support (For use on machines built 1967 season & since)

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8 X 1-3/4" CRG BOLT

1шт.

126032

WING NUT,3/8"-16

3/8" WING NUT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

515028R1

ROD

hose support (For use on machines built 1967 season & since)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

SA1378A

PLUG

hose support spring (For use on machines built 1967 & since)

2шт.

5

515031R11

SPRING

hose support (Includes 2-SA 1378A plug) (For use on machines built 1967 season & since)

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 X 2" BOLT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

515029R1

BRACKET

hose clamp (For use on machines built 1967 season & since)

1шт.
