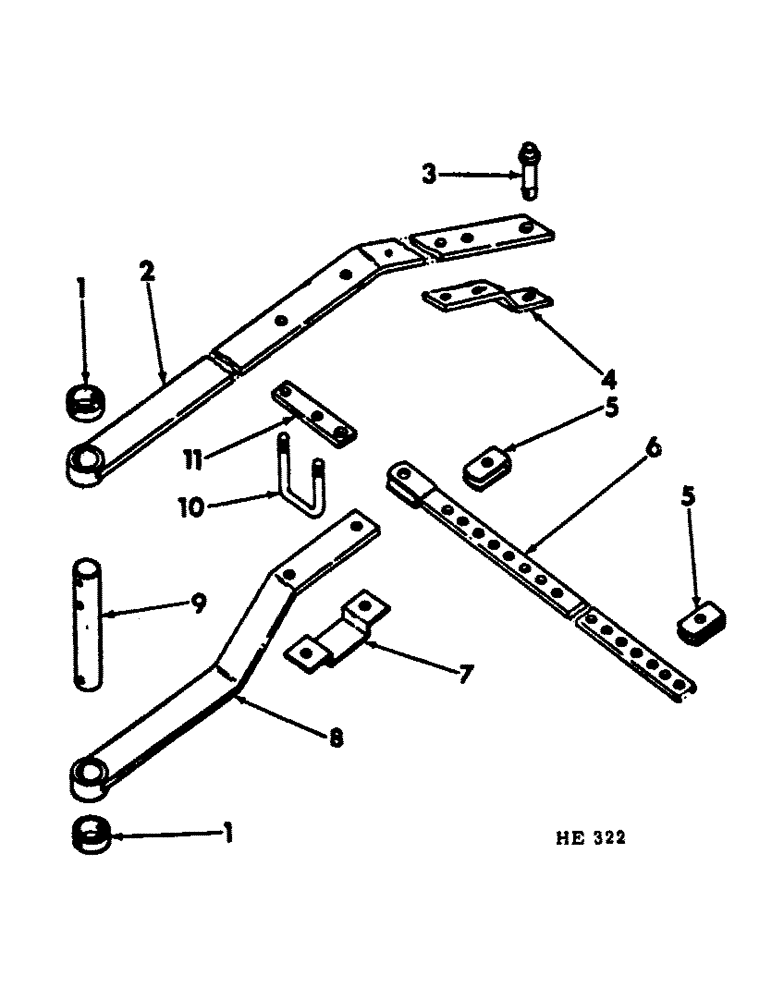

Запчасти Case IH 300 (10-32) - DUPLEX HITCH STABILIZER

1

604738R1

BUSHING

SPACER, pivot bar

2шт.

Q846

PIN,7/16" x 3 3/8"

7/16 X 3-3/8" STD-HD-DLD PIN

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

2

597087R1

BAR

hitch connecting upper

1шт.

3

597094R1

PIN

hitch connecting

1шт.

478258R1

WASHER

1-5/32 X 1-3/4 X 11 GA WASHER

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

4

597093R1

BRACE

hitch connecting

1шт.

271858

SUPPORT

1 X 2-3/4" BOLT

2шт.

9849633

NUT,1"-8, G5

2шт.

5

597168R1

YOKE

hitch bar strap

2шт.

K156

HEADED PIN,5/8" x 2 1/8"

5/8 X 2-1/8" STD-HD-DLD PIN

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

6

597085R1

BAR

stabilizer adjusting

1шт.

520970R1

PIN,3/4" x 2 1/4"

3/4 X 2-1/4" STD-HD-DLD PIN

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

597092R1

CHANNEL

hitch bar clamping

1шт.

271861

O-RING,Hex, 1" - 8 x 3 1/2", Gr 5

1 X 3-1/2" BOLT

2шт.

9849633

NUT,1"-8, G5

2шт.

8

597090R1

BAR

hitch connecting lower

1шт.

9

597096R1

BAR

rear furrow wheel beam pivot (12 ft & 16 ft machine)

1шт.

Q846

PIN,7/16" x 3 3/8"

7/16 X 3-3/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

9

597097R1

BAR

rear furrow wheel beam pivot (20, 24, 28 & 32 ft machines)

1шт.

Q846

PIN,7/16" x 3 3/8"

7/16 X 3-3/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

597023R1

BOLT,U, 5/8" - 11 x 7.50"

U-BOLT, stabilizer bar

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8" NUT

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

597084R1

BAR

hitch connecting stabilizer

1шт.
