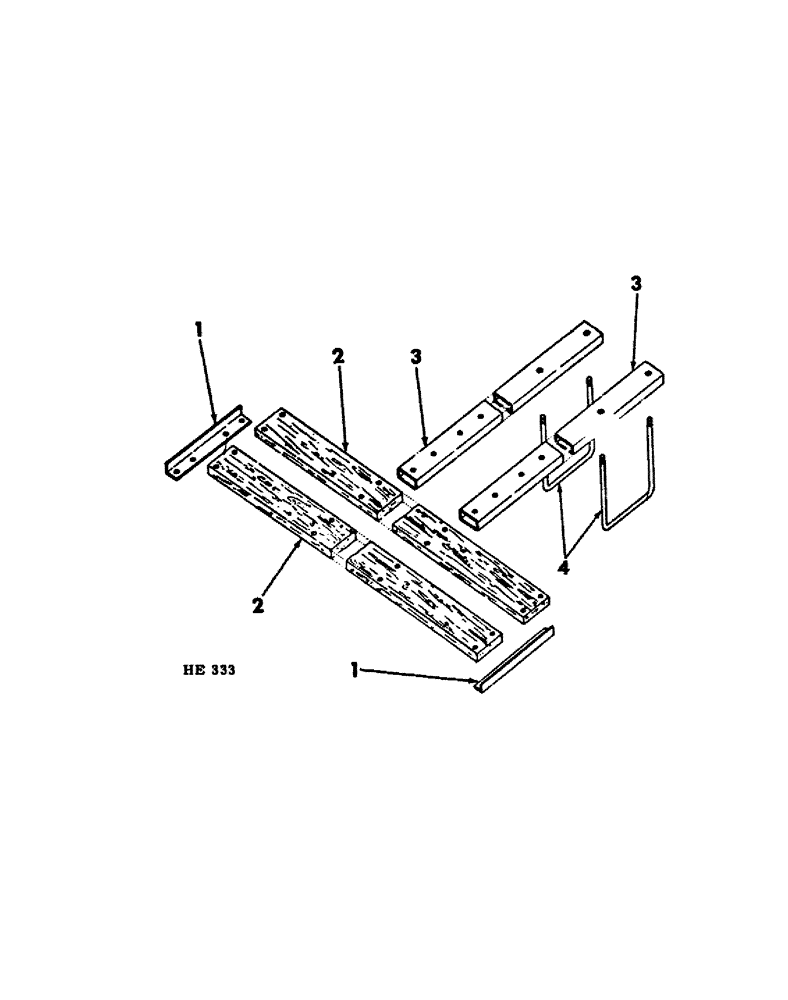

Запчасти Case IH 300 (10-31) - FOOTBOARD ATTACHMENT

1

597111R1

ANGLE

footboard end reinforcement

2шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

5/16 X 2-1/4" TYPE 1 CRG BOLT

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

589091R1

BOARD, foot (8 ft machine)

2шт.

18477R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2

5/16 X 3-1/2" TYPE 1 CRG BOLT

8шт.

120376

NUT,5/16"-18, G5

8шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

597010R1

BOARD

foot (12 ft machine)

2шт.

18477R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2

5/16 X 3-1/2" TYPE 1 CRG BOLT

8шт.

120376

NUT,5/16"-18, G5

8шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

597011R2

BOARD

foot (16 ft machine)

2шт.

18477R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2

5/16 X 3-1/2" TYPE 1 CRG BOLT

12шт.

120376

NUT,5/16"-18, G5

12шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

3

597008R1

TUBE

footboard mtg (2 used on 8 & 12 ft machine) (3 used on 16 ft machine)

1шт.

4

597009R1

BOLT

U-BOLT, mtg tube clamping (2 used on 8 & 12 ft machine) (3 used 16 ft machine)

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, (2 used per bolt) 1/2"-13, G5

1шт.

460908R1

WASHER

17/32 X 1-1/2 X 11 GA WASHER (2 used per bolt)

1шт.

120384

WASHER,1/2"

LOCK, , 2 used per bolt 1/2"

1шт.
