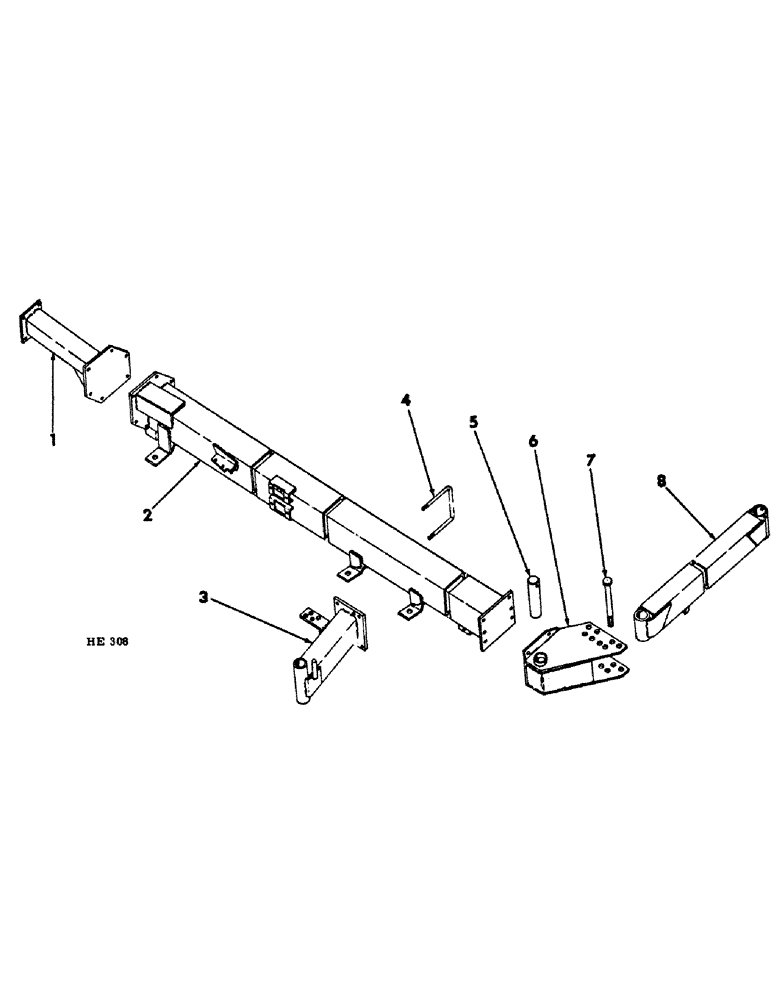

Запчасти Case IH 300 (10-02) - MAIN FRAME AND BRACKETS

1

596816R1

BRACKET

front furrow wheel

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 X 2" BOLT

6шт.

280954

NUT,3/4"-10, G5

6шт.

2

598084R1

FRAME, 8 ft size main

1шт.

2

596725R1

FRAME

12 ft size main

1шт.

2

596745R1

FRAME

16 ft size main

1шт.

3

596835R2

BRACKET

land wheel

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

4

596842R1

BOLT,U, 3/4" - 10 x 7.50", Gr 2

U-BOLT, land wheel bracket mtg (2 used 8 ft) (3 used 12 ft & 16 ft)

1шт.

280954

NUT,3/4"-10, G5

2 used per bolt 3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 used per bolt

1шт.

5

597096R1

BAR

rear furrow wheel beam pivot (12 & 16 ft machines) (When duplexing machines used 597097R1, bar)

1шт.

Q846

PIN,7/16" x 3 3/8"

7/16 X 3-3/8" STD-HD-DLD PIN

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

597097R1

BAR

rear furrow wheel beam pivot (Use when duplexing machines)

1шт.

604738R1

BUSHING

PIVOT BAR SPACER

2шт.

Q846

PIN,7/16" x 3 3/8"

7/16 X 3-3/8" STD-HD-DLD PIN

3шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

3шт.

6

596806R1

BRACKET

rear furrow wheel beam

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 X 2" BOLT

6шт.

280954

NUT,3/4"-10, G5

6шт.

7

21466R1

BOLT,Hex, 1"-8 x 8 1/2", G5

1 x 8-1/2" rear furrow wheel beam

2шт.

9849633

NUT,1"-8, G5

2шт.

8

596810R2

BEAM

rear furrow wheel

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

599744R1

AXLE PIN

QUICK-ATTACHABLE C-PIN

1шт.
