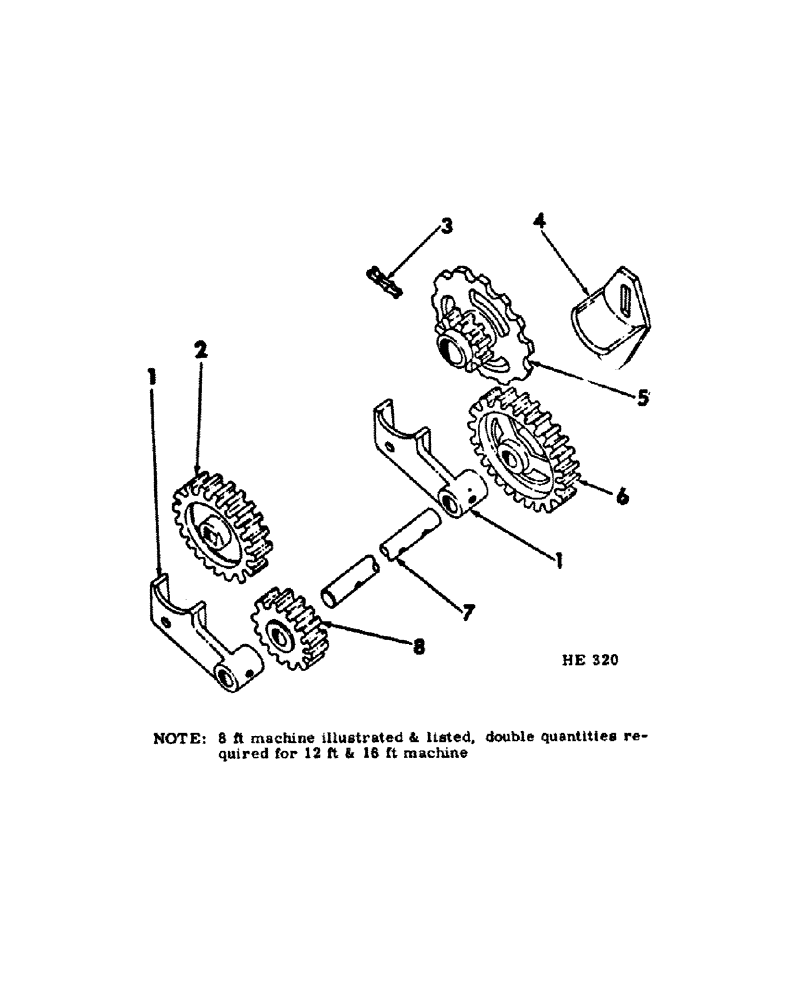

Запчасти Case IH 300 (10-30) - FERTILIZER SEEDING DRIVE

1

597005R1

BEARING HOUSING,0.755" ID x 1.25" OD x 1.25"

fertilizer drive counter shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

3/8 X 1-1/4" NO. 3 PLOW BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

603465R2

GEAR

20T feed shaft (For use on machines built prior to March, 1969 season)

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16 X 3/8" HDLS CUP-PT SET SCREW

1шт.

2

598996R1

GEAR

16T feed shaft (For use on machines built March, 1969 season & since) (1 used 8 ft machine), (2 used 12 ft & 16 ft machine)

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16 X 3/8" HDLS-CUP-PT-SET SCREW (1 used per gear)

1шт.

3

CHAIN, 1" pitch standard fertilizer drive (For service order 1 - 569088R91 10 ft chain, reduce to 25 links, add 1 - 457113R91, connecting link and 1 - 457114R91, offset link)

1шт.

4

596954R1

TIGHTENER, fertilizer drive chain

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

596999R1

GEAR

10T & 15T feed shaft spur

1шт.

271293

PULLEY

5/16" LUB-FITTING

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

21/32 SQ HOLE 1-1/4 X 16 GA WASHER

1шт.

6

603460R1

GEAR

24T fertilizer drive spur

1шт.

U5348

PIN

1/4 X 1-1/2" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

597004R1

SHAFT

fertilizer drive counter

1шт.

178375R1

WASHER

25/32 X 1-1/4 X 16 GA WASHER

1шт.

366112R1

WASHER

25/32 X 1-1/4 X 11 GA WASHER

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

8

603464R1

GEAR

14T fertilizer drive pinion (For use on machines built prior to March, 1969 season)

1шт.

U5348

PIN

1/4 X 1-1/2" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

8

598997R1

GEAR

18T drive pinion (For use on machines built March, 1969 season & since)

1шт.

U5348

PIN

1/4 X 1-1/2" STD-HD-DLD PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
