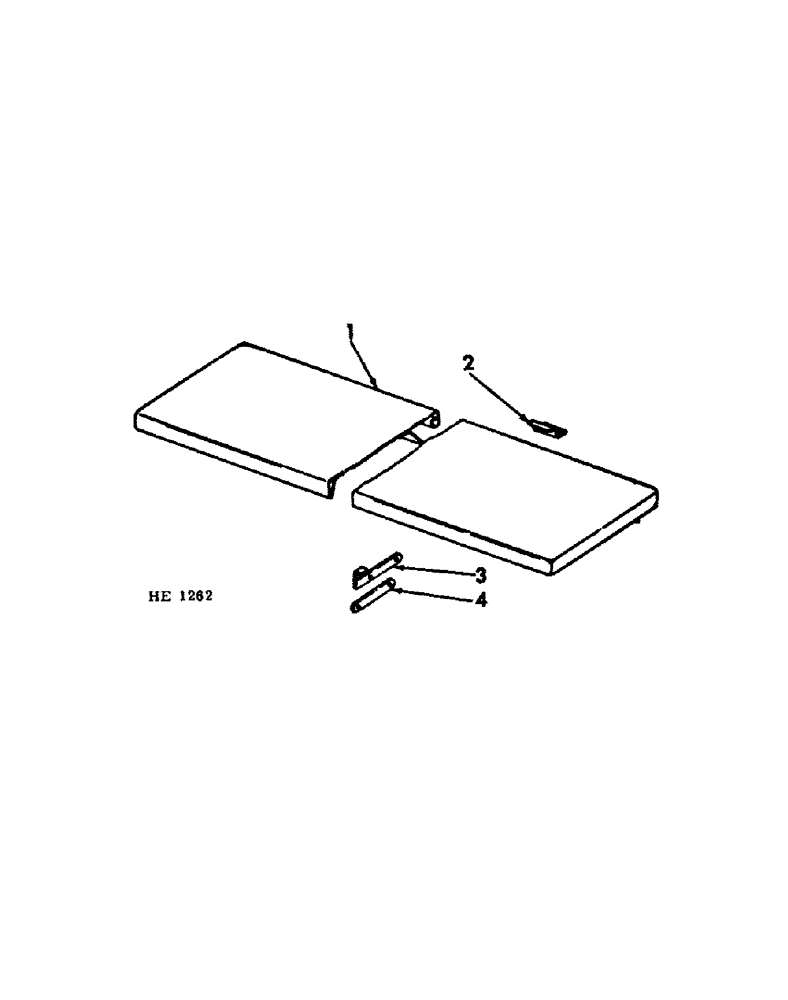

Запчасти Case IH 300 (10-30[A]) - FERTILIZER HOPPER LID

1

596989R1

COVER, hopper (1 used 8 ft; 2 used 16 ft machine)

1шт.

1

596992R1

COVER, hopper (12 ft machine)

1шт.

2

603026R1

HINGE

hopper lid (4 used 8 ft; 6 used 12 ft; 8 used 16 ft machine)

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 X 5/8" SLT-PAN-HD SCREW (2 per hinge)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per screw) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per screw) 1/4"

1шт.

3

603495R11

STRAP, lid upper hinge (1 used 8 & 12 ft; 2 used 16 ft machine)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per strap 3/16" x 1"

1шт.

4

603496R1

STRAP, lid lower hinge (1 used 8 & 12 ft; 2 used 16 ft machine)

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 X 1/2" SMALL B-HD RIVET (1 per strap)

1шт.

615002R1

WASHER

13/64 X 1/2 X 16 GA WASHER (2 per rivet)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per strap 3/16" x 1"

1шт.
