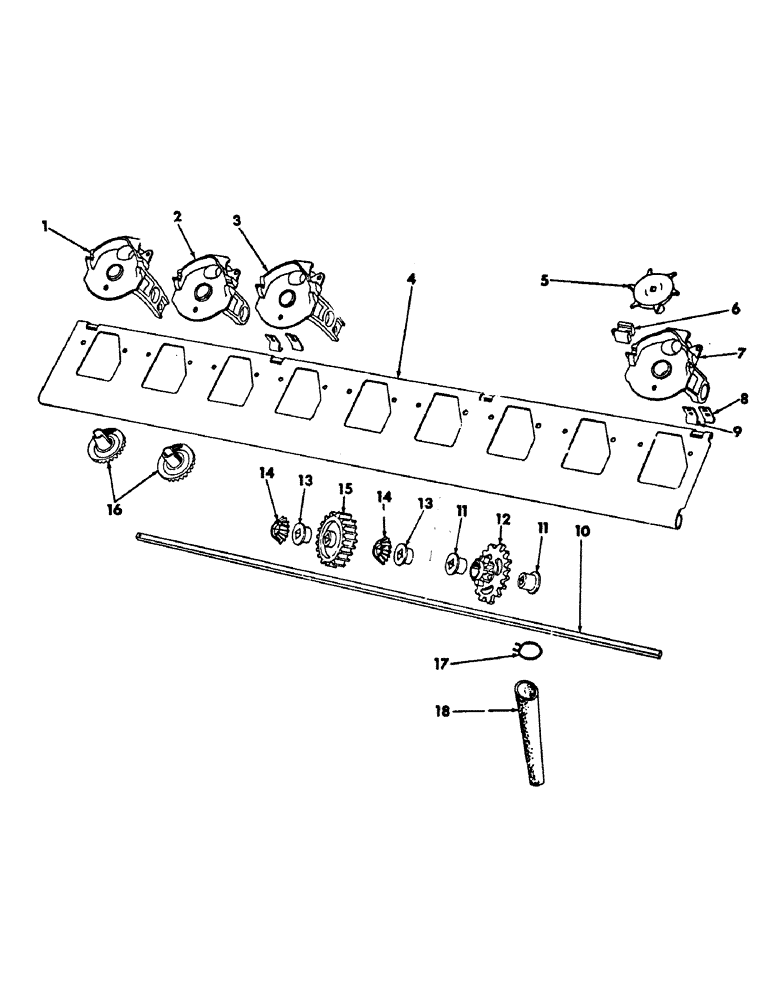

Запчасти Case IH 300 (10-28) - FERTILIZER FEEDSHAFT

1

603451R1

PLATE

drop bottom end LH (1 used on 8 ft machine) (2 used on 12 & 16 ft machine)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 X 5/8" BOLT (2 per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(3 per plate) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (3 per plate) 1/4"

1шт.

2

603454R1

PLATE

W/HANGER, drop bottom (2 used on 8 ft machine) (4 used on 12 & 16 ft machine)

1шт.

180018

CONNECTING LINK

1/4 X 5/8" BOLT (2 used per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 used per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 used per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per bolt) 1/4"

1шт.

3

603453R1

PLATE

drop bottom intermediate (12 used on 8 ft machine) (16 used on 12 ft machine) (24 used on 16 ft machine)

1шт.

180018

CONNECTING LINK

1/4 X 5/8" BOLT (2 per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(3 per plate) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (3 per plate) 1/4"

1шт.

4

596993R1

BOTTOM, drop (8 ft machine)

1шт.

4

604191R11

BOTTOM, drop LH (12 ft machine)

1шт.

4

604192R11

BOTTOM, drop RH (12 ft machine)

1шт.

4

596993R1

BOTTOM, drop (16 ft machine)

2шт.

5

602554R11

DRIVE SPROCKET

WHEEL, fertilizer feed (Includes 1 - N62414, pin) (16 used on 8 ft machine) (24 used on 12 ft machine) (32 used on 16 ft machine)

1шт.

N62414

PIN,3.96mm OD x 28mm L

WHEEL SHEAR PIN (1 per wheel)

1шт.

6

603457R1

SPACER

bottom plate (5 used on 8 ft machine) (12 used on 12 ft machine) (10 used on 16 ft machine)

1шт.

6

604130R1

PLATE

SPACER, bottom plate (10 used on 8 & 12 ft machine) (20 used on 16 ft machine)

1шт.

7

603452R1

PLATE

drop bottom end RH (1 used on 8 ft machine) (2 used on 12 & 16 ft machine)

1шт.

180018

CONNECTING LINK

1/4 X 5/8" BOLT (2 per plate)

1шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8", 1 per plate

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(3 per plate) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (3 per plate) 1/4"

1шт.

8

604403R1

CLAMP

STOP, drop bottom hinge front (6 used on 8 ft machine) (10 used on 12 ft machine) (12 used on 16 ft machine)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT (1 per stop)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

9

604404R1

CLAMP

STOP, drop bottom hinge rear (6 used on 8 ft machine) (10 used on 12 ft machine) (12 used on 16 ft machine)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 X 3/4" CRG BOLT (1 per stop)

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 per bolt) 1/4"

1шт.

10

596996R1

BAR

fertilizer feed shaft (8 ft machine)

1шт.

10

596997R1

BAR, fertilizer feed shaft (12 ft machine)

2шт.

10

596996R1

BAR

fertilizer feed shaft (16 ft machine)

2шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 X 7/8" SQ-END PIN (1 per bar)

1шт.

21867R1

SQ HOLE WASHER,19/32" x 1" x .060", Sq Hole

19/32 SQ-HOLE X 1 X 16 GA PLAIN WASHER

2шт.

11

596998R1

TRUNNION

spur gear (2 used on 8 ft machine) (4 used on 12 & 16 ft machine)

1шт.

12

596999R1

GEAR

10T & 15T spur (1 used on 8 ft machine) (2 used on 12 & 16 ft machine)

1шт.

219-28

LUBE NIPPLE,5/16" - 32

5/16" LUB-FITTING (1 per gear)

1шт.

22810R1

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

21/32 SQ-HOLE X 1-1/4 X 16 GA WASHER (2 per gear)

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , 1 per gear 3/16" x 1"

1шт.

13

603462R1

TRUNNION

bevel pinion (16 used on 8 ft machine) (24 used on 12 ft machine) (32 used on 16 ft machine)

1шт.

14

603463R1

GEAR

PINION, 12T bevel (16 used on 8 ft machine) (24 used on 12 ft machine) (32 used on 16 ft machine)

1шт.

15

603465R2

GEAR

20T feed shaft (For use on machines built prior to March, 1969 season) (1 used on 8 ft machine) (2 used on 12 & 16 ft machine)

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16 X 3/8" HDLS CUP-PT SET SCREW (1 per gear)

1шт.

15

598996R1

GEAR

16T feed shaft (For use on machines built March, 1969 season & since) (1 used 8 ft machine) (2 used 12 ft & 16 ft machine)

1шт.

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

5/16 X 3/8" HDLS CUP-PT SET SCREW (1 used per gear)

1шт.

16

F282C

GEAR

feed shaft bevel (16 used 8 ft machine) (24 used 12 ft machine) (32 used 16 ft machine)

1шт.

17

603591R1

SPRING

delivery tube (1 per tube)

1шт.

18

597000R1

TUBE

fertilizer delivery (16 used 8 ft machine) (24 used 12 ft machine) (32 used 16 ft machine)

1шт.
