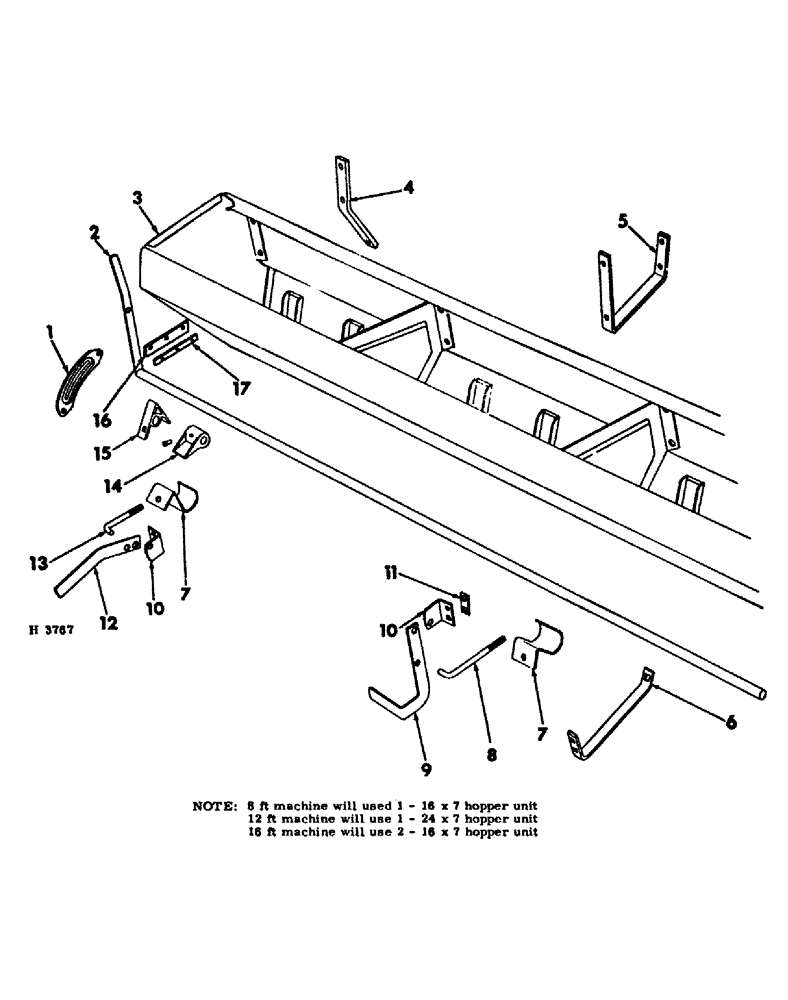

Запчасти Case IH 300 (10-26) - FERTILIZER HOPPER
№
Артикул
Название
Примечание
Количество
1
604129R1
INDICATOR
PLATE, fertilizer indicator (1 used 8 ft machine; 2 used 16 ft machine)
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
(2 used per plate) Hex, 1/4"-20 x 3/4", G5, Full Thd
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
(1 used per bolt) 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, (1 used per bolt) 1/4"
1шт.
1
604128R1
INDICATOR
PLATE, indicator LH (12 ft machine)
1шт.
1
604129R1
INDICATOR
PLATE, indicator RH (12 ft machine)
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
2
597001R1
ROD, fertilizer gate (8 ft machine)
1шт.
2
597001R1
ROD, fertilizer gate (16 ft machine)
2шт.
2
604136R1
ROD, fertilizer gate (12 ft machine)
2шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
5/16 X 3/4" CRG BOLT (1 per rod)
1шт.
7500032
BUSHING
5/16" WING NUT (1 per rod)
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, (1 per rod) 5/16"
1шт.
3
596980R1
HOPPER, (16 x 7) (8 ft machine)
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
1/4 X 1/2" CRG BOLT
4шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
3/8 X 1/2" BOLT
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 X 1-1/4" BOLT
2шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 X 1-1/2" BOLT
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
6шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
3
596986R2
HOPPER, (24 x 7) (12 ft machine)
1шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
3/8 X 1/2" BOLT
4шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 X 1-1/4" BOLT
4шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 X 1-1/2" BOLT
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
6шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
3
596980R2
HOPPER (16 x 7) (16 ft machine)
2шт.
180018
CONNECTING LINK
1/4 X 5/8" BOLT
4шт.
180116
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5
3/8 X 1/2" BOLT
4шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 X 1-1/4" BOLT
4шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 X 1-1/2" BOLT
8шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
16шт.
120377
NUT,3/8" - 16, Gr 5
16шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
16шт.
4
604146R1
SUPPORT, spacer LH (1 on 8 & 12 ft machine) (2 on 16 ft machine)
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 X 1-1/4" BOLT (3 per support)
1шт.
120377
NUT,3/8" - 16, Gr 5
(1 per bolt) 3/8"-16, G5
1шт.
4
604147R1
SUPPORT, spacer RH (1 on 8 & 12 ft machine) (2 on 16 ft machine)
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 X 1-1/4" BOLT (3 per support)
1шт.
120377
NUT,3/8" - 16, Gr 5
(1 per bolt) 3/8"-16, G5
1шт.
5
604150R1
BRACE, hopper main inner (2 used on 8 & 12 ft machine) (4 used on 16 ft machine)
1шт.
120377
NUT,3/8" - 16, Gr 5
(1 per bolt) 3/8"-16, G5
1шт.
6
603594R1
BRACE, hopper inner (2 used on 8 ft machine) (3 used on 12 ft machine) (4 used on 16 ft machine)
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 X 3/4" CRG BOLT (1 per brace)
1шт.
120377
NUT,3/8" - 16, Gr 5
(1 per bolt) 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
7
603497R1
CATCH
drop bottom lever rod (5 used on 8 ft machine) (9 used on 12 ft machine) (10 used on 16 ft machine)
1шт.
8
603470R1
BOLT,3/8" - 16 x 5.1", Steel
drop bottom lever long (2 used on 8 & 12 ft machine) (4 used on 16 ft machine)
1шт.
120377
NUT,3/8" - 16, Gr 5
(1 per rod) 3/8"-16, G5
1шт.
9
603501R1
LEVER
drop bottom long (2 used on 8 & 12 ft machine) (4 used on 16 ft machine)
1шт.
118059
RIVET,FH, 3/8" x 9/16"
3/16 X 9/16" SMALL FT-HD SOLID RIVET (1 per lever)
1шт.
10
603498R1
ANGLE
BRACKET, drop bottom lever (5 used on 8 ft machine0 (9 used on 12 ft machine) (10 used on 16 ft machine)
1шт.
508802R1
5/16 X 3/4" CRG BOLT (6 - 8 ft) (12 - 12 & 16 ft)
1шт.
598803R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd
5/16 X 1" CRG BOLT (4 - 8 ft) (6 x 12 ft) (8 - 16 ft)
1шт.
120376
NUT,5/16"-18, G5
(1 per bolt) 5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, (1 per bolt) 5/16"
1шт.
11
603587R1
BAR
STRIP, drop bottom lever bracket backing (2 used on 8 ft machine) (1 used on 12 ft machine) (4 used on 16 ft machine)
1шт.
12
603500R1
LEVER
drop bottom short (3 used on 8 ft machine) (7 used on 12 ft machine) (6 used on 16 ft machine)
1шт.
118059
RIVET,FH, 3/8" x 9/16"
3/16 X 9/16" SMALL FT-HD SOLID RIVET (1 per lever)
1шт.
13
603469R1
BOLT,3/8" - 16 x 3.3", Steel
drop bottom lever short (3 used on 8 ft machine) (7 used on 12 ft machine) (6 used on 16 ft machine)
1шт.
120377
NUT,3/8" - 16, Gr 5
(1 per rod) 3/8"-16, G5
1шт.
14
603456R1
PANEL
GATE, fertilizer (16 used 8 ft machine) (24 used 12 ft machine) (32 used 16 ft machine)
1шт.
142671
SET SCREW
5/16 X 1/2" SQ-HD CUP-PT SET SCREW (1 used per gate)
1шт.
15
607276R2
SUPPORT
BEARING, gate rod (5 used on 8 ft machine) (8 used on 12 ft machine) (10 used on 16 ft machine)
1шт.
598795R1
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
1/4 X 3/4" CRG BOLT (5 - 8 ft) (8 - 12 ft) (10 - 16 ft)
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 X 3/4" CRG BOLT (4 - 8 ft) (8 - 12 ft) (8 - 16 ft)
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
(1 per bolt) 1/4"-20, G5
1шт.
120377
NUT,3/8" - 16, Gr 5
(1 per bolt) 3/8"-16, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, (1 per bolt) 1/4"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , 1 per bolt 3/8"
1шт.
15
602455R1
BRACKET
BEARING, gate rod center (12 ft machine)
1шт.
596795R1
ROD
1/4 X 3/4" CRG BOLT (1 per brg)
1шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 X 3/4" CRG BOLT
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
16
598975R1
STRIP, fertilizer hopper head rain (2 used 8 ft & 12 ft machine; 4 used 16 ft machine) (For used on machines built March, 1969 season & since)
1шт.
598795R1
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
1/4 X 3/4" CRG BOLT (6 used 8 x 12 ft machine) (12 used 16 ft machine)
1шт.
17
598976R1
STRIP, hopper head weather (2 used 8 ft & 12 ft machine; 4 used 16 ft machine) (For use on machines built March, 1969 season & since)
1шт.
598795R1
CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5
1/4 X 3/4" CRG BOLT (6 used 8 & 12 ft machine) (12 used 16 ft machine)
1шт.
Выбрано товаров: 88
