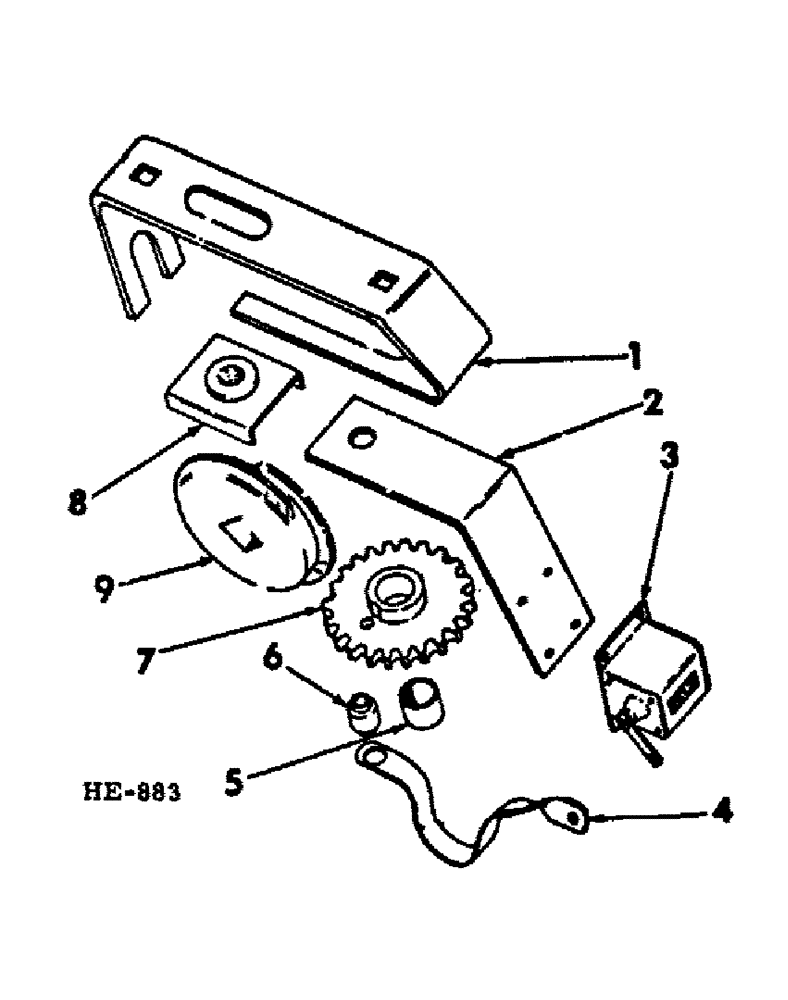

Запчасти Case IH 300 (10-25) - LAND MEASURE

1

596933R1

BRACKET

land measure

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

134238R1

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

596934R1

NUT

5/16" LK-NUT

2шт.

2

596935R1

SUPPORT, land measure counter (For use on machines built prior to March, 1969 season)

1шт.

2

599560R1

BRACKET

SUPPORT, land measure counter (For use on machines built prior to March, 1969 season)

1шт.

3

609535R91

COUNTER

land measure

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

1/8 X 7/16" BRASS B-HD SMALL RIVET

4шт.

4

609536R1

SPRING

land measure counter (For use on machines built prior to March, 1969 season)

1шт.

4

598970R1

SPRING

land measure counter (For use on machines built March, 1969 season & since)

1шт.

17058R1

3/8 X 3/32" C-PIN

1шт.

5

599705R1

SPACER

land measure gear

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT

1шт.

611346R1

WASHER

13/32 X 7/8 X 16 GA WASHER

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

609534R2

SPACER

counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

NO. 10 X 1-1/4" SLT-RD-HD SCREW

1шт.

607893R1

WASHER

13/64 X 1/2 X 16 GA WASHER

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

7

596942R1

GEAR

35T (12 ft) (w/idenification plate 300C1111 or 300C1112)

1шт.

7

596941R1

GEAR

28T (8 ft & 16 ft) (w/identification plate 300C1111 or 300C112)

1шт.

7

815185C1

GEAR

34T (12 ft) (w/identification plate 300C1113)

1шт.

7

815183C1

GEAR

26T (16 ft) (w/identification plate 300C1113)

1шт.

8

596936R1

SUPPORT

land measure gear

1шт.

9

604420R1

GEAR

WORM, land measure gear (w/identification plate 300C1113)

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
