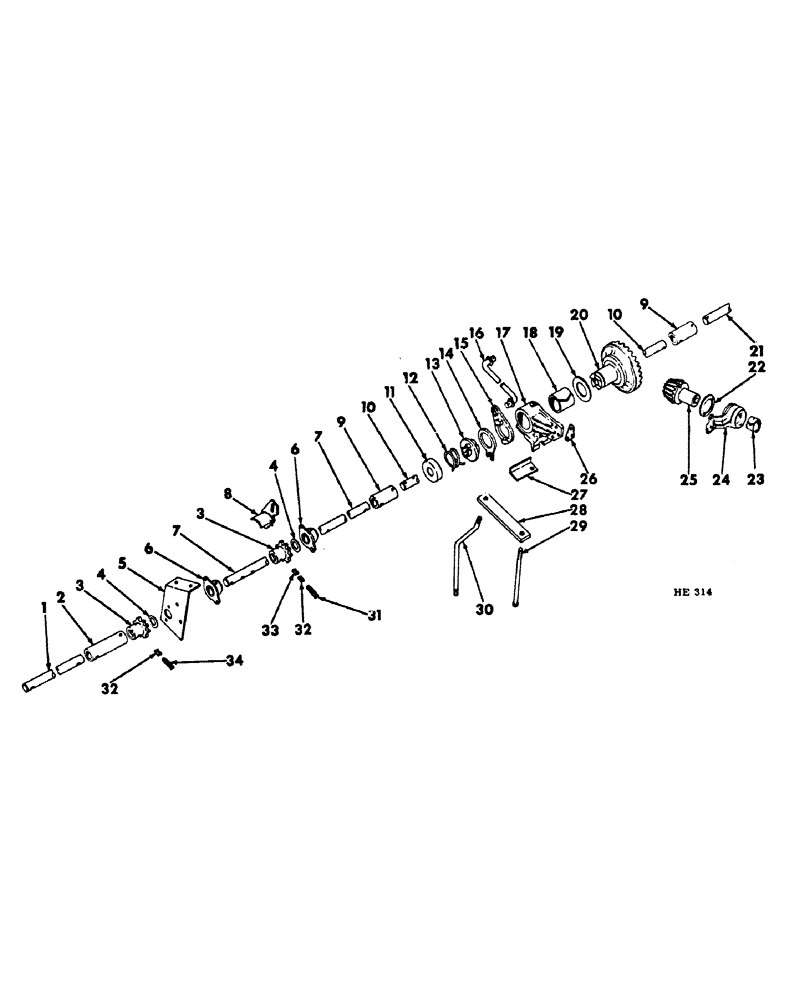

Запчасти Case IH 300 (10-24) - GRAIN DRIVE CLUTCH

1

598090R1

SHAFT, 21.2" long main drive front (8 ft)

1шт.

1

596944R1

SHAFT, 28.2" long main drive front (12 ft)

1шт.

1

596946R1

SHAFT, 55.2" long main drive front (16 ft)

1шт.

2

596949R1

COUPLING, main drive shaft (16 ft machine)

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

3/8 X 1-3/4" STD-HD-DLD PIN

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

3

596952R1

SPROCKET ASSY.

SPROCKET, 8T grain & fertilizer drive (2 used 8 ft; 4 used 12 & 16 ft machine)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (1 per socket) 1/4"-28 NPT x .54" lg

1шт.

379990R1

HEADED PIN

3/8 X 2" STD-HD-DLD PIN (1 per sprocket)

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Fertilizer sprocket 1/4" x 1 1/2"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per sprocket 1/8" x 3/4"

1шт.

4

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga (Fertilizer sprocket only)

1шт.

5

596939R1

SUPPORT, drive shaft hanger (1 used 8 ft; 2 used 12 & 16 ft machine)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (2 per support)

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

6

596943R91

BUSHING

BEARING, main drive shaft (2 used 8 ft; 4 used 12 ft; 6 used ft machine)

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(1 per brg) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 X 7/8" BOLT (1 per brg)

1шт.

97865H

WASHER

9/32 X 7/8 X 16 GA WASHER

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

(1 per bolt) 1/4"-20, G5

1шт.

7

596947R1

SHAFT, main drive intermediate (16 ft machine)

1шт.

8

596954R1

TIGHTENER, grain drive chain (1 used 8 ft; 2 used 12 & 16 ft machine)

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

3/8 X 1" CRG BOLT (2 per tightener)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

9

596951R1

COUPLING

main drive clutch shaft (1 used 8 ft; 2 used 12 & 16 ft machine)

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

3/8 X 1-3/4" STD-HD-DLD PIN (2 per coupling)

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 1 per pin 1/8" x 3/4"

1шт.

10

596950R1

SHAFT, main drive clutch (1.3" long)

1шт.

11

619613R1

RETAINER

main drive clutch spg

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

12

868111R1

SPRING, main drive cluch

1шт.

13

596968R1

CLUTCH

main drive

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

14

596967R1

PLATE, main drive clutch

1шт.

15

596966R1

CAM, main drive clutch

1шт.

16

596969R1

ROD, clutch connecting

1шт.

21471R1

WASHER

21/32 X 1 X 11 GA WASHER

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

17

596955R11

SUPPORT, main drive clutch (Includes 1 - 596956R1, bushing)

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8" - 90 DEGREE ELBOW LUB-FITTING

1шт.

18

596956R1

BUSHING, clutch support

1шт.

19

596965R1

WASHER, clutch bevel gear thrust

1шт.

20

596964R1

GEAR

33T clutch bevel

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

609836R1

WASHER

1-1/32 X 1-3/4 X 16 GA WASHER

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21

596945R1

SHAFT

26.8" long main drive rear (12 ft)

1шт.

21

596948R1

SHAFT, 26.2" long main drive rear (16 ft)

1шт.

22

596962R2

THRUST WASHER

clutch pinion gear thrust

2шт.

23

596961R1

BUSHING

pinion gear bracket

1шт.

24

596960R11

BRACKET, clutch pinion gear (Includes 1 - 596961R1, bushing)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

25

596963R1

GEAR

14T clutch pinion

1шт.

26

598972R1

SHIM, pinion gear bracket (For use on machines built March, 1969 season & since)

1шт.

27

596957R1

ANGLE, clutch cam plate

1шт.

28

596958R1

BAR, clutch support clamping

1шт.

29

21470R1

BOLT,1/2" x 10", Gr 5

1/2 x 10" clamping bar

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

30

596959R1

ROD, clutch support clamping bar rear

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

31

CHAIN, grain drive 1" standard pitch roller (1 required for 8 ft machine) (2 required for 12 ft, 16 ft machine) (For service order 1 - 569088R91, 10 ft. chain, reduce to 19 links, assy 2 - 457114R91, offset links and 1 - 457113R91, connecting link)

1шт.

32

457114R91

CHAIN LINK

LINK, drive chain offset

4шт.

33

457113R91

CHAIN LINK

LINK, drive chain connecting

2шт.

34

CHAIN, fertilizer drive 1" standard pitch roller (for service order 1 - 569088R91, 10 ft. chain, reduce to 25 links, add 1 - 457114R91, offset link and 1 - 457113R91, connecting link)

1шт.
