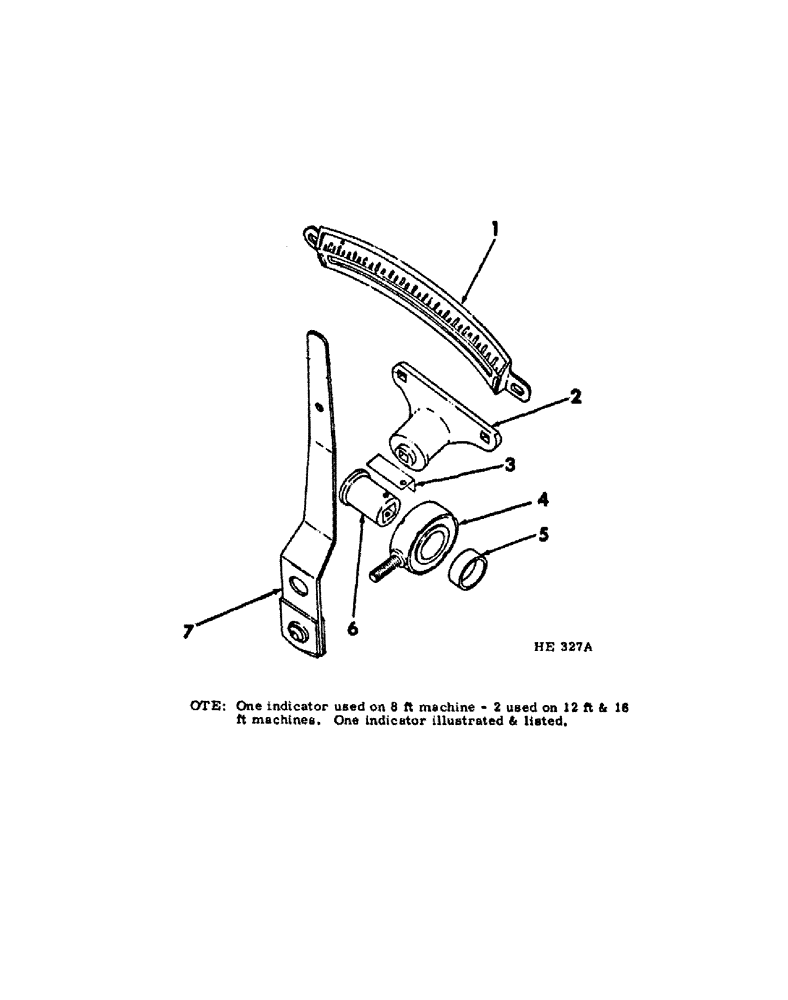

Запчасти Case IH 300 (10-23) - GRAIN FEED INDICATOR

1

596907R1

INDICATOR

grain feed

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

5/16 X 3/4" CRG BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

596910R1

BRACKET, shifter lever

1шт.

19006R1

PLOW BOLT,#3, 5/16" - 18 x 3/4", Gr 2

5/16 X 3/4" NO. 3 PLOW BOLT

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

134238R1

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

120376

NUT,5/16"-18, G5

2шт.

NLS

NO LONGER SERVICED

5/16" JAM NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

816573C1

SHIM

feed shifter lever

1шт.

4

609384R91

THRUST BEARING

feed shifter (Includes 1 - 609388R1, spacer)

1шт.

469668R1

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

609389R1

SPACER

shifter brg

1шт.

6

609388R1

SPACER

brg

1шт.

7

596908R2

LEVER, grain feed shaft shifter

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

5/16 X 1" CRG BOLT

1шт.

619855R1

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

7500032

BUSHING

5/16" WING NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
