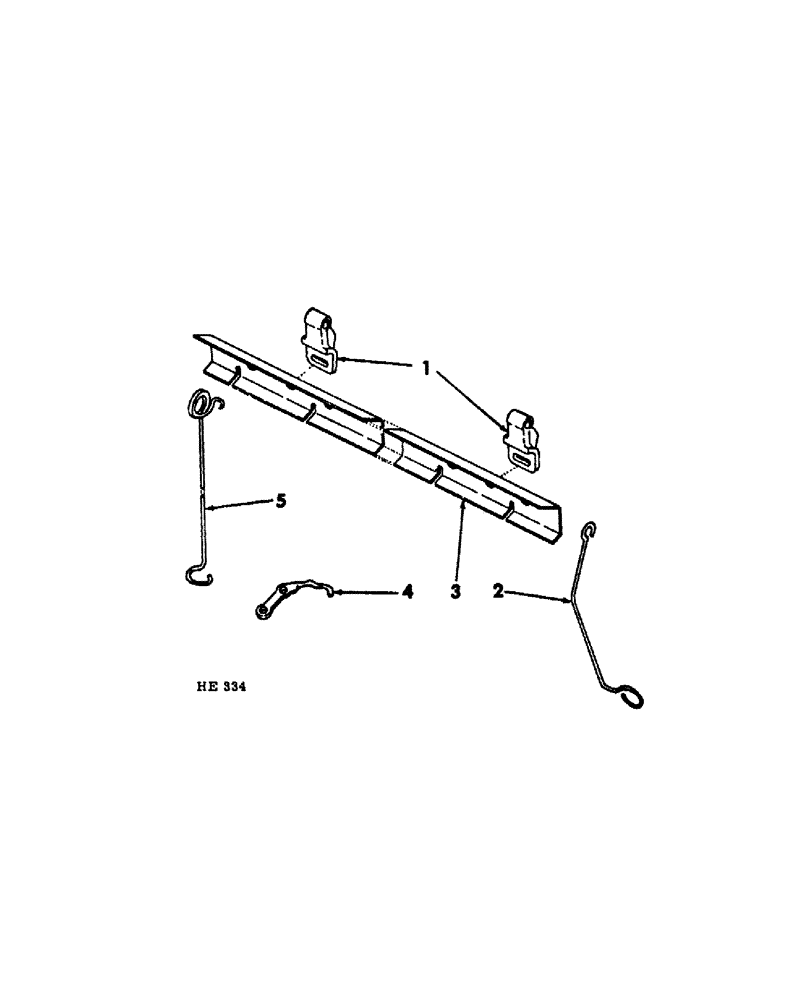

Запчасти Case IH 300 (10-23[A]) - GRAIN SEEDING TUBE HOLDER

1

596927R1

BRACKET

tube holder channel (4 used 8 ft; 6 used 12 ft; 8 used 16 ft machine)

1шт.

C351

AXLE PIN

1/2 X 2-3/8" STD-HD-DLD PIN (1 per bracket)

1шт.

432-1216

COTTER PIN,3/16" x 1"

1/8 X 3/4" C-PIN (1 per pin)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 X 1-1/4" BOLT (1 per bracket)

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

(1 per bolt) Jam, 3/8"-16, G5

1шт.

2

604978R1

HOLDER

grain tube front

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

467750R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

596928R1

CHANNEL

tube holder front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

596929R1

CHANNEL

tube holder center

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT

2шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

596930R1

CHANNEL, tube holder rear (1 used 12 ft; 2 used 16 ft machine)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (2 per channel)

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER (1 per bolt)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.

4

596932R2

GUIDE,0.375" Diameter, 2.6, 1.9" Length

grain tube (4 used 8 ft; 6 used 12 ft; 8 used 16 ft machine)

1шт.

5

596931R2

HOLDER

grain tube (11 used 8 ft; 17 used 12 ft; 23 used 16 ft machine)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 X 1" BOLT (1 per holder)

1шт.

619856R1

WASHER

13/32 X 1 X 16 GA WASHER (1 per bolt)

1шт.

120377

NUT,3/8" - 16, Gr 5

(1 per bolt) 3/8"-16, G5

1шт.
